Whitey

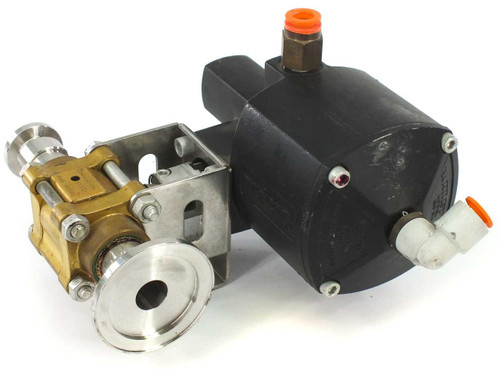

Swagelok 133DA Pneumatic Double-Acting 90° Actuator B-63TUVF8R Brass Valve

Whitey

SKU:

44078

Availability:

Usually ships within 1-2 business days.

Weight:

12.00 LBS

Brand:

Swagelok

Model:

133DA

MPN:

B-63TUVF8R

Secondary Model:

B-63TUVF8RT

SKU:

44078

Type:

Pneumatic Double-Acting Quarter-Turn Actuator with Ball Valve

Valve Model:

B-63TUVF8R / B-63TUVF8RT

Valve Material:

Brass

Actuator Action:

Double-Acting

Rotation:

90°

Maximum Pressure:

200 PSI

Flange 1 OD:

2-1/8 in

Flange 1 ID:

9/16 in

Flange 2 OD:

1-3/16 in

Flange 2 ID:

9/16 in

Overall Dimensions:

9 in x 8 in x 8 in

Mounting:

Custom stainless steel base plate (included)

Actuator Drive Medium:

Pneumatic (compressed air)

Inlet Connection:

Push-to-connect pneumatic fittings (orange)

End Connections:

Sanitary tri-clamp / flange

Country/Region of Manufacture:

United States

Seller Notes:

Includes Swagelok B-63TUVF8RT valve and custom stainless steel base plate

Condition Notes:

Swagelok 133DA pneumatic actuator w/ B-63TUVF8R valve tested with compressed air — rotates 90° in both directions. In good working condition. Normal wear. Includes custom stainless base plate.
