Superior Electric
-
Superior Electric Powerstat Type 20 Variable Transformer 115V 0-130V 3A Variac
Superior Electric
$120.00Was: $250.00Superior Electric Powerstat Type 20 Variable Transformer 115V 0-130V 3A VariacA single-phase variable autotransformer that accepts 115V AC input and provides continuously adjustable output from...47613- SKU:
- 47613
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Superior Electric
- Model:
- Type 20
- MPN:
- Type 20
- Type:
- Variable Autotransformer (Variac)
- SKU:
- 47613
- Primary Voltage:
- 115V AC
- Secondary Voltage:
- 0-130V AC
- Output Current (Max):
- 3A
- Frequency:
- 60 Hz
- Phase:
- Single Phase
- Form Factor:
- Benchtop
- Control Type:
- Manual Rotary Dial
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; no additional accessories included.
- Condition Notes:
- Superior Electric Powerstat Type 20 variac in good used condition. Housing shows paint flaking and surface wear typical of age. Dial and scale intact. Not powered at our facility; pulled from working environment. Please contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$120.00Was: $250.00 -

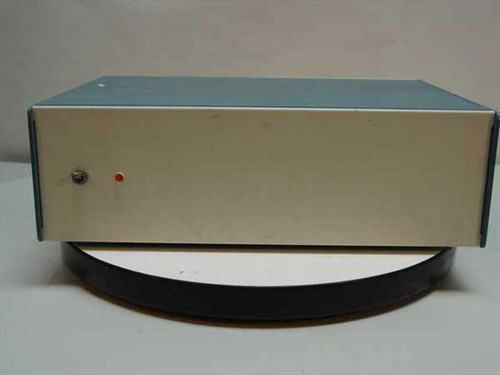

Superior Electric Modulynx DRD001 Dual 20W Stepper Drive Controller For Parts
Superior Electric
$60.00Was: $125.00Superior Electric Modulynx DRD001 Dual 20W Stepper Drive Controller For PartsCustom-built dual stepper motor drive controller housed in a benchtop enclosure. Contains two Modulynx 20W drive boards...17994- SKU:
- 17994
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 25.00 LBS
- Brand:
- Superior Electric
- Model:
- DRD001
- MPN:
- DRD001
- Type:
- Dual Stepper Motor Drive Controller
- SKU:
- 17994
- Number of Drives:
- 2
- Drive Power Rating:
- 20W per drive (Modulynx 20W Drive)
- Configuration:
- Custom-built dual-drive enclosure
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Custom enclosure with two Modulynx 20W drive boards; sold as-is for parts
- Form Factor:
- Benchtop / Custom Enclosure
- Rear Connectors:

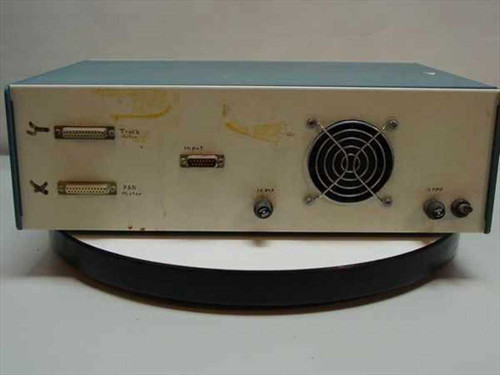

- 2x DB25-style (Track, PAN), 1x DB9 Input, AC mains
- Cooling:
- Internal fan (rear-mounted)
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Superior Electric Modulynx DRD001 dual stepper drive controller sold as-is for parts or repair. Not tested or guaranteed functional. Both Modulynx 20W drive boards, transformer, caps, and resistors present. Please review photos.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$60.00Was: $125.00 -
Superior Electric SLO-SYN M063-FC06 Synchronous Stepping Motor 100 oz-in 200
Superior Electric
$45.00Was: $90.00Superior Electric SLO-SYN M063-FC06 Synchronous Stepping Motor 100 oz-in 200 StepsA synchronous stepping motor designed for controlled positioning and motion applications. Delivers 100 oz-in of...39920- SKU:
- 39920
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Superior Electric
- Model:
- M063-FC06
- MPN:
- M063-FC06
- Secondary Model:
- BM101025
- Type:
- Synchronous Stepping Motor
- SKU:
- 39920
- Series:
- SLO-SYN
- Torque:
- 100 oz-in
- Steps Per Revolution:
- 200
- Voltage:
- 3.36V DC
- Current Rating:
- 2.9A
- Frequency:
- 60 Hz
- Duty Cycle:
- Continuous Duty
- Insulation Class:
- Class B
- Temperature Rise:
- 65°C Rise
- Shaft Diameter:
- 4mm
- Shaft Length:
- 14mm
- Connector Type:
- 6-pin Molex-style connector
- Spec Number:
- BM101025
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes attached 6-pin wiring harness with connector.
- Condition Notes:
- Superior Electric SLO-SYN M063-FC06 stepping motor. Inspected and in good used condition. Housing has light surface marks typical of use. Shaft intact, nameplate legible, 6-pin wiring harness included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$45.00Was: $90.00 -
Superior Electric Slo-Syn 430-PTO Oscillator Motor Drive 115V 1.5A 50/60Hz
Superior Electric
$100.00Was: $300.00Superior Electric Slo-Syn 430-PTO Oscillator Motor Drive 115V 1.5A 50/60Hz Single-phase stepper motor oscillator drive from Superior Electric's Slo-Syn series. Operates on 115V AC, 50/60Hz with 1.5A...48412- SKU:
- 48412
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Superior Electric
- Model:
- 430-PTO
- MPN:
- 430-PTO
- SKU:
- 48412
- Condition:
- Used – Inspected
- Seller Notes:
- Unit only; no accessories included.
- Form Factor:
- Benchtop / Stand-Alone Module
- Country of Manufacture:
- USA
- Power Requirements:
- 115V AC, 1.5A, 50/60Hz
- Voltage Rating:
- 115V AC
- Current Rating:
- 1.5A
- Frequency:
- 50/60Hz
- Phase:
- Single Phase
- Drive Type:
- Oscillator Motor Drive (Stepper)
- Series:
- Slo-Syn
- Interface / Connector:
- DB-15 I/O, 8-pin circular, screw-terminal AC input
- Switch Configuration:
- DIP switch S1 (6-position): BASE, HIGH, DCC, ACC settings
- Indicators:
- PWR ON LED, FUSE indicator
- Cooling:
- Finned heatsink chassis
- Condition Notes:
- This Superior Electric Slo-Syn 430-PTO Oscillator Motor Drive has been inspected and appears to be in good cosmetic condition. The unit shows normal wear consistent with lab use; the heatsink chassis, front-panel connectors, and DIP switch array are
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$100.00Was: $300.00
