Pomona Electronics
-
Pomona Electronics 3.75 MHz Band Pass Filter Mountable BNC In/Out 20dB
Pomona Electronics

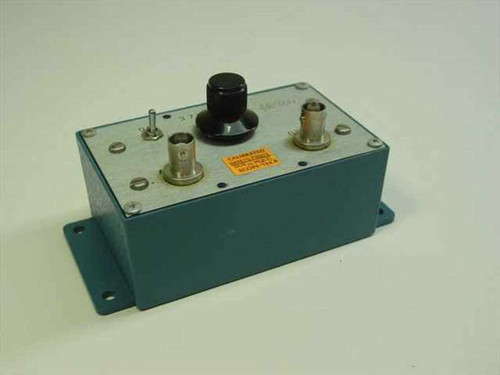

$75.00Was: $150.00Pomona Electronics 3.75 MHz Band Pass Filter Mountable BNC In/Out 20dBThis Pomona Electronics band pass filter is centered at 3.75 MHz and is housed in a compact, mountable aluminum enclosure. It...32973- SKU:
- 32973
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Pomona Electronics
- Model:
- 3.75 MHz Band Pass Filter
- Type:
- Band Pass Filter
- Center Frequency:
- 3.75 MHz (peaks at 3.79 MHz)
- Insertion Loss:
- 20.2 dB
- Q Factor:
- 26.6
- -3 dB Bandwidth:
- 3.716 MHz to 3.858 MHz
- -20 dB Limits:
- 3.53 MHz to 4.09 MHz
- Attenuation Range:
- Additional 15 dB via volume control
- Connector Type:
- BNC (IN and OUT)
- Form Factor:
- Mountable enclosure with mounting flanges
- Calibrated By:
- Scope-Teka
- SKU:
- 32973
- Condition:
- Used – Inspected, good condition
- Seller Notes:
- Calibration sticker present (Scope-Teka). Unit only — no accessories included.
- Condition Notes:
- Pomona Electronics 3.75 MHz band pass filter. Inspected and in good used condition. Enclosure intact with light surface wear. BNC connectors and rotary control present and undamaged. Scope-Teka calibration sticker on front panel.
$75.00Was: $150.00 -

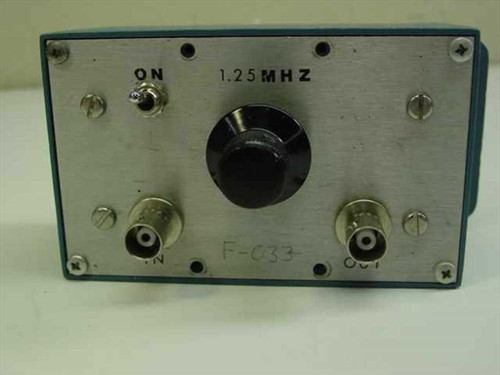

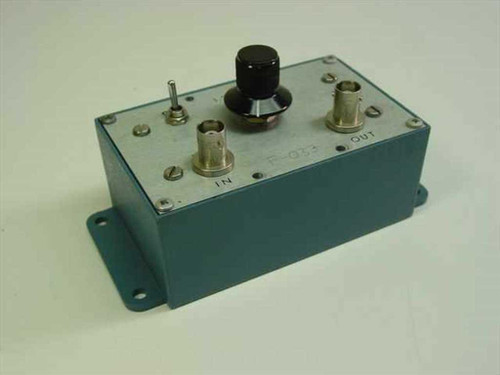

Pomona Electronics 1.25 MHz Band Pass Filter BNC In/Out F-033 RF Signal
Pomona Electronics
$75.00Was: $150.00Pomona Electronics 1.25 MHz Band Pass Filter BNC In/Out F-033 RF SignalBenchtop band pass filter designed to isolate and pass RF signals at 1.25 MHz while attenuating out-of-band frequencies...32970- SKU:
- 32970
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Pomona Electronics
- Model:
- F-033
- MPN:
- F-033
- Type:
- Band Pass Filter
- SKU:
- 32970
- Center Frequency:
- 1.25 MHz (peak at 1.265 MHz)
- Insertion Loss:
- 21.8 dB
- -3 dB Bandwidth:
- 1.24 MHz to 1.28 MHz
- -20 dB Limits:
- 1.18 MHz to 1.36 MHz
- Connector Type:
- BNC (IN and OUT)
- Number of Ports:
- 2 (1x IN, 1x OUT)
- Form Factor:
- Benchtop / Panel-Mount Box
- On/Off Switch:
- Yes — toggle switch on front panel
- Enclosure:
- Metal box with mounting flanges
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Unit only — no additional accessories included
- Condition Notes:
- Pomona Electronics F-033 1.25 MHz Band Pass Filter. Inspected and in good condition. Metal enclosure shows light surface wear; BNC connectors and toggle switch appear clean and undamaged.
$75.00Was: $150.00
