ICS Electronics

ICS Electronics 4835 Serial IEEE 488 GPIB Bus Controller RS-232 RS-449 115VAC

ICS Electronics

SKU:

36100

Availability:

Usually ships within 1–2 business days.

Weight:

12.00 LBS

Brand:

ICS

Model:

4835

MPN:

4835

Type:

Serial to IEEE 488 GPIB Bus Controller

SKU:

36100

Interface Type:

RS-232, RS-449, IEEE 488 (GPIB/HPIB)

Serial Interface:

RS-232 (J2-CPU, J4-TERM), RS-449 (J3-CPU, J5-TERM)

Bus Interface:

IEEE 488 / GPIB / HPIB (J1)

IEEE 488 Connector:

J1 — 24-pin GPIB (AH1, SH1, C1,2,3,4,25, E1)

Power Requirements:

100/115/200/230 VAC, 50/60 Hz

Fuse Rating 100VAC:

1/2A 3AG

Fuse Rating 115VAC:

1/2A 3AG

Fuse Rating 200VAC:

1/4A 3AG

Fuse Rating 230VAC:

1/4A 5x20 MM

Form Factor:

Benchtop / Desktop

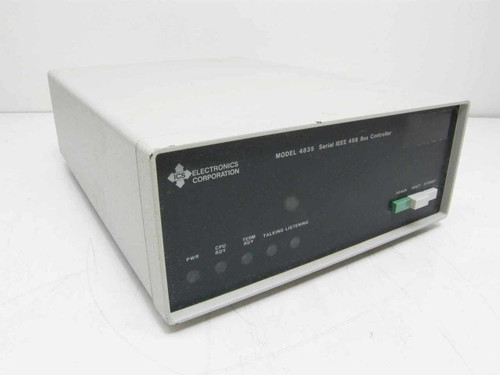

Front Panel Indicators:

PWR, CPU RDY, TERM RDY, TALKING, LISTENING

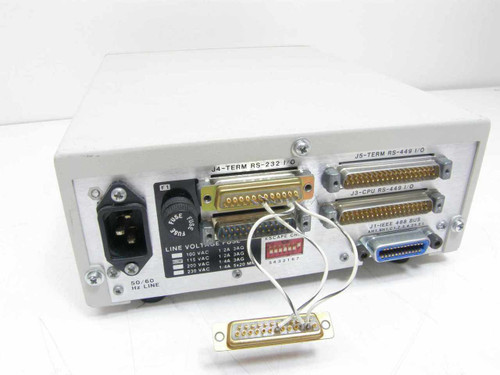

Connector J2:

CPU RS-232 I/O (DB-25)

Connector J4:

TERM RS-232 I/O (DB-25)

Connector J3:

CPU RS-449 I/O (DB-37)

Connector J5:

TERM RS-449 I/O (DB-37)

Condition:

Used – Pulled from Working Environment

Seller Notes:

Unit only; includes loose DB-25 connector shown in photos.

Country/Region of Manufacture:

United States

Condition Notes:

ICS Electronics 4835 Serial IEEE 488 GPIB Bus Controller. Inspected, in good used condition. Pulled from a working environment where it was in active use and functional. Light surface wear on chassis. Loose DB-25 connector included.
