Bourns 3400 Series 3400S-20-502 Precision Potentiometer 5K Ohm 20-Turn ±3% LIN

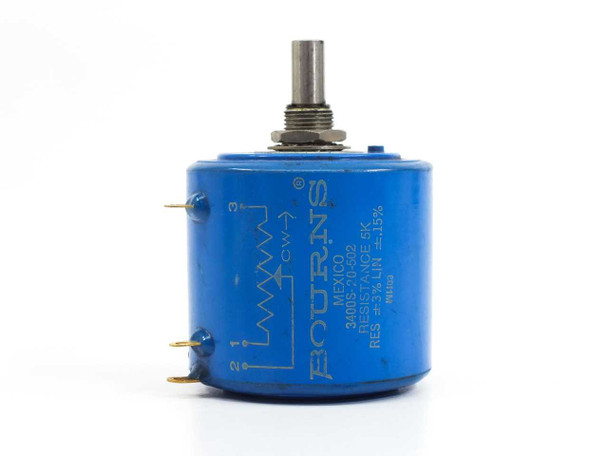

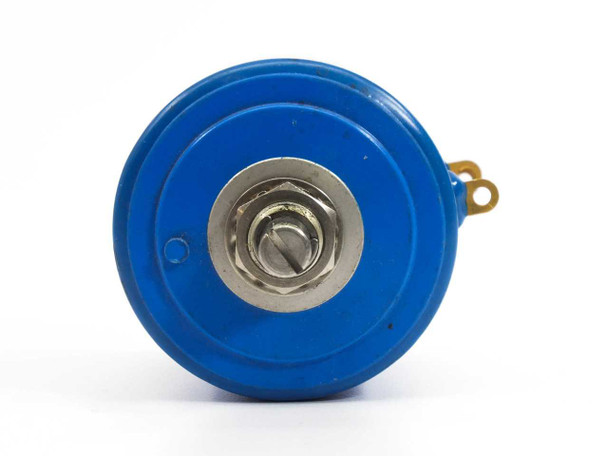

The Bourns 3400S-20-502 is a 20-turn wirewound precision potentiometer from Bourns' 3400 Series, offering a 5K ohm (5000 ohm) resistance range with tight ±3% resistance tolerance and ±0.15% linearity. The multi-turn design distributes the full resistance range across 20 complete shaft rotations, providing much finer resolution and more precise position or voltage-divider control than a single-turn type. It features a 6 mm diameter, 12 mm long shaft and three solder-lug/PCB pin terminals, and is housed in a compact blue cylindrical body with an end-mounted slotted adjustment screw. Made in Mexico.
Specifications & What's Included
- Manufacturer: Bourns
- Series: 3400
- Part Number: 3400S-20-502
- Resistance: 5K ohm (5000 ohm)
- Number of Turns: 20
- Resistance Tolerance: ±3%
- Linearity: ±0.15%
- Taper: Linear
- Shaft Diameter: 6 mm
- Shaft Length: 12 mm
- Number of Terminals: 3 (solder-lug / PCB pin)

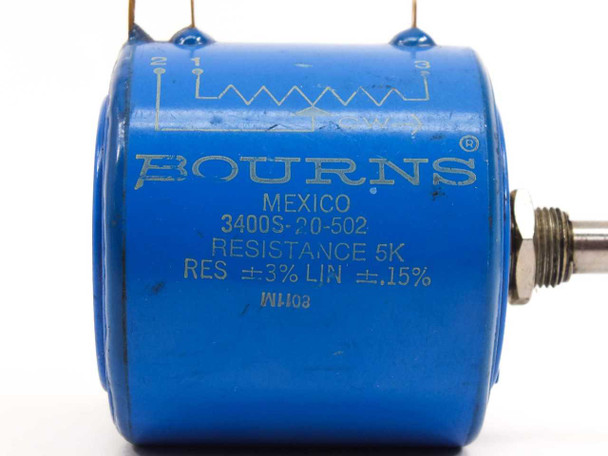

- Country of Manufacture: Mexico (per label)
- Date Code: M103
- Includes: Potentiometer only — no mounting hardware or panel accessories
Applications
The Bourns 3400 Series is a long-established line of multi-turn precision potentiometers widely used in instrumentation, industrial controls, servo systems, and calibration equipment. The 20-turn configuration makes this type especially suited to applications requiring fine, repeatable adjustment — such as setpoint controls on process instruments, feedback elements in servo and motion-control loops, calibration trimmers on test equipment, and precision voltage-divider networks in analog circuits. These potentiometers are a staple of both original equipment manufacturing and field repair/calibration work across aerospace, industrial automation, and electronic test industries, and remain in active production and use today.

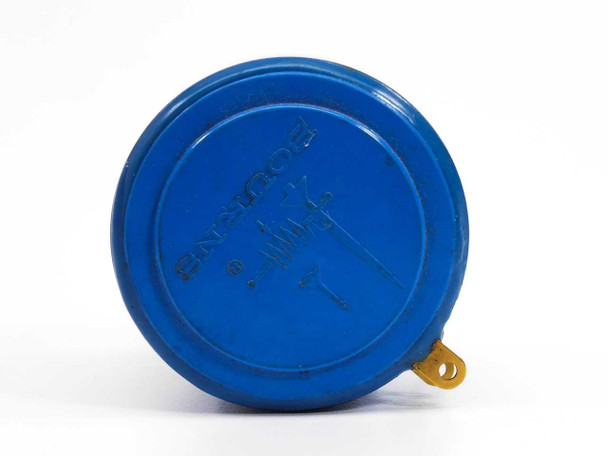

This Bourns 3400S-20-502 precision 20-turn potentiometer has been inspected and is in good used condition. The blue housing is intact with normal handling wear and minor scuffing consistent with previous use. The shaft, bushing, and three solder-lug terminals are all present and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Bourns |
Model: |
3400S-20-502 |
MPN: |
3400S-20-502 |
SKU: |
49126 |
Type: |
Precision Multiturn Potentiometer |
Series: |
3400 |
Resistance Value: |
5K Ohm (5000 Ohm) |
Resistance Tolerance: |
±3% |
Linearity: |
±0.15% |
Number of Turns: |
20 |
Taper / Law: |
Linear |
Shaft Diameter: |
6 mm |
Shaft Length: |
12 mm |
Number of Terminals: |
3 |
Terminal Type: |
PCB Pin / Solder Lug |
Country/Region of Manufacture: |
Mexico |
Seller Notes: |
Potentiometer only — no mounting hardware or panel accessories included. |
Condition Notes: |
This Bourns 3400S-20-502 precision 20-turn potentiometer has been inspected and is in good used condition. Housing shows minor scuffing; shaft, bushing, and terminals intact. Please contact us with any questions. |
