Bodine Electric NSH-33R Series 400 Control Gearmotor 1/20 HP 115V DC Right Angle

Bodine Electric NSH-33R Series 400 Control Gearmotor 1/20 HP 115V DC Right Angle

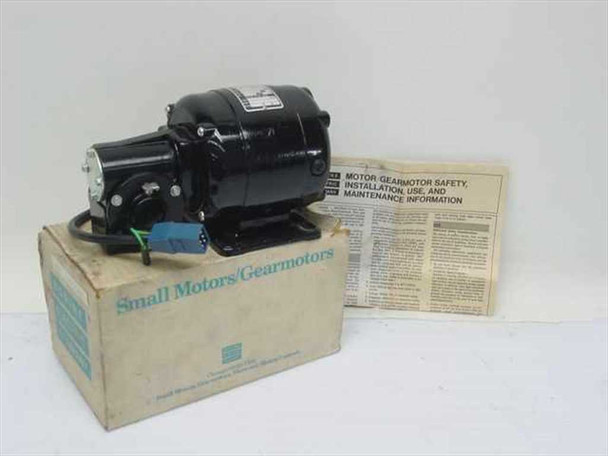

The Bodine Electric NSH-33R is a fractional horsepower DC gearmotor from the Series 400 Control Motor line, built by Bodine Electric Company of Chicago, Illinois. It combines a 115V DC motor with an integrated right angle gearhead, delivering controlled shaft rotation in a compact, foot-mounted package. This unit is new in its original box and has not been installed or used.

Specifications & What's Included

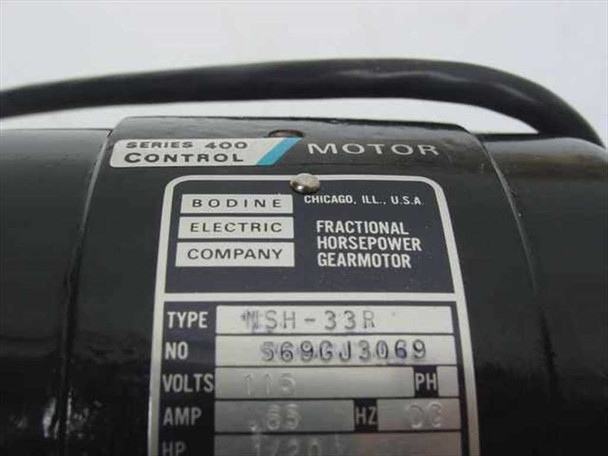

• Manufacturer: Bodine Electric Company, Chicago, IL, U.S.A.
• Model/Type: NSH-33R
• Series: 400 Control Motor
• Classification: Fractional Horsepower Gearmotor
• Horsepower: 1/20 HP
• Motor Speed: 1725 RPM
• Torque: 20.0 oz-in
• Input Voltage: 115V
• Current Draw: 0.65 A
• Motor Type: DC
• Drive Configuration: Right Angle Gearhead with output shaft
• Mounting: Base/foot mount
• Lead connector: Multi-pin connector on motor leads
• Includes: Original Bodine "Small Motors/Gearmotors" box and safety, installation, use, and maintenance information sheet

Applications

Bodine Electric Series 400 Control gearmotors are used in light industrial automation, instrumentation, and equipment drive applications where precise, low-speed DC shaft output is needed in a compact form factor. The right angle gearhead configuration is well suited for space-constrained assemblies where the output shaft must run perpendicular to the motor axis — common in conveyor drives, positioning equipment, medical devices, packaging machinery, and laboratory instruments. Bodine Electric has manufactured fractional horsepower gearmotors since the early 1900s and the Series 400 line is a recognized standard for OEM and replacement use in small-machine applications. DC input makes these motors compatible with variable-speed drives and simple voltage-control speed regulation.
