Description
Blonder Tongue AP60-550 Agile Processor AP Series CATV Headend 1U Rackmount
The AP60-550 is an agile processor designed for CATV headend systems. It processes IF and RF signals with selectable input and output channels, supporting multiple modulation and broadcast standards.
Specifications & What's Included
- Model: AP60-550 (MPN: AP60-550, Secondary Model: 59815)

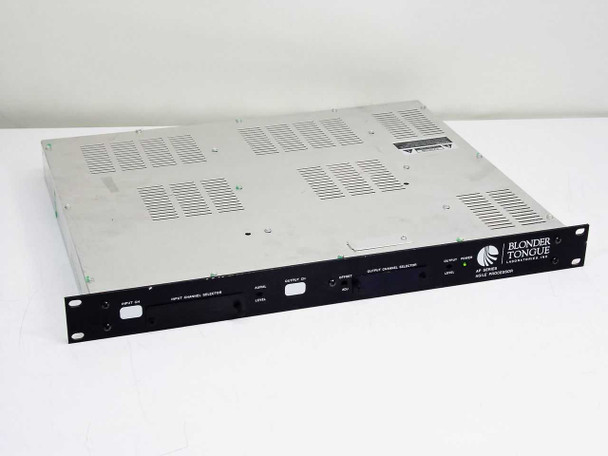

- Form Factor: 1U rackmount
- Power: 117V, 0.2A, 60Hz; Fuse: 3/8A SB, 250V
- Inputs: IF IN, RF IN
- Outputs: IF OUT, RF OUT

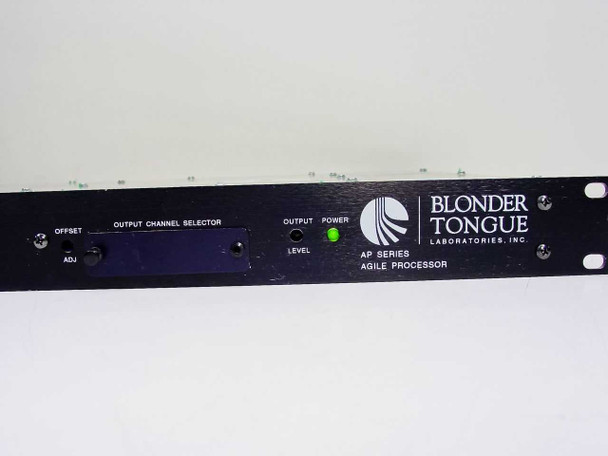

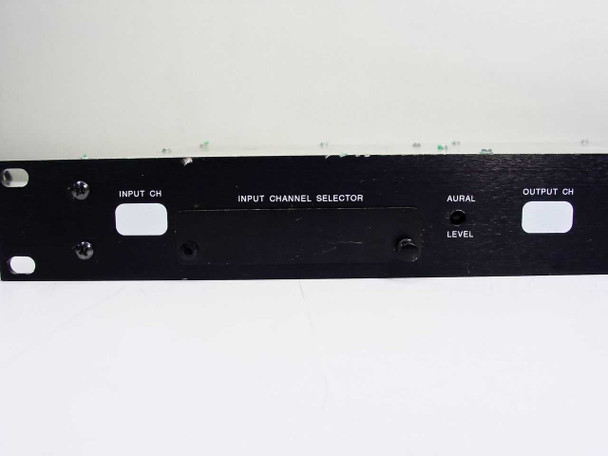

- Front Controls: Input Channel Selector, Output Channel Selector, Aural Level, Offset Adjustment
- Front Indicators: Output Level, Power LED

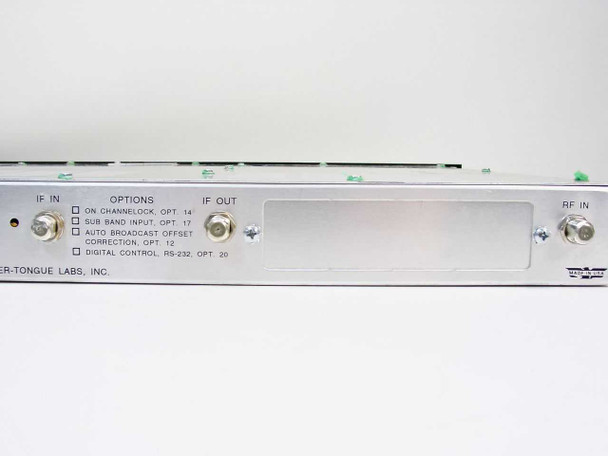

- Optional Features: On Channel Lock (Opt 14), Sub Band Input (Opt 17), Auto Broadcast Offset Correction (Opt 12), Digital Control RS-232 (Opt 20)
- UL Listed; manufactured in the United States
Applications
Agile processors are used in cable television headend facilities to convert and process video and audio signals across multiple channels. These units enable signal conditioning and format conversion for broadcast distribution over CATV networks. The AP60-550 was commonly deployed in mid-range headend systems requiring flexible channel selection and signal processing capabilities.
Condition: For Parts or Not Working

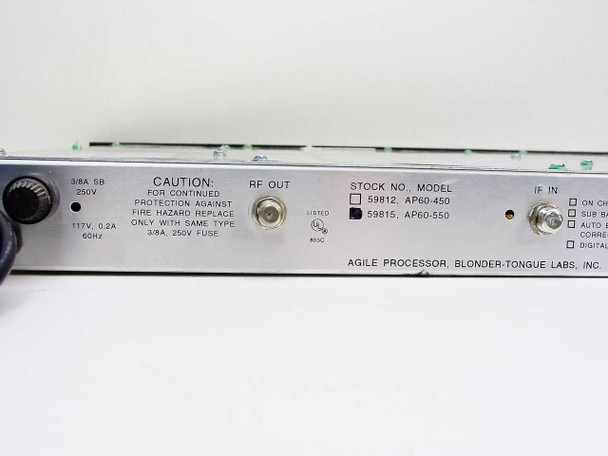

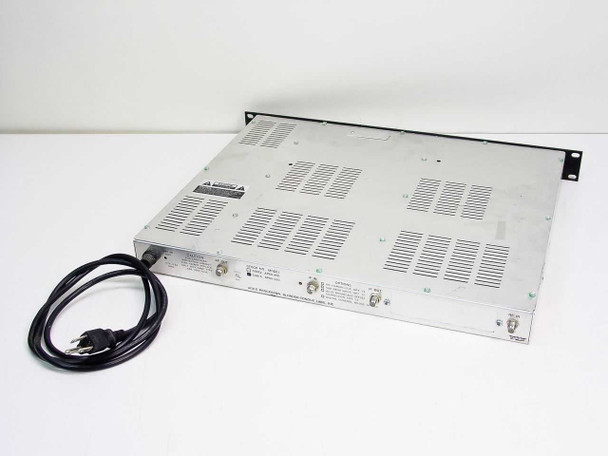

This Blonder Tongue AP60-550 AP Series Agile Processor is being sold as-is for parts or repair. The power LED appears illuminated in the photos, but no functional testing has been performed and no functionality is guaranteed. The unit is in fair cosmetic condition with some wear to the chassis and vented top cover consistent with rack use. The front panel controls — including the input and output channel selectors, aural level pot, and offset adjustment — are present and intact. Rear panel connectors (IF IN, IF OUT, RF IN, RF OUT) and the AC power cord are present. The condition label on the rear panel confirms model AP60-550, Stock No. 59815. This unit is sold strictly as-is with no warranty of functionality. Please view our photo set and contact us if you have any questions.
This Blonder Tongue AP60-550 AP Series Agile Processor is being sold as-is for parts or repair. The power LED appears illuminated in the photos, but no functional testing has been performed and no functionality is guaranteed. The unit is in fair cosmetic condition with some wear to the chassis and vented top cover consistent with rack use. The front panel controls — including the input and output channel selectors, aural level pot, and offset adjustment — are present and intact. Rear panel connectors (IF IN, IF OUT, RF IN, RF OUT) and the AC power cord are present. The condition label on the rear panel confirms model AP60-550, Stock No. 59815. This unit is sold strictly as-is with no warranty of functionality. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Blonder Tongue |
Model: |
AP60-550 |
MPN: |
AP60-550 |
Secondary Model: |
59815 |
SKU: |
37054 |
Type: |
Agile Processor |
Series: |
AP Series |
Application: |
CATV Headend |
Form Factor: |
1U Rackmount |
Power Requirements: |
117V, 0.2A, 60Hz |
Fuse: |
3/8A SB, 250V |
Input: |
IF IN, RF IN |
Output: |
IF OUT, RF OUT |
Front Panel Controls: |
Input Channel Selector, Output Channel Selector, Aural Level, Offset Adj |
Front Panel Indicators: |
Output Level, Power LED |
Options Listed: |
On Channel Lock (Opt 14), Sub Band Input (Opt 17), Auto Broadcast Offset Correction (Opt 12), Digital Control RS-232 (Opt 20) |
Certifications: |
UL Listed |
Condition: |
As-Is / For Parts or Not Working |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Sold as-is for parts or repair. Unit powers on (power LED visible in photos). No functionality guaranteed. |
Condition Notes: |
Blonder Tongue AP60-550 Agile Processor sold as-is for parts or repair. No functional testing performed; no functionality guaranteed. Power LED appears lit in photos. Fair cosmetic condition. All connectors and front panel controls present. |
