Black Box

Black Box MX330A-D 3174/3274 I-MUX Fiber Optic Copper 4-Port 100-120VAC BNC

(No reviews yet) Write a Review
SKU:
7257
MPN:
MX330A-D
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

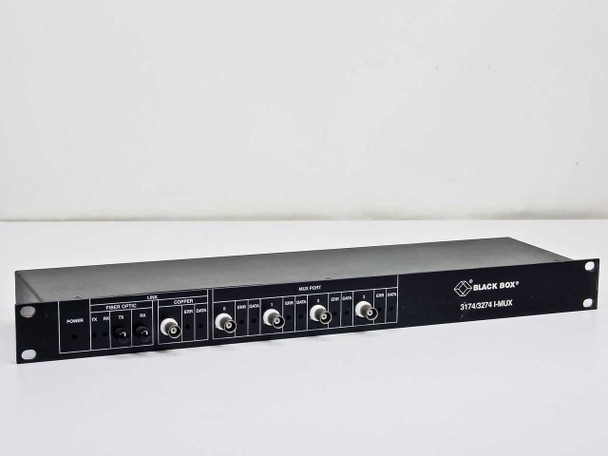

  • Black Box MX330A-D 3174/3274 I-MUX Fiber Optic Multiplexer – front panel angled view showing rackmount chassis

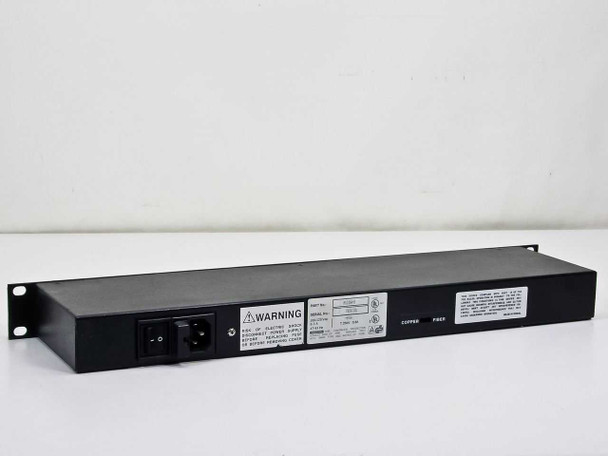

  • Black Box MX330A-D I-MUX – rear panel view showing IEC power inlet and Copper/Fiber selector

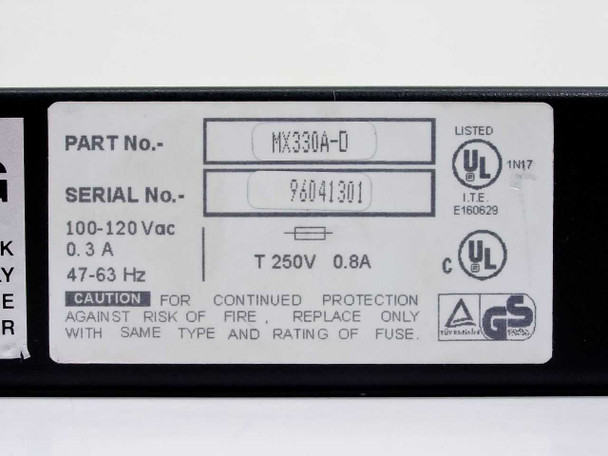

  • Black Box MX330A-D label showing Part No. MX330A-D, 100-120VAC 0.3A 47-63Hz, UL listing, and fuse rating
  • Black Box MX330A-D front panel close-up showing POWER LED, Fiber Optic LINK TX/RX ports, and Copper BNC LINK port with ERR and DATA indicators
  • Black Box MX330A-D front panel close-up showing MUX PORT section with four BNC connectors labeled 0-3 and ERR/DATA LEDs

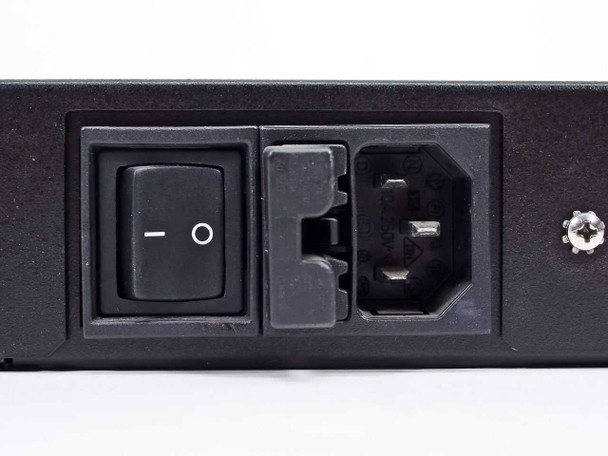

  • Black Box MX330A-D rear panel close-up showing rocker power switch and IEC C14 power inlet

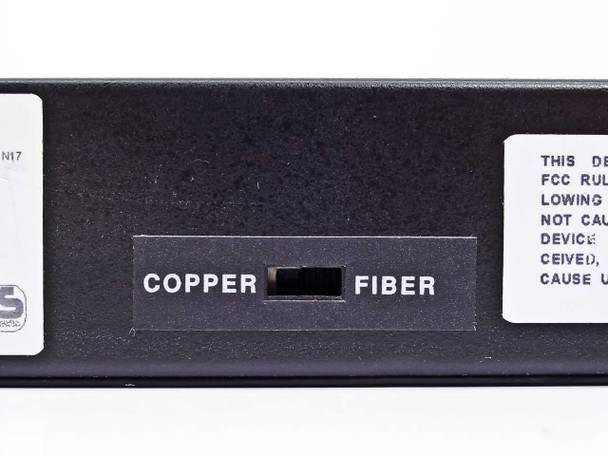

  • Black Box MX330A-D rear panel close-up showing Copper/Fiber selector label and fiber optic port
$55.00
Was: $140.00
Current Stock: 1

Sold Out

Description

Black Box MX330A-D 3174/3274 I-MUX Fiber Optic Copper 4-Port 100-120VAC BNC

This is a 1U rack-mount fiber optic multiplexer designed for IBM 3174 and 3274 cluster controller environments. It provides connectivity between fiber optic and copper BNC interfaces for telecom and data transmission applications.

Specifications & What's Included

  • Model: MX330A-D
  • 4 MUX ports (BNC) + 1 Fiber Optic Link port
  • Power: 100-120VAC, 0.3A, 47-63Hz
  • Fuse Rating: T 250V 0.8A
  • Form Factor: Rack Mount, 1U
  • Certifications: UL, ITE E160629, GS, FCC
  • Unit only; no accessories included

Applications

Commonly used in legacy IBM mainframe environments for multiplexing copper and fiber optic connections within cluster controller systems.

Condition: Used
This Black Box MX330A-D Fiber Optic I-MUX has been inspected and shows normal wear consistent with prior rack-mount deployment. The chassis and front panel are intact with no significant damage observed. It has not been powered on or bench-tested at our facility. Please review our photos and reach out with any questions prior to purchase.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Black Box
Model:
MX330A-D
MPN:
MX330A-D
SKU:
7257
Condition:
Used – Inspected
Seller Notes:
Unit only; no accessories included.
Form Factor:
Rack Mount, 1U
Compatible With:
IBM 3174 and IBM 3274 cluster controllers
Power Requirements:
100-120VAC, 0.3A, 47-63Hz
Fuse Rating:
T 250V 0.8A
Number of Ports:
4 MUX ports (BNC) + 1 Fiber Optic Link port
Interface Type:
Fiber Optic and Copper (BNC)
Connector Type:
BNC (MUX ports), Fiber Optic (Link port)
Product Type:
Fiber Optic Multiplexer / I-MUX
Series:
3174/3274 I-MUX
Certifications:
UL, ITE E160629, GS, FCC
Condition Notes:
This Black Box MX330A-D Fiber Optic I-MUX has been inspected and shows normal wear consistent with prior rack-mount deployment. The chassis and front panel are intact with no significant damage observed.
