The Bird Electronic Model 43 Thruline is one of the most recognized RF directional wattmeters ever made — a rugged, portable instrument used to measure forward and reflected RF power in transmission lines. It operates on the directional coupler principle: a plug-in element (slug) inserted into the meter body samples the RF field passing through, producing a reading on the large analog meter face. Swapping elements changes both the power range and the usable frequency range, making the Model 43 an extremely versatile instrument across a wide span of RF applications. This unit includes three plug-in elements as described by the seller (5W, 10W, and 2500W); please see the condition notes and photos for element details.

Specifications & What's Included

• Manufacturer: Bird Electronic Corporation, Cleveland, Ohio USA
• Model: 43 (Thruline RF Directional Wattmeter)
• Impedance: 50 Ohms
• Connector type: N-Type (female, both ports)
• Measurement: Forward and reflected RF power (directional)
• Power range: Determined by installed plug-in element
• Frequency range: Determined by installed plug-in element

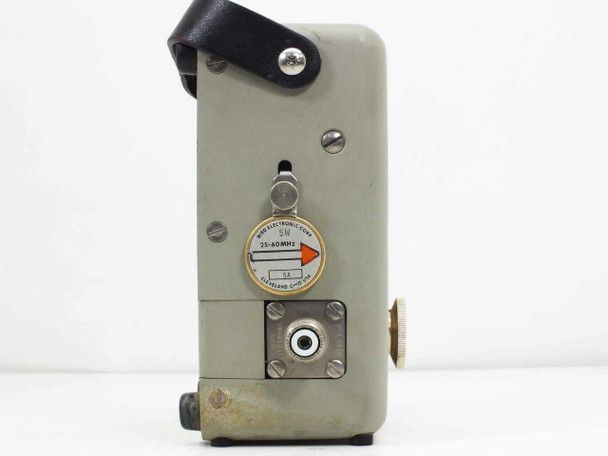

• Included Element 1: 5W, 25–60 MHz (visible in left side slot in photos)
• Included Element 2: 10W (per seller listing — confirm element set upon receipt)

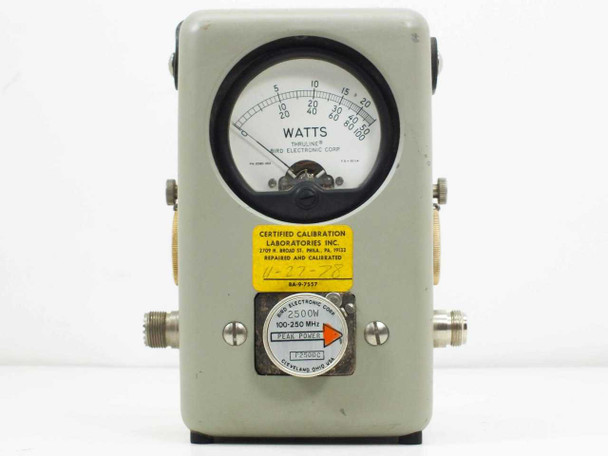

• Included Element 3: 2500W, 100–250 MHz, Peak Power (P2500C, visible in front slot in photos)

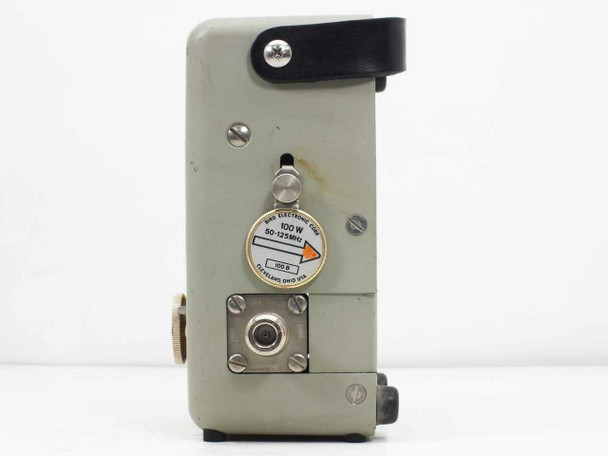

• Note: Photos also show a 100W 50–125 MHz element in the right side slot — buyers should verify exact element set; see condition notes

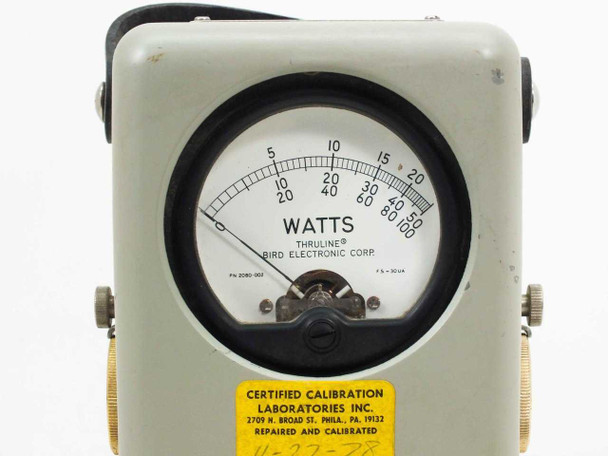

• Meter face: Dual-scale analog (part number 2060-002, per label)
• Form factor: Portable handheld/bench instrument with carry handle
• Housing: Gray cast metal, rugged field-use construction
• Calibration sticker: Certified Calibration Laboratories Inc., Philadelphia PA — dated 11-27-78 (repaired and calibrated); calibration not current
