Bill West Inc

Bill West Inc PC001 Multiplexer Board 4-Port DB9 RS-232 Serial Card Module

(No reviews yet) Write a Review
SKU:
33845
MPN:
PC001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Bill West Inc PC001 Multiplexer Board – angled top view showing green PCB with transformer modules and bracket

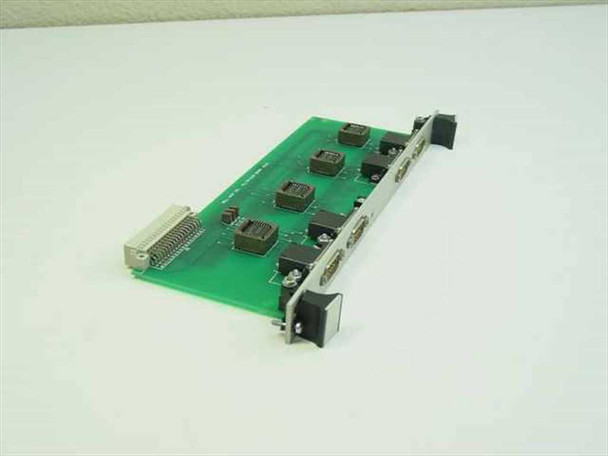

  • Bill West Inc PC001 Multiplexer Board – angled rear view showing IDC ribbon connector and component side

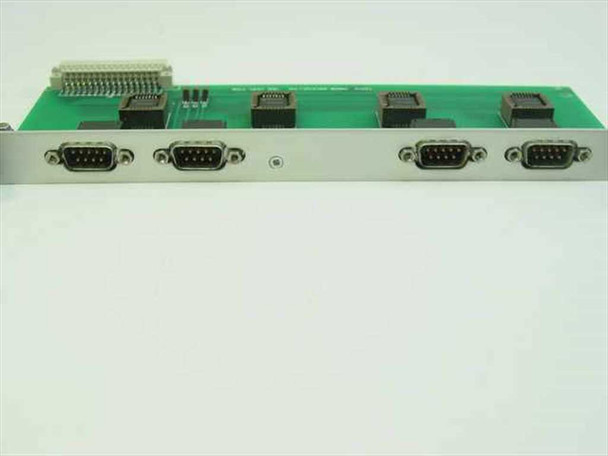

  • Bill West Inc PC001 Multiplexer Board – front edge view showing four DB9 RS-232 serial port connectors on bracket
  • Bill West Inc PC001 Multiplexer Board – close-up of PCB silkscreen label reading BILL WEST INC MULTIPLEXER BOARD PC001
$55.00
Was: $100.00
Current Stock: 4

Sold Out

Description

Bill West Inc PC001 Multiplexer Board 4-Port DB9 RS-232 Serial Card Module

Serial multiplexer board designed to expand RS-232 connectivity in industrial control systems. Provides four independent serial communication channels through a single card interface.

Specifications & What's Included

  • Model: PC001
  • 4x DB9 female connectors (front edge mounted)
  • RS-232 serial interface
  • IDC/ribbon header internal bus connection
  • Card/module form factor
  • Board only; no cables included

Applications

Serial multiplexer boards like the PC001 were used in industrial automation and control environments to manage multiple serial device connections through a single host interface. Commonly deployed in manufacturing systems, data acquisition setups, and legacy industrial control platforms requiring expansion of RS-232 ports. Compatible with Bill West Inc industrial control systems and equipment designed for standard IDC ribbon header connections.

Condition: Used
This Bill West Inc PC001 Multiplexer Board has been inspected and is in good condition. The PCB is clean with no obvious damage, and all four DB9 serial port connectors on the bracket appear intact. The board shows light surface wear consistent with prior installation and removal from a system. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Bill West Inc
Model:
PC001
MPN:
PC001
Type:
Serial Multiplexer Board
SKU:
33845
Number of Ports:
4
Interface Type:
RS-232
Connector Type:
DB9 (4x female, front edge)
Form Factor:
Card/Module
Bus Interface:
IDC/ribbon header (internal)
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Board only; no cables included
Compatible With:
Bill West Inc industrial control systems
Condition Notes:
Bill West Inc PC001 Multiplexer Board inspected and in good condition. PCB is clean, all four DB9 connectors intact, light wear from prior use. Board only.
View AllClose

Related Products

Related Products

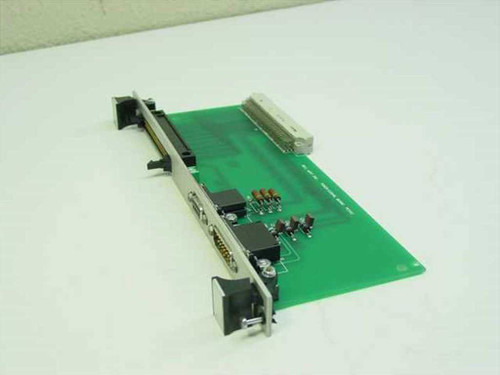

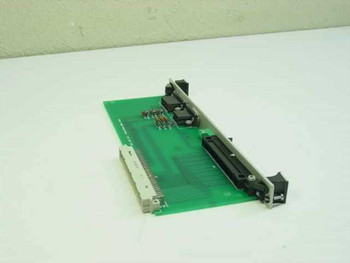

Bill West Inc PC002 Power Signal Board — angled front-left view showing DB9 and DB15 connectors on bracket and card-edge connector at top right Bill West Inc PC002 Power Signal Board — angled rear-right view showing card-edge connectors on both ends and component side of PCB
