Description
Big Joe PDM 20-154 Electric Straddle Stacker 2000 lb 154 in Lift 12V Walkie
The Big Joe PDM 20-154 is a pedestrian-operated (walkie) electric straddle stacker designed for warehouse and light industrial pallet handling. It lifts loads up to 2,000 lb to a maximum height of 154 inches, making it capable of reaching standard double-deep or three-tier racking. The straddle-leg design allows it to straddle standard GMA pallets without requiring a notched pallet, giving it flexibility across a range of warehouse applications. Power comes from a 12V battery system with a minimum battery weight of 220 lb, and the unit is controlled via a tiller arm with a forward/reverse switch.
Specifications & What's Included
- Model: Big Joe PDM 20-154
- Maximum Lift Capacity: 2,000 lb
- Lift Height: 154 in
- Load Center: 24 in
- Truck Type: E (Electric)
- Battery Voltage: 12V
- Battery Type: E0583
- Battery Minimum Weight: 220 lb
- Unit Weight (Less Battery): 1,848 lb
- Certified: MFR
- Complies with: ANSI B56.1 and OSHA Standards
- Drive: Pedestrian walkie (operator walks behind tiller)

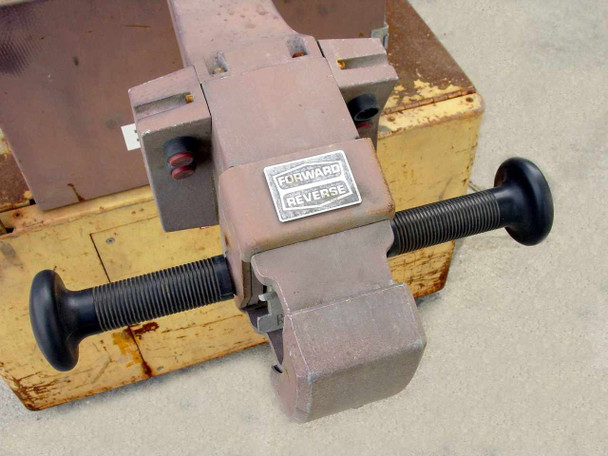

- Controls: Tiller arm with Forward/Reverse switch and dual pistol-grip handles

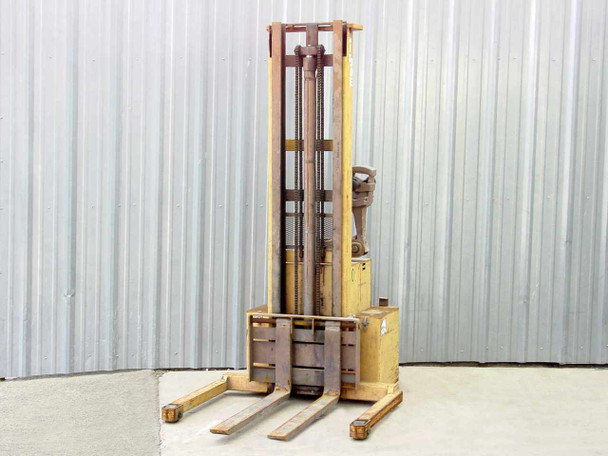

- Straddle legs with casters for load stability
- Manufacturer: Big Joe Manufacturing Company, Wisconsin Dells, WI
- Battery charger not confirmed included — please inquire
- Freight shipping required
Applications
Walkie straddle stackers like the Big Joe PDM series are standard warehouse equipment used for loading and unloading pallets, building rack storage, and moving loads in aisles too narrow for a sit-down counterbalanced forklift. The straddle-leg configuration — where the forks slide between the pallet and the floor — makes them particularly well suited for facilities that handle standard wood GMA pallets and block pallets. With a 154-inch lift height, the PDM 20-154 is capable of stacking to three-tier or double-deep warehouse racking. Big Joe Manufacturing, based in Wisconsin Dells, has produced pedestrian and rider electric lift equipment since the mid-twentieth century; the PDM series represents their mid-capacity walkie stacker line commonly found in warehousing, distribution, light manufacturing, and retail stock room operations. These stackers remain widely used today in facilities where a compact, battery-powered lifting solution is preferred over a propane or full-sit-down forklift.

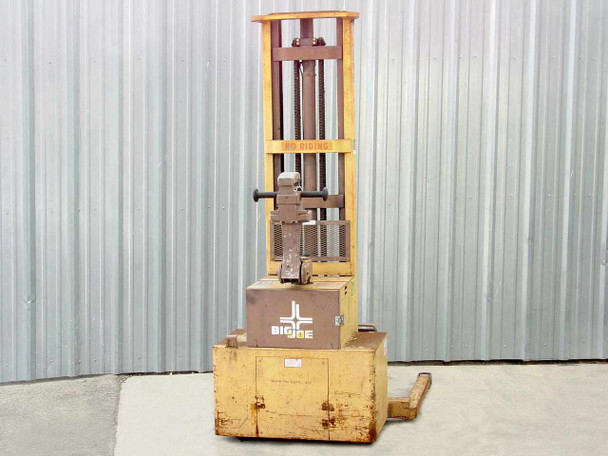

This Big Joe PDM 20-154 electric walkie straddle stacker is a used unit pulled from a working environment. It has not been powered up or tested at our facility. The unit shows the typical wear expected of used warehouse equipment: the yellow paint on the mast, body, and straddle legs shows scuffing, chipping, and discoloration; the forks show surface rust; and the battery compartment and body show general age-related wear. The data plate is intact and legible, confirming the model, capacity, and electrical specs. The forward/reverse tiller handle is present and appears complete. A battery charger is not confirmed included — please inquire before purchasing if one is needed. Freight shipping is required for this item. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Big Joe |
Model: |
PDM 20-154 |
MPN: |
PDM 20-154 |
Type: |
Electric Walkie Straddle Stacker |
SKU: |
36503 |
Maximum Lift Capacity: |
2000 lb |
Lift Height: |
154 in |
Load Center: |
24 in |
Voltage: |
12V |
Battery Type: |
E0583 |
Battery Minimum Weight: |
220 lb |
Weight (Less Battery): |
1848 lb |
Truck Type: |
E (Electric) |
Certified: |
MFR |
Standards Compliance: |
ANSI B56.1, OSHA Standards |
Drive Type: |
Electric Walkie (Pedestrian) |
Country/Region of Manufacture: |
United States |
Manufacturer Location: |
Wisconsin Dells, Wisconsin |
Seller Notes: |
Unit only — no charger confirmed included. Freight shipping required. |
Condition Notes: |
This Big Joe PDM 20-154 electric straddle stacker is used, pulled from a working environment, and not tested at our facility. Shows paint wear, scuffing, and surface rust on forks. Data plate intact. Charger not confirmed. Freight required. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
