Description
Belkin F1T015 AutoSwitch Plus 4-Port Parallel Printer Switch Centronics DB25
The Belkin F1T015 AutoSwitch Plus is a 4-port parallel printer-sharing switch that allows up to four computers to share a single parallel printer automatically. When a computer sends a print job, the switch detects the signal and routes it to the printer without any manual intervention. An optional buffer memory upgrade of up to 2MB allows multiple users to send print jobs simultaneously, queuing them for sequential printing.
Specifications & What's Included
- Model: Belkin F1T015 AutoSwitch Plus
- Number of computer ports: 4 (labeled A, B, C, D)
- Computer input connectors: 36-pin Centronics female (x4)
- Printer output connector: DB25 female (x1)
- Switching mode: Fully automatic (no manual selection required)
- Port selection: Manual override button on front panel
- Buffer memory: Up to 2MB (optional buffer add-in)
- Timeout: Adjustable, 5 to 60 seconds

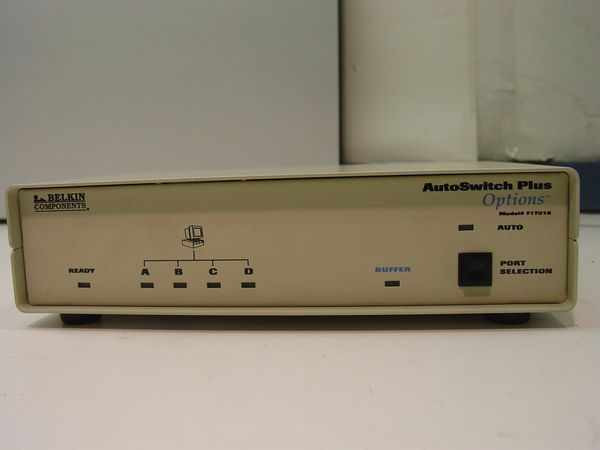

- Front-panel indicators: READY LEDs for each port (A, B, C, D) and BUFFER LED
- Power: DC 9V external adapter (adapter not confirmed included — see condition notes)
- Interface: Parallel (Centronics/DB25)
- Form factor: Desktop
- Country of manufacture: Canada
- CE marked; regulatory compliance label on base
Applications
Parallel printer switches like the Belkin F1T015 were a standard solution in 1990s offices and small workgroups where multiple computers needed to share a single parallel (Centronics) printer but a dedicated print server was not practical. The auto-switching feature eliminated the need for users to manually flip a selector — the switch detected an incoming print signal and connected that port automatically, then released it after the configurable timeout period. This type of device was common in environments running DOS- and early Windows-based PCs with dot-matrix, laser, or inkjet printers equipped with 36-pin Centronics parallel interfaces. While parallel printing has been superseded by USB and networked printing in modern environments, these switches remain useful for maintaining legacy parallel-port printers in service alongside older workstations, CNC controllers, or specialized industrial and lab equipment that still communicates over a parallel interface.

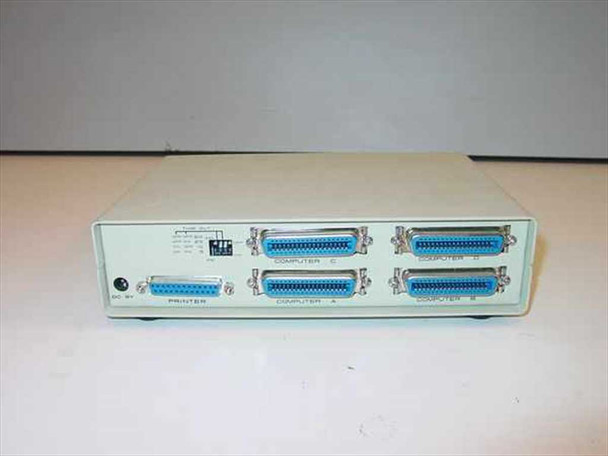

This Belkin F1T015 AutoSwitch Plus 4-Port Parallel Printer Switch has been inspected and is in good used condition. The unit shows typical light wear consistent with normal office use. All four Centronics input ports and the DB25 printer output port on the rear appear clean and undamaged. Front-panel LEDs and controls are intact. Note: a DC 9V power adapter is not visibly included in our photos — please review the photo set and contact us before purchasing if you need the adapter confirmed. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Belkin |
Model: |
F1T015 |
MPN: |
F1T015 |
Type: |
Parallel Printer Auto-Switch |
SKU: |
11547 |
Number of Ports: |
4 Computer Ports + 1 Printer Port |
Input Connector Type: |
36-Pin Centronics Female (x4) |
Output Connector Type: |
DB25 Female (Printer) |
Switching Mode: |
Automatic (Auto-Switch) |
Buffer Memory: |
Up to 2MB (optional) |
Timeout: |
Adjustable 5 to 60 seconds |
Interface: |
Parallel (IEEE 1284 compatible) |
Form Factor: |
Desktop |
Power Requirements: |
DC 9V |
Compatible With: |
Parallel printer-equipped PCs (up to 4) |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Unit only; no power adapter included (verify before purchase) |
Country/Region of Manufacture: |
Canada |
Condition Notes: |
Belkin F1T015 AutoSwitch Plus parallel printer switch inspected and in good used condition. Ports appear clean and undamaged. Power adapter not confirmed included. Please contact us with questions. |
