Belkin F5C500 ReSource 325VA UPS Battery Backup 125V 8-Outlet Surge No Battery

Belkin F5C500 ReSource 325VA UPS Battery Backup 125V 8-Outlet Surge No Battery

The Belkin F5C500 ReSource is a desktop-style uninterruptible power supply (UPS) offering 325 VA of battery backup capacity along with full-time surge protection across all outlets. It provides eight AC outlets in a compact strip form factor, making it suited for protecting desktop computers, monitors, and peripheral equipment from power outages and surges. Note: this unit does not include a battery. A compatible 12V sealed lead-acid (SLA) replacement battery must be sourced separately before the unit can provide backup power.

Specifications & What's Included

• Model: Belkin F5C500 ReSource
• Capacity: 325 VA
• Input: 125V AC, 12A, 60Hz
• Utility Outlets: 125V AC, 12A, 60Hz
• UPS Outlets: 120V AC, 325VA
• Total AC Outlets: 8
• Phone/Data Line Jacks: 3 (visible on front panel)
• Surge Protection: Full-Time Surge Protection (all outlets)
• Form Factor: Desktop / horizontal strip

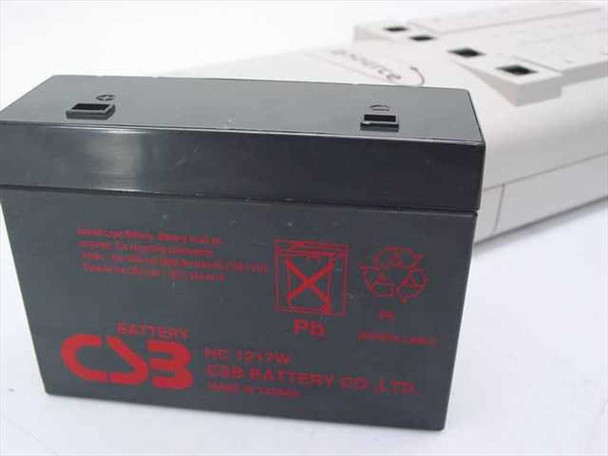

• Battery: Not included — requires a 12V sealed lead-acid (SLA) battery (e.g. CSB HC1217W or equivalent)
• Power Cord: Included (attached)

Applications

Desktop UPS units like the Belkin F5C500 ReSource are used to provide short-term battery backup power during outages, allowing users to safely save work and shut down connected equipment. The full-time surge protection on all outlets guards against voltage spikes and line noise that can damage sensitive electronics. This model dates from the late 1990s to early 2000s era of entry-level consumer and small-office UPS products, when strip-style UPS designs were a common and affordable choice for protecting desktop PCs and home office equipment. It is still a functional option for powering small loads where a replacement 12V SLA battery is available, and SLA batteries of this type remain widely available from battery suppliers.
