BEI Motion Systems

BEI Motion Systems MX213-25-1024U Rotary Optical Encoder with Cable

(No reviews yet) Write a Review
SKU:
31016
MPN:
MX213-25-1024U
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout

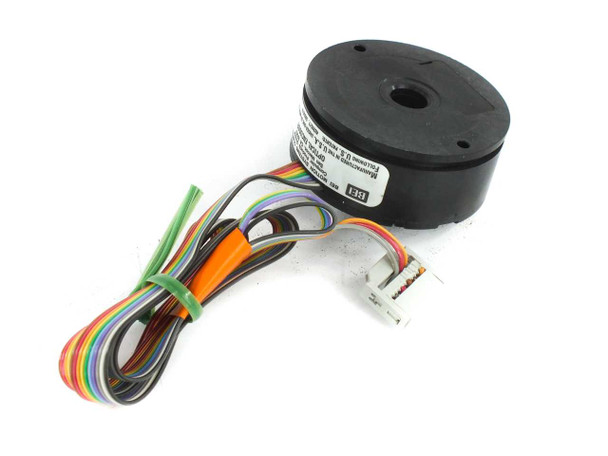

  • BEI Motion Systems MX213-25-1024U rotary optical encoder — angled top view showing housing and multicolor ribbon cable with multi-pin connector
  • BEI Motion Systems MX213-25-1024U optical encoder — top/side view showing through-bore center hole, three mounting holes, and full cable length with connector

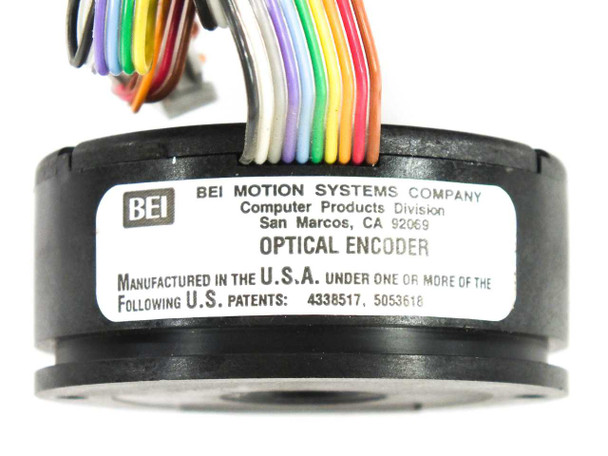

  • BEI Motion Systems MX213-25-1024U encoder label closeup — BEI Motion Systems Company nameplate reading 'Optical Encoder', San Marcos CA, with US patent numbers 4338517 and 5053618
  • BEI MX213-25-1024U encoder label closeup — side label showing model number MX213-25-1024U, spec code, and date code 9249
$79.00
Was: $120.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

BEI Motion Systems MX213-25-1024U Rotary Optical Encoder with Cable

The BEI Motion Systems MX213-25-1024U is a rotary incremental optical encoder producing 1024 pulses per revolution (PPR). It uses an optical disk-and-detector assembly inside a compact disc-shaped housing to convert shaft rotation into digital quadrature output signals. The unit ships with its original multicolor ribbon cable and multi-pin connector attached.

Specifications & What's Included

  • Manufacturer: BEI Motion Systems Company, Computer Products Division, San Marcos, CA
  • Model / MPN: MX213-25-1024U
  • Type: Incremental rotary optical encoder
  • Resolution: 1024 PPR (pulses per revolution)
  • Housing: Compact disc-style (hollow-shaft / through-bore center), black overmolded body
  • Mounting: Three mounting holes on face
  • Output: Incremental quadrature (A, B, and Index channels typical for this series)
  • Cable: Attached multicolor ribbon cable with multi-pin housing connector
  • Country of Manufacture: USA (per label)
  • Date Code: 9249 (week 49, 1992)
  • US Patents: 4,338,517 and 5,053,618
  • Included: Encoder with cable — no mounting hardware

Applications

Rotary optical encoders like the BEI MX213 series are used in motion control and automation systems to provide precise angular position and velocity feedback to a controller. They are commonly found in CNC machines, robotics, servo drive systems, medical equipment, semiconductor handling equipment, and industrial automation platforms. The 1024 PPR resolution makes this encoder well suited for applications requiring moderate-to-high position accuracy. BEI Motion Systems (later absorbed into Sensata Technologies) was a leading US manufacturer of optical encoders from the 1980s through the 2000s, and MX-series encoders from this era are still encountered in legacy motion control installations and replacement/repair applications. The hollow-bore design allows the encoder to be mounted directly over a shaft, simplifying installation in tight spaces.

Condition: Used
This BEI Motion Systems MX213-25-1024U rotary optical encoder has been inspected and appears to be in good used condition. It was pulled from a working system where it was previously in service. The housing is intact with normal wear consistent with industrial use. The multicolor ribbon cable and multi-pin connector are attached and appear undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
BEI Motion Systems
Model:
MX213-25-1024U
MPN:
MX213-25-1024U
Type:
Rotary Optical Encoder
SKU:
31016
Encoder Type:
Incremental
Resolution:
1024 PPR (Pulses Per Revolution)
Output Type:
Incremental quadrature
Series:
MX213
Cable Included:
Yes — multicolor ribbon cable with connector
Connector Type:
Multi-pin housing connector
Country/Region of Manufacture:
United States
Form Factor:
Hollow-shaft / through-bore disc housing
Seller Notes:
Includes attached multicolor ribbon cable with multi-pin connector. Encoder only — no mounting hardware.
Condition Notes:
BEI Motion Systems MX213-25-1024U rotary optical encoder in good used condition. Pulled from a working system. Housing intact, cable and connector attached and appear undamaged. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
