Description
Beattie Systems D-67-S Converter 67 67-001M 06715010 6x7 Roll Film Back Adapter

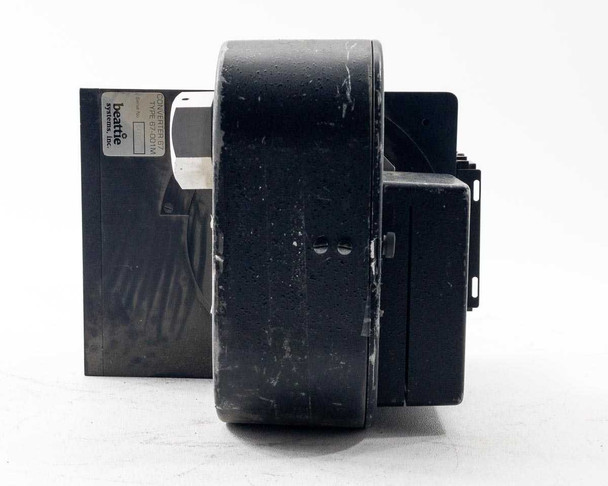

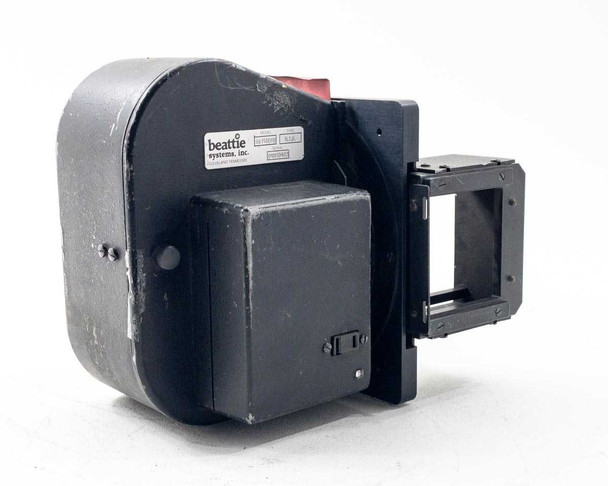

The Beattie Systems D-67-S is a 6×7 cm roll film back and film-plane converter made by Beattie Systems, Inc. It is designed to attach to large-format cameras, copy stands, or other imaging equipment to allow medium-format roll film to be used at the film plane. The unit includes a ground glass focusing screen, a dark slide, and a film cover, and uses a knurled lens-mount ring for attachment to the camera or stand body.
Specifications & What's Included
- Make: Beattie Systems, Inc.
- Model: D-67-S
- Type / Part Number: 67-001M
- Secondary Part Number: 06715010
- Film Format: 6×7 cm (medium format roll film)

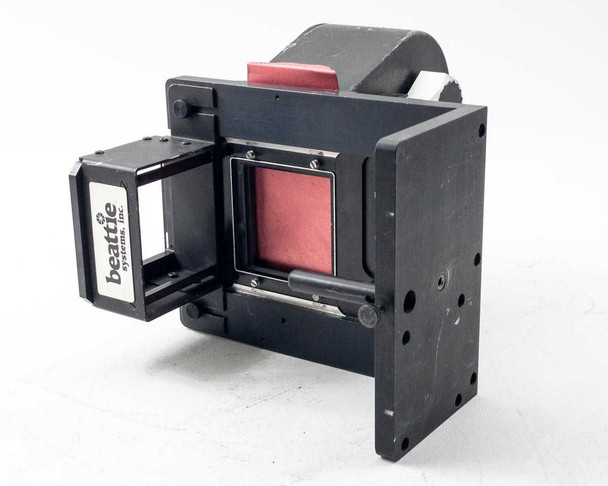

- Ground glass focusing screen (pink/magenta tint visible in photos)
- Dark slide and film cover — confirmed removable
- Knurled lens-mount / attachment ring (large format lens-board interface)
- Internal film transport / spool mechanism
- Ceramic flash sync connector visible internally
- Black anodized aluminum and machined body construction

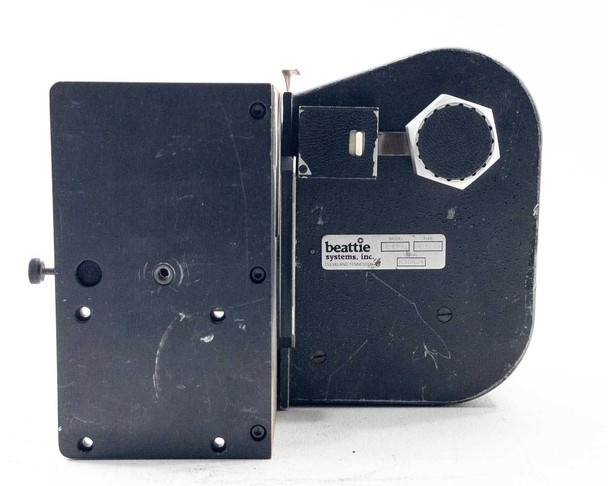

- Beattie Systems, Inc. label affixed to body identifying model and type
- Sold as-is — no additional accessories, cables, or film confirmed included
Applications
Beattie Systems, Inc. was a U.S. manufacturer best known for its Intenscreen bright focusing screens, but the company also produced a range of roll film backs and film-plane adapters like the Converter 67 series. These converters were used to adapt large-format cameras and scientific or industrial imaging equipment — such as copy stands, process cameras, and repro cameras — to accept medium-format 6×7 cm roll film in place of sheet film or a ground glass back. They were commonly used in professional photographic studios, reprographic and prepress shops, and technical/scientific imaging environments from the 1970s through the 1990s. Today, units like the D-67-S are sought by photographers working with vintage large-format systems, collectors of classic photographic equipment, and those maintaining legacy reprographic or copy-stand setups that require a roll film interface.
This Beattie Systems D-67-S Converter 67 roll film back is being sold as-is for parts. The film cover and dark slide can be removed. The body shows surface wear, scuffing, and minor scratches consistent with its age and previous use. Please review all photos carefully before purchasing, as they represent the item's actual condition. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Beattie Systems |
Model: |
D-67-S |
MPN: |
67-001M |
Secondary Model: |
06715010 |
Type: |
Roll Film Back / Film Plane Converter |
SKU: |
35615 |
Film Format: |
6x7 cm (Medium Format) |
Compatible With: |
Large format / view cameras and copy stands with compatible lens boards |
Seller Notes: |
Converter only — film cover and dark slide removable; no other accessories confirmed |
Country/Region of Manufacture: |
United States |
Form Factor: |
Camera Back / Modular Attachment |
Features: |
Ground glass focusing screen, dark slide, film cover, knurled lens-mount ring |
Application: |
Medium format roll film photography, scientific/industrial imaging, copy work |
Condition Notes: |
Beattie Systems D-67-S Converter 67 (67-001M) sold as-is for parts. Film cover and dark slide are removable. Body shows surface wear and scuffing consistent with age. Please review photos carefully before purchasing. |
