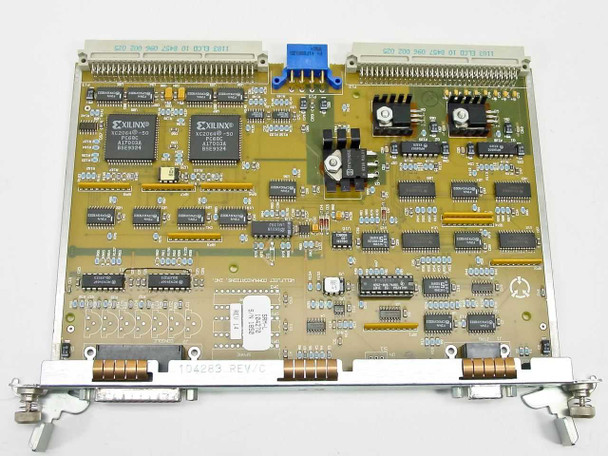

Bay Networks SRML 75000 System Resource Module Plug-In Card DB-9 JTAG Console
System resource management module designed for Bay Networks 75000 series network chassis. Provides console access, system monitoring, and FPGA-based resource control for network equipment.
Specifications & What's Included
- Model: SRML 75000
- Form Factor: Plug-In Card Module
- Connectors: DB-9, DB-25 Console, JTAG Header
- Controller: Dual Xilinx FPGA
- Status LEDs: VCC, 12V 1, 12V 2 indicators
- Module only; no cables or accessories
Applications
The SRML 75000 module functioned as a management and control card in Bay Networks carrier-class routing and switching chassis. It provided system resource monitoring, diagnostic capabilities, and console interface management for network equipment deployed in telecommunications and enterprise backbone environments. Compatible with Bay Networks 75000 series modular chassis platforms.
Condition: Used
This Bay Networks SRML 75000 System Resource Plug-In Module has been inspected and appears to be in good used condition. It was pulled from a working environment. The PCB and components look clean with no obvious damage. The aluminum faceplate shows light handling marks typical of a removed chassis card. All visible connectors — including the DB-9, DB-25 Console port, and JTAG header — appear intact and undamaged. The VCC, 12V 1, and 12V 2 LED indicators are present and intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Bay Networks SRML 75000 System Resource Plug-In Module has been inspected and appears to be in good used condition. It was pulled from a working environment. The PCB and components look clean with no obvious damage. The aluminum faceplate shows light handling marks typical of a removed chassis card. All visible connectors — including the DB-9, DB-25 Console port, and JTAG header — appear intact and undamaged. The VCC, 12V 1, and 12V 2 LED indicators are present and intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Bay Networks |
Model: |
SRML 75000 |
MPN: |
SRML 75000 |
Type: |
System Resource Plug-In Module |
SKU: |
14817 |
Form Factor: |
Plug-In Card / Module |
Interface Type: |
DB-9, JTAG, Console (DB-25) |
Connector Type: |
DB-9, DB-25 Console, JTAG Header |
Chipset / Controller: |
Xilinx FPGA (x2, markings partially legible) |
LED Indicators: |
VCC, 12V 1, 12V 2 status LEDs |
Compatible With: |
Bay Networks network chassis (75000 series) |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Module only; no cables or accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Bay Networks SRML 75000 System Resource Module pulled from a working environment. PCB and connectors appear clean and undamaged. Faceplate shows light handling wear. Sold as used, no cables included. |
