Bay Networks Nortel 5575A-F Token Ring Dual Fiber Repeater Cluster Host Module

(No reviews yet) Write a Review
SKU:
14775
MPN:
896-00161-A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

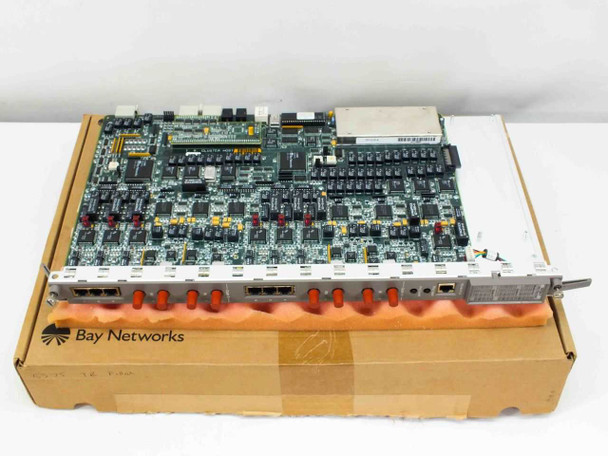

  • Bay Networks 5575A-F Token Ring Dual Fiber Repeater Cluster Host Module shown on original Bay Networks box, front panel facing up with red fiber port caps visible
  • Bay Networks 5575A-F Token Ring Cluster Host Module — top-down view of full PCB showing dense component population with memory, logic ICs, and sub-board assembly
  • Bay Networks 5575A-F module angled three-quarter view showing front panel with fiber ports capped in red and RJ-45 monitor port
  • Bay Networks 5575A-F front panel label showing model number '5575A-F', 'Token Ring Host', 'Monitor Port', and port layout grid for Cluster A and Cluster B
  • Bay Networks 5575A-F Cluster B end of front panel showing three RJ-45 ports (ports 9–11) and red-capped fiber TX/RX ports with port labels
  • Bay Networks 5575A-F Cluster B section front panel close-up showing three RJ-45 jacks (ports 4–6) and red-capped fiber ports with RD/RI labels
  • Bay Networks 5575A-F Cluster A section front panel close-up showing fiber TX/RX ports, Ring Speed and Ring Select switches, and RJ-45 Monitor Port
  • Bay Networks 5575A-F — IPD International Power Devices SCS4805S1 power module label showing Vin 38–60VDC, 48VDC Nominal, Iin 2500mA Max, Rev R01, date code 9750
  • Bay Networks 5575A-F Token Ring Cluster Host Module full board view from above at angle, showing sub-board mezzanine assembly and fiber connectors at bottom edge
  • Bay Networks 5575A-F PCB close-up showing 'T.R. CLUSTER HOST' silkscreen label, SynOptics 321-020-A board marking, and densely populated logic ICs
  • Bay Networks 5575A-FNortel Token Ring Dual Fiber Repeater Cluster Host Module 89
  • Bay Networks 5575A-FNortel Token Ring Dual Fiber Repeater Cluster Host Module 89
  • Bay Networks 5575A-FNortel Token Ring Dual Fiber Repeater Cluster Host Module 89
  • Bay Networks 5575A-FNortel Token Ring Dual Fiber Repeater Cluster Host Module 89
  • Bay Networks 5575A-FNortel Token Ring Dual Fiber Repeater Cluster Host Module 89
  • Bay Networks 5575A-FNortel Token Ring Dual Fiber Repeater Cluster Host Module 89
  • Bay Networks 5575A-FNortel Token Ring Dual Fiber Repeater Cluster Host Module 89
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Bay Networks Nortel 5575A-F Token Ring Dual Fiber Repeater Cluster Host Module

Card-based cluster host module for Bay Networks Token Ring hub chassis. Provides dual fiber connectivity and repeater functionality for Token Ring networks operating at selectable ring speeds.

Specifications & What's Included

  • 11 fiber ports plus RJ-45 monitor port
  • Dual fiber / RJ-45 interface type
  • Supports Cluster A and Cluster B
  • Ring speed selectable via front panel switch
  • Power: IPD SCS4805S1, 48VDC nominal, 38–60VDC input, 2500mA max
  • Manufactured February 1997, United States
  • Includes User's Manual and Release Notes

Applications

Used in Token Ring network infrastructure built on Bay Networks / Nortel hub chassis platforms. Served as a fiber repeater and cluster management module for enterprise Token Ring networks in the 1990s and early 2000s. Provided extended fiber connectivity for Token Ring segments requiring dual redundancy or longer transmission distances than copper implementations.

Condition: Used
This Bay Networks Nortel 5575A-F Token Ring Dual Fiber Repeater Cluster Host Module has been inspected and appears to be in good used condition. It was pulled from a working environment. The front panel, fiber port housings, and board components show normal wear consistent with prior rack installation use. The red dust caps are present on the fiber ports. The board itself appears clean with no obvious physical damage. Includes the original User's Manual and Release Notes. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Bay Networks
Model:
5575A-F
MPN:
5575A-F
Type:
Token Ring Dual Fiber Repeater Cluster Host Module
SKU:
14775
Seller Notes:
Includes User's Manual and Release Notes. Mfr. date February 1997.
Country/Region of Manufacture:
United States
Form Factor:
Card/Module
Manufacture Date:
February 1997
Network Technology:
Token Ring
Interface Type:
Dual Fiber / RJ-45
Number of Ports:
11 fiber ports + Monitor Port (RJ-45)
Cluster Support:
Cluster A and Cluster B
Ring Speed:
Selectable (Ring Speed switch on front panel)
Power Supply:
IPD SCS4805S1, Vin 38–60VDC, 48VDC Nominal, 2500mA Max
Compatible With:
Bay Networks / Nortel Token Ring hub chassis
Condition:
Used – Pulled from Working Environment
Condition Notes:
Bay Networks Nortel 5575A-F Token Ring Dual Fiber Repeater Cluster Host Module. Inspected, good used condition, pulled from a working environment. Fiber port caps present, board clean. Includes User's Manual and Release Notes.
