Bay Networks

Bay Networks 5505P Token Ring Active Retiming Host Module 16-Port RJ-45

(No reviews yet) Write a Review
SKU:
14702
MPN:
5505P
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout

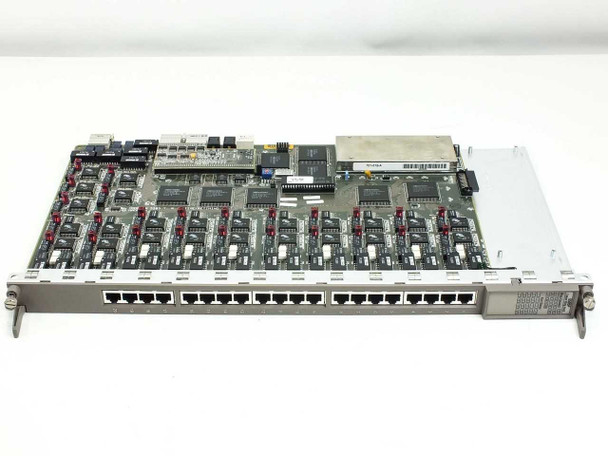

  • Bay Networks 5505P Token Ring Active Retiming Host Module – top-side view showing 16 RJ-45 ports along bottom edge and populated PCB
  • Bay Networks 5505P Token Ring Host Module – angled top view showing full board layout with ICs, red capacitors, and metal bracket
  • Bay Networks 5505P front panel closeup showing '5505P' model label, Ring Connect and Port Status indicator grid, and two RJ-45 ports
  • Bay Networks 5505P Token Ring module – close-up of 16 RJ-45 port row numbered along front edge with barcode label visible on sub-board
  • Bay Networks 5505P PCB detail – silkscreen reads 'HDB T.R. ACTIVE/RETIMING HOST'; multiple SynOptics ICs and red capacitors visible
  • Bay Networks 5505P PCB close-up – large QFP controller IC and edge connector (card bus interface) detail
  • Bay Networks 5505P onboard power module – IPD International Power Devices SCS4805S1, Vin 38-60VDC, 48VDC nominal, 2500mA max, R00 rev, date code 9503
  • Bay Networks 5505P PCB detail – SynOptics 104-315-A controller ICs, Pletronics PT100-3E 14.745600MHz crystal, Philips IC, and board serial number sticker
  • Bay Networks 5505P PCB detail – Valor FL3111 magnetics modules and edge connector area showing additional ICs and passive components
  • Bay Networks 5505P Token Ring Host Module – bottom metal cover view showing full module chassis profile and rear bracket
$60.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Bay Networks 5505P Token Ring Active Retiming Host Module 16-Port RJ-45

This is a 16-port Token Ring active retiming host module for Bay Networks and SynOptics Lattisnet chassis systems. The module provides managed Token Ring connectivity with active signal retiming capabilities for network environments requiring reliable token ring infrastructure.

Specifications & What's Included

  • Model: Bay Networks 5505P
  • 16 RJ-45 ports, Token Ring technology
  • Active retiming host module with managed capabilities
  • Power module: IPD SCS4805S1 (38-60VDC input, 48VDC nominal, 2500mA max)
  • SynOptics 104-315-A chipset with 14.745600 MHz crystal
  • Module only; no chassis or cables included

Applications

This module was used in Bay Networks and SynOptics Token Ring networking deployments, primarily in enterprise and telecommunications environments requiring active signal conditioning. Token Ring modules of this type provided managed connectivity for departmental and backbone networks during the 1990s and early 2000s. Compatible with Bay Networks Lattisnet and SynOptics chassis architectures.

Condition: Used
This Bay Networks 5505P Token Ring Active Retiming Host Module has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The board shows typical light wear consistent with prior rack installation. No cracked components, broken connectors, or obvious physical damage are visible in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Bay Networks
Model:
5505P
MPN:
5505P
Type:
Token Ring Active Retiming Host Module
SKU:
14702
Condition:
Used – Pulled from Working Environment
Form Factor:
Card/Module
Number of Ports:
16
Connector Type:
RJ-45
Network Technology:
Token Ring
Management Type:
Managed
Power Module:
IPD SCS4805S1 (38-60VDC in, 48VDC nominal, 2500mA max)
Input Voltage (Power Module):
38VDC to 60VDC, 48VDC nominal
Max Current (Power Module):
2500mA
Chipset / Controller:
SynOptics 104-315-A (multiple ICs on board)
Crystal Frequency:
14.745600 MHz (Pletronics PT100-3E)
Country/Region of Manufacture:
United States
Seller Notes:
Module only; no chassis or cables included.
Compatible With:
Bay Networks / SynOptics Lattisnet Token Ring chassis
PCB Silkscreen:
HDB T.R. ACTIVE/RETIMING HOST
Condition Notes:
Bay Networks 5505P Token Ring Active Retiming Host Module. Pulled from a working environment. Inspected and in good used condition. Light wear from prior rack use. No visible damage. Please contact us with any questions.
