The B&K 1076 Television Analyst is a vintage benchtop pattern generator and television service instrument built around a vacuum tube chassis. Manufactured by B&K Precision (then known as B&K Manufacturing Co.), this instrument was designed to inject test signals into television receivers to isolate and diagnose faults in video, sync, color, IF, and high-voltage circuits — without requiring a broadcast signal. It is a self-contained analog service tool from the era of vacuum tube televisions.

Specifications & What's Included

• Manufacturer: B&K Precision (B&K Manufacturing Co.)
• Model: 1076 Television Analyst

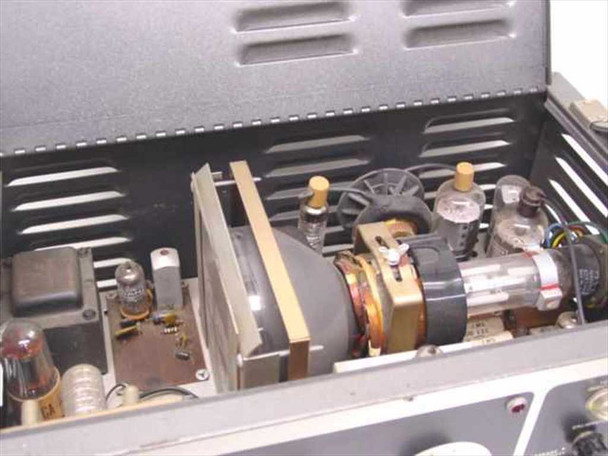

• Internal construction: Vacuum tube (valve) chassis
• Form factor: Benchtop/portable with carry handle

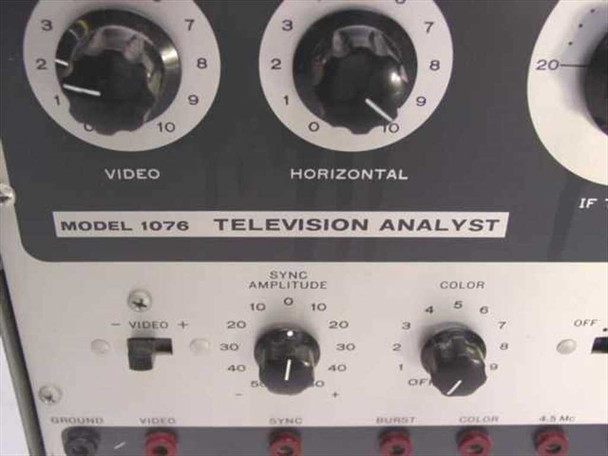

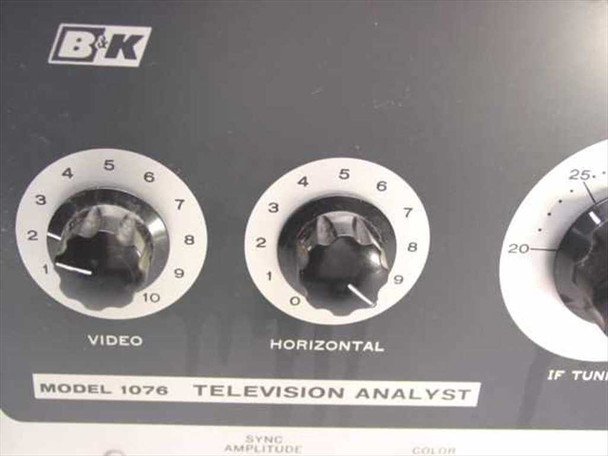

• Front-panel controls: Video level, Horizontal, IF Tuning, Sync Amplitude (+/–), Color, Burst
• Output jacks: Ground, Video, Sync, Burst, Color, 4.5 Mc (audio/intercarrier)

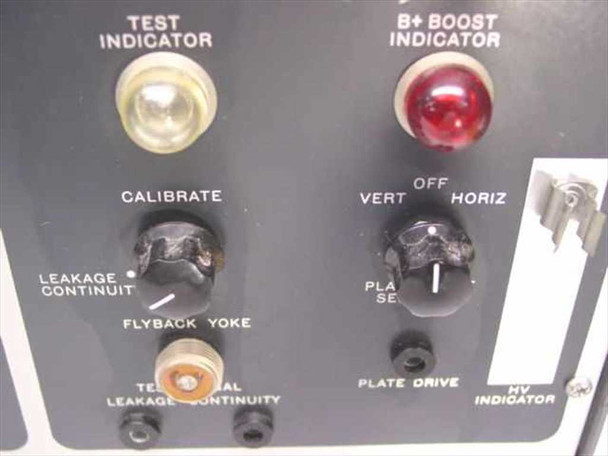

• Indicator lamps: Test Indicator (amber), B+ Boost Indicator (red), HV Indicator
• Additional test functions: Flyback/Yoke leakage and continuity, Plate Drive, Calibrate

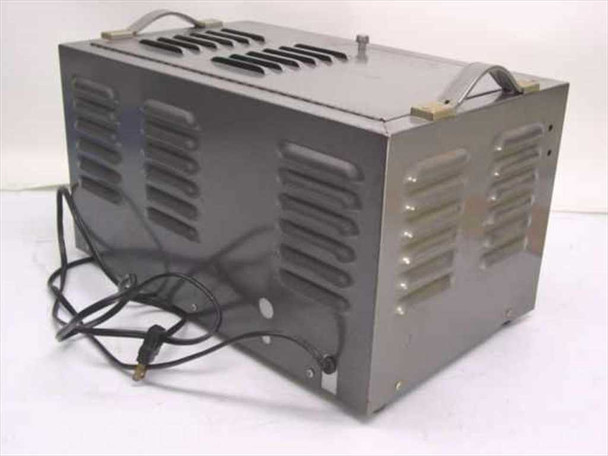

• Chassis: Vented aluminum/steel enclosure with carry handle; louvered rear and sides for ventilation

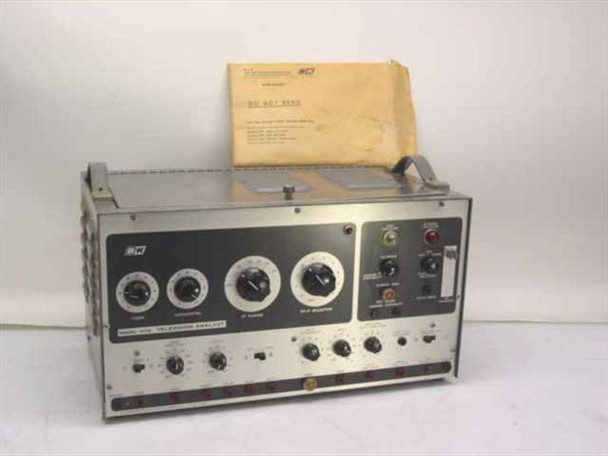

• Includes: What appears to be original documentation insert
• Power: AC line cord attached (visible at rear)
