Astec ATX202-3545 200W ATX Power Supply Gateway 6500460 Desktop PC 100-240V
The Astec ATX202-3545 is a 200-watt ATX form-factor desktop power supply originally supplied with Gateway desktop computers. Made by Astec (a long-established OEM power supply manufacturer), this unit carries Gateway part number 6500460 and provides all standard ATX output rails across a full attached cable harness. Input voltage is auto-switching between 100–120V and 200–240V, making it compatible with both North American and international AC mains.
Specifications & What's Included
- Brand: Astec
- Model: ATX202-3545
- Gateway Part Number: 6500460 / 6500323
- Form Factor: ATX desktop
- Max Continuous Output Power: 200W
- Input: 100–120V ~ 5A / 200–240V ~ 3A, 50/60Hz (auto-switching)
- Output +12V: 6.0A MAX
- Output +5V: 18A MAX
- Output +3.3V: 10A MAX
- Output -5V: 0.3A MAX
- Output -12V: 0.3A MAX
- Output +5VSB (standby): 1.7A MAX
- Main connector: ATX 20-pin (P1)
- Additional connectors: Molex 4-pin peripheral (multiple), auxiliary ATX connectors (P5, P8)

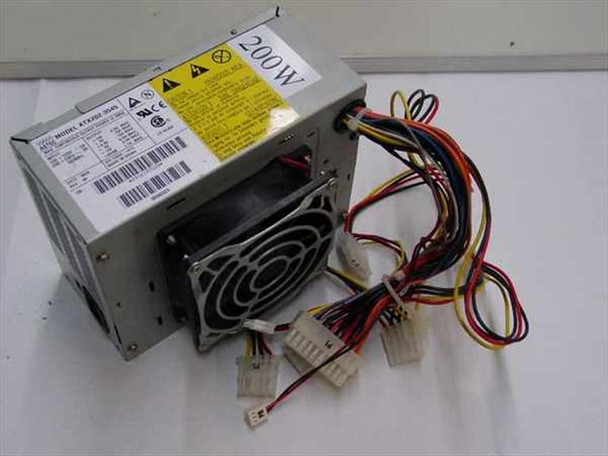

- Cooling: 80mm case fan
- Certifications: UL, CSA, TÜV

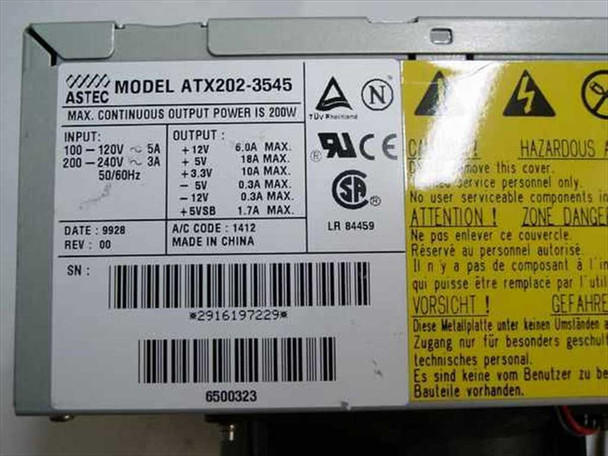

- Date code: 9928 (manufactured week 28, 1999)
- Country of Manufacture: China
- Includes: power supply unit with all attached cables
Applications
ATX power supplies like the Astec ATX202-3545 are the internal power source for AT-form-factor and ATX-standard desktop PCs, converting AC mains power to the regulated DC voltages (+12V, +5V, +3.3V, and others) that the motherboard, drives, and expansion cards require. This unit was originally spec'd for late-1990s Gateway desktop systems and is a direct replacement for any compatible Gateway machine calling for Gateway PN 6500460. With its 200W output ceiling and ATX 20-pin connector, it suits lower-draw desktop configurations of that era — typically single-drive, single-optical-drive tower or mini-tower systems. The auto-switching input (100–240V) also means it can be used in 230V markets without a separate transformer. It remains a useful service replacement for legacy Gateway desktop systems still in operation.
This Astec ATX202-3545 200W ATX desktop power supply has been bench-tested at our facility and is in good working condition. It supplies all standard ATX output rails (+12V, +5V, +3.3V, -5V, -12V, +5VSB) and includes the full attached wiring harness with ATX 20-pin main connector and Molex peripheral connectors. The unit shows normal cosmetic wear consistent with prior use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Astec |
Model: |
ATX202-3545 |
MPN: |
ATX202-3545 |
Secondary Model: |
Gateway 6500460 |
SKU: |
16982 |
Type: |
ATX Desktop Power Supply |
Maximum Output Power: |
200W |
Form Factor: |
ATX |
Input Voltage: |
100–120V / 200–240V AC |
Input Current: |
5A (100–120V) / 3A (200–240V) |
Input Frequency: |
50/60 Hz |
Output +12V: |
6.0A MAX |
Output +5V: |
18A MAX |
Output +3.3V: |
10A MAX |
Output -5V: |
0.3A MAX |
Output -12V: |
0.3A MAX |
Output +5VSB: |
1.7A MAX |
Main Connector: |
ATX 20-pin |
Modular: |
No |
Compatible With: |
Gateway desktop systems |
Country/Region of Manufacture: |
China |
Power Requirements: |
100–240V AC, 50/60Hz |
Certifications: |
UL, CSA, TÜV |
Seller Notes: |
Bench-tested and in good working condition. Includes all attached power cables. |
Condition Notes: |
This Astec ATX202-3545 200W ATX power supply has been bench-tested at our facility and is in good working condition. Normal cosmetic wear from prior use. All output rails present; full cable harness included. |
