Description
AWM Mold Tech AG Netstal DC Injection Mold Head CD DVD Blu-ray Disc 15x15x11

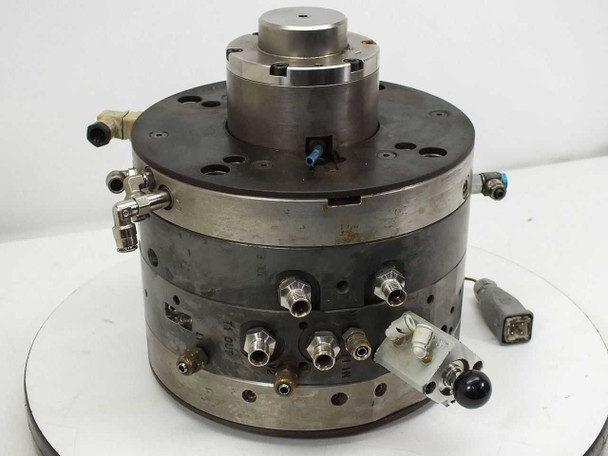

Injection mold head assembly for Netstal DC machines used in optical disc manufacturing. Produces CD, DVD, and Blu-ray discs with dimensions of 15" x 15" x 11".
Specifications & What's Included
- Brand: AWM Mold Tech AG
- Model: Netstal DC Injection Mold Head (MPN: W000157)
- Compatible With: Netstal DC injection molding machines
- Disc Formats: CD, DVD, Blu-ray
- Pneumatic Cylinder: SMC CDQ2WB25-10D
- Temperature Range: -10 to +60°C
- Coolant Ports: T1 OUT, T2 IN, T3 OUT, V1 IN, V2
- Connector: Multi-pin rectangular industrial connector with attached cable
- Origin: Switzerland
Applications
This mold head was used in high-volume disc replication facilities for pressing optical media. Netstal DC injection systems were widely deployed in CD, DVD, and Blu-ray manufacturing operations through the 2000s and 2010s. The tooling integrates with the machine's pneumatic and cooling systems to cycle discs at production rates. Compatible replacement for equivalent Netstal DC stations.
Condition: Used

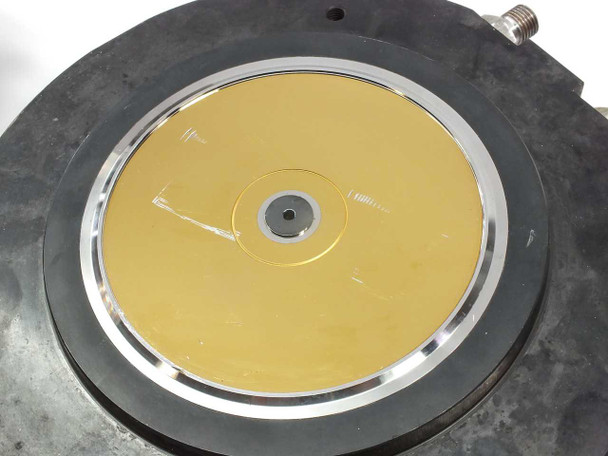

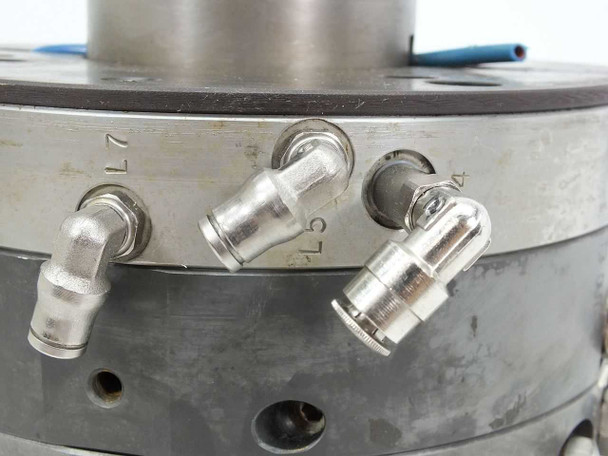

This AWM Mold Tech AG Netstal DC injection mold head has been inspected and is in good used condition. It was pulled from a working disc manufacturing environment where it was actively in use. The mold body shows the normal wear you'd expect from production use — surface scuffing and light marks on the steel body — but there is no visible structural damage. The disc cavity and stamper ring visible on the top and bottom faces appear intact and complete. The attached SMC CDQ2WB25-10D pneumatic cylinder and multi-pin electrical connector are present. All labeled coolant and fluid ports (T1 OUT, T2 IN, T3 OUT, V1 IN, V2) are present with fittings attached. Due to size and weight, this item requires freight shipment. Please view our photo set and contact us if you have any questions.
This AWM Mold Tech AG Netstal DC injection mold head has been inspected and is in good used condition. It was pulled from a working disc manufacturing environment where it was actively in use. The mold body shows the normal wear you'd expect from production use — surface scuffing and light marks on the steel body — but there is no visible structural damage. The disc cavity and stamper ring visible on the top and bottom faces appear intact and complete. The attached SMC CDQ2WB25-10D pneumatic cylinder and multi-pin electrical connector are present. All labeled coolant and fluid ports (T1 OUT, T2 IN, T3 OUT, V1 IN, V2) are present with fittings attached. Due to size and weight, this item requires freight shipment. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
AWM Mold Tech AG |
Model: |
Netstal DC Injection Mold Head |
MPN: |
W000157 |
Type: |
Optical Disc Injection Mold Head |
SKU: |
45559 |
Compatible With: |
Netstal DC injection molding machines |
Application: |
CD, DVD, Blu-ray disc manufacturing |
Disc Formats: |
CD, DVD, Blu-ray |
Overall Dimensions: |
15" x 15" x 11" |
Pneumatic Cylinder: |
SMC CDQ2WB25-10D |
Temperature Range (Pneumatic): |
-10 to +60°C |
Pressure Rating (Pneumatic): |
bar rated (per SMC label) |
Coolant Ports: |
T1 OUT, T2 IN, T3 OUT, V1 IN, V2 labeled ports |
Connector Type: |
Multi-pin rectangular industrial connector |
Form Factor: |
Cylindrical tooling head |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes SMC pneumatic cylinder and attached multi-pin connector cable. Requires freight shipment. |
Country/Region of Manufacture: |
Switzerland |
Condition Notes: |
Used AWM Mold Tech AG Netstal DC injection mold head pulled from a working disc production environment. Inspected, good used condition with normal production wear. SMC pneumatic cylinder and connector present. Freight shipment required. |
