Description
AVP RPT48 Series 24-Port Audio Patch Panel 1/4" TRS Jacks 19" Rackmount 2U

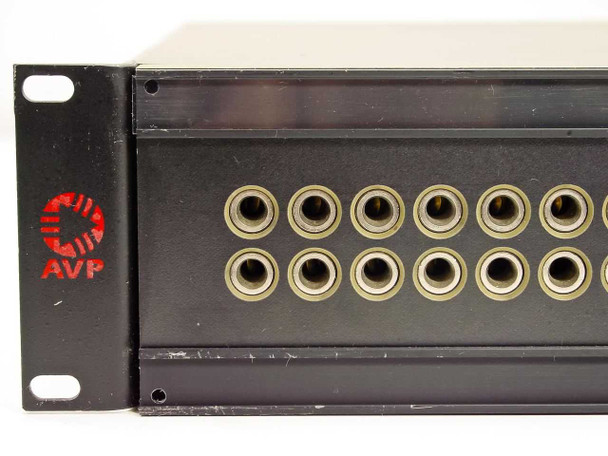

The AVP RPT48 is a 24-port analog audio patch panel built for professional rack installation. It provides 24 channels of 1/4" TRS (tip/ring/sleeve) jacks on the front face for quick signal patching, with a rear panel featuring dual A and B bus rows that expose individual tip, ring, and sleeve access points for each channel — allowing normalled, half-normalled, or fully open configurations. The unit is manufactured by AVP MFG & Supply and was made in Canada.
Specifications & What's Included
- Model: AVP RPT48 Series
- Number of ports: 24
- Front connector type: 1/4" TRS (tip/ring/sleeve) jacks
- Signal type: balanced analog audio

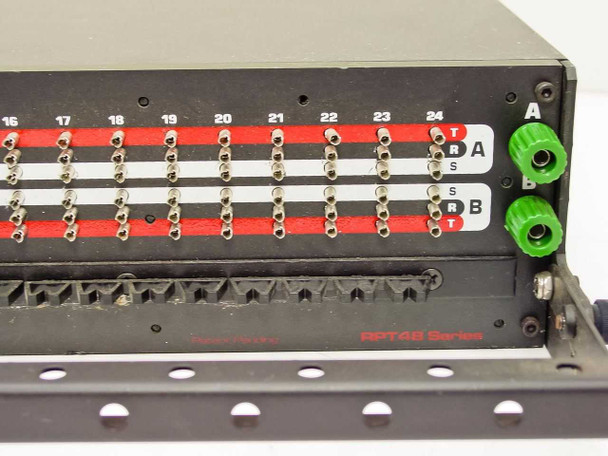

- Rear bus configuration: dual bus rows — A and B — with individual T (tip), R (ring), and S (sleeve) access rows per channel
- Rear termination: green-capped termination connectors on bus ends (A and B), visible at right side of rear panel
- Channel numbering: 1–24, labeled on rear panel
- Form factor: 19" rackmount, 2U
- Country of manufacture: Canada (AVP MFG & Supply)
- Included: panel only — no cables or accessories
Applications
Audio patch panels like the AVP RPT48 are standard infrastructure in recording studios, broadcast control rooms, post-production facilities, and installed sound systems. They provide a centralized point for routing balanced analog audio signals between outboard gear — preamps, compressors, EQs, effects processors, console inserts, and tape/DAW interfaces — without requiring permanent hard-wiring. The dual A/B bus row design on the rear gives engineers direct access to tip, ring, and sleeve on each channel, which is essential for setting up normalled connections (where signal flows through by default until a patch cable interrupts it) as well as fully open or half-normalled routing. AVP patch panels were widely used in North American broadcast and studio installations from the 1980s onward and remain compatible with any standard 19" rack. The 1/4" TRS format is common in professional analog audio environments where balanced, low-impedance interconnects are required.
This AVP RPT48 Series 24-port audio patch panel has been visually inspected and appears to be in good working condition. The chassis and front panel show light surface wear and minor scuffing consistent with rack use. The 1/4" TRS jacks appear clean and intact. The rear bus access points and termination connectors are present and intact as visible in the photos. No cables or accessories are included — panel only. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
AVP |
Model: |
RPT48 |
MPN: |
RPT48 |
Type: |
Audio Patch Panel |
SKU: |
39472 |
Number of Ports: |
24 |
Connector Type: |
1/4" TRS (Tip/Ring/Sleeve) |
Form Factor: |
Rackmount |
Rack Size: |
2U |
Rack Width: |
19" |
Bus Configuration: |
Dual bus (A and B rows) |
Signal Type: |
Balanced Analog Audio |
Country/Region of Manufacture: |
Canada |
Compatible With: |
Standard 19" EIA rack enclosures |
Seller Notes: |
Unit only; no cables or accessories included. |
Condition: |
Used – Inspected and Tested |
Condition Notes: |
AVP RPT48 24-port audio patch panel, visually inspected and in good working condition. Light rack wear on chassis. 1/4" TRS jacks clean and intact. Rear bus connectors present. Panel only — no cables included. |
