Description
Avaya 008 MLX 8-Port Digital Telephone Module Merlin Legend PBX 517B21

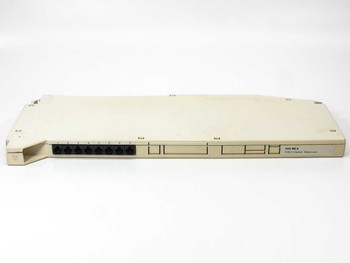

The Avaya 008 MLX is an 8-port digital station module designed to support up to eight MLX digital telephones within the Merlin Legend PBX system. The module slots into the Merlin Legend control unit cabinet and connects directly to MLX-series digital handsets via standard modular cabling. It is identified by part number 517B21 and carries the label "8 MLX (Digital) Telephones" on the module face.
Specifications & What's Included
- Model: 008 MLX
- Part Number: 517B21
- Secondary Part Number: 107798183
- Port count: 8 MLX digital station ports
- Port type: RJ-style modular jacks (ports labeled 17–24 on rear panel)
- Interface: MLX digital station signaling

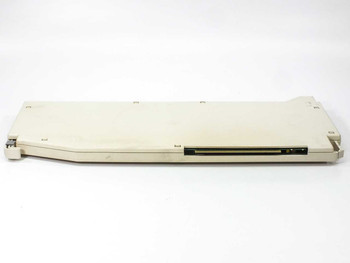

- Backplane: gold-pin edge connector for Merlin Legend control unit slot
- Form factor: slot-in module / card for Merlin Legend cabinet
- Compatible with: AT&T / Lucent / Avaya Merlin Legend PBX systems
- Included: module only — no cables or mounting hardware
Applications
The Avaya 008 MLX module was designed for use in the AT&T / Lucent / Avaya Merlin Legend business telephone system, a widely deployed PBX platform throughout the 1990s and into the 2000s. The Merlin Legend used a modular card-cage architecture: station modules like the 008 MLX were installed into the control unit to define the number and type of telephone sets supported. The 008 MLX specifically provides eight ports for MLX-series digital handsets, which used a proprietary digital protocol over standard twisted-pair wiring. These modules are still sought after by businesses and support organizations maintaining Merlin Legend systems, as replacement and expansion cards are no longer manufactured and must be sourced from the used market. Compatible MLX telephone sets include the MLX-5, MLX-10, MLX-16, MLX-20L, and related models.
This Avaya 008 MLX 8-Port Digital Telephone Module has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The module shows light wear typical of a used PBX card — the housing is intact and the port connectors appear clean. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Avaya |
Model: |
008 MLX |
MPN: |
517B21 |
Secondary Model: |
517B21 |
SKU: |
30374 |
Type: |
Digital Telephone Station Module |
Number of Ports: |
8 |
Port Type: |
MLX Digital (RJ-type) |
Compatible With: |
Avaya Merlin Legend PBX |
Compatible With 2: |
AT&T / Lucent Merlin Legend System |
Interface: |
MLX Digital Station |
Form Factor: |
Slot-In Module / Card |
Connector Type: |
RJ-style modular jacks |
Seller Notes: |
Module only — no cables or mounting hardware included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Avaya 008 MLX digital telephone module has been inspected and is in good used condition. Pulled from a working environment where it was previously in use. Shows light wear. Please view our photos and contact us with any questions. |
