Description
Avaya Lucent Merlin 016 16-Port Basic Telephone Sets Module w/ Ring Generator

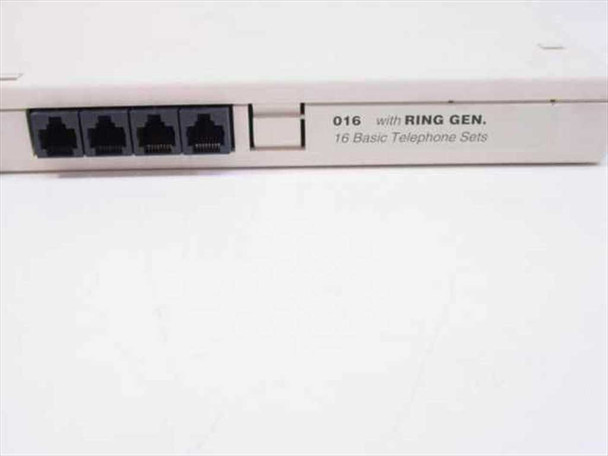

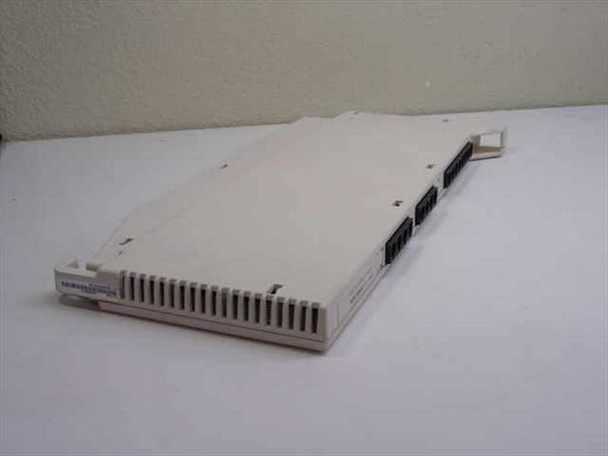

The Avaya Merlin 016 is a KSU expansion module that adds support for up to 16 basic (analog) telephone sets to a Merlin key system, with a built-in ring generator included. It slides into the Merlin KSU via a card-edge backplane connector and presents 16 RJ11 station ports on the module's rear edge for connecting analog handsets throughout the installation.
Specifications & What's Included
- Model: 016 with Ring Generator
- Description: 16 Basic Telephone Sets expansion module
- Compatible system: Avaya / Lucent / AT&T Merlin KSU (Merlin II, Merlin Legend series)
- Station ports: 16 × RJ11 analog telephone jacks
- Ring generator: Built-in (integrated)

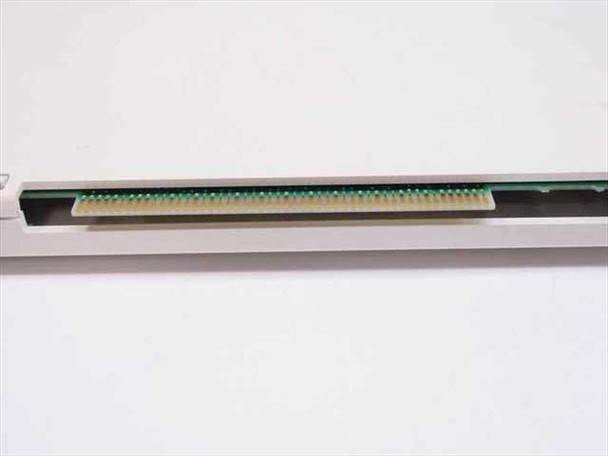

- Backplane interface: Card-edge connector for Merlin KSU slot
- Form factor: KSU expansion card / plug-in module
- Housing: Beige/cream plastic, wedge-profile card form
- Includes: Module only — no cables or additional hardware
Applications
The Merlin key system was AT&T's widely deployed small-business phone platform, introduced in the early 1980s and continued through the Lucent and Avaya eras into the 1990s and early 2000s. The 016 module is an analog station card — it expands the KSU to serve standard (non-proprietary) analog telephone sets, making it useful for installations where basic handsets or fax machines need to share the Merlin system alongside proprietary Merlin feature phones. The built-in ring generator allows these analog sets to ring normally without requiring an external ring source. The module plugs directly into a slot in the Merlin KSU cabinet, making it a straightforward plug-in expansion for businesses growing their Merlin installations or replacing a failed card. These modules remain in demand for organizations still running legacy Merlin II or Merlin Legend systems.
This Avaya Lucent Merlin 016 Basic Telephone Sets Module with Ring Generator was pulled from a working environment where it was previously in use. It has been visually inspected and photographed. The housing is in good overall condition with light surface wear typical of a removed PBX expansion card. The card-edge backplane connector and RJ11 station ports all appear clean and undamaged. Please review our photos and contact us if you have any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Avaya |
Model: |
016 |
MPN: |
016 |
Type: |
PBX Expansion Module – Basic Telephone Sets w/ Ring Generator |
SKU: |
30369 |
Compatible With: |
Avaya Merlin KSU (Merlin II, Merlin Legend series) |
Number of Ports: |
16 |
Port Type: |
RJ11 / Analog Telephone |
Ring Generator: |
Included (built-in) |
Connector Type: |
RJ11 (analog station ports) + card-edge backplane connector |
Form Factor: |
KSU Expansion Card / Module |
Interface Type: |
Analog (POTS) – basic telephone station ports |
System Compatibility: |
AT&T / Lucent / Avaya Merlin KSU |
Seller Notes: |
Module only — no cables or additional hardware included |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Avaya Merlin 016 16-port telephone module was pulled from a working environment. Visually inspected; housing shows light surface wear typical of used PBX equipment. Card-edge connector and RJ11 ports appear clean and undamaged. |
