Description
Avaya Definity 109478 BCS SCC PT Cabinet R6 ECS PBX TN744D TN2464BP

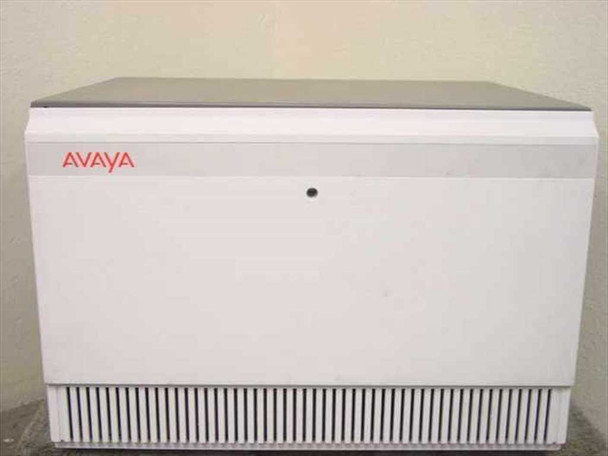

Enterprise Communication Server cabinet for the Avaya Definity PBX system. This floor-standing unit provides call processing and DS1 interface connectivity for business telephone networks.
Specifications & What's Included

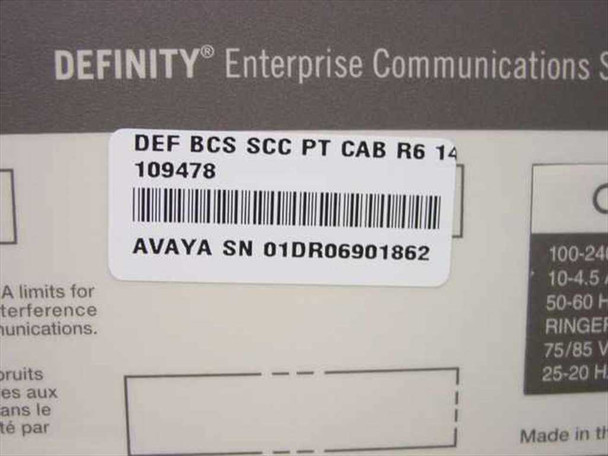

- Model: Avaya Definity 109478 (BCS SCC PT CAB R6 14)

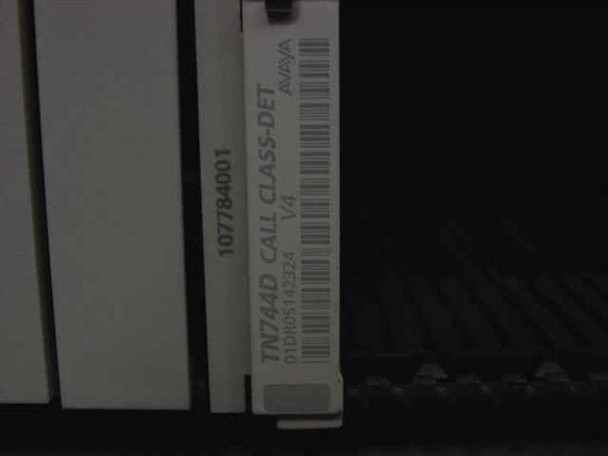

- Installed Cards: TN744D Call Class-Detector V4 and TN2464BP DS1 Interface 24/32 HV2
- Expansion Slots: 18 slots (Rows A and B) with expansion interface capability
- Connectors: AMP/Champ 50-pin telco connectors for DS1 (T1/E1)
- Power: 100-240V AC, 50-60Hz
- Regulatory: UL Listed, CSA Certified, FCC Registered
Applications
The Avaya Definity ECS cabinet was used in enterprise telecommunications environments to manage call routing, classification, and DS1 trunk connectivity. It served as a central processing unit for medium to large business PBX installations, handling inbound call distribution and interface management between corporate networks and telecom carriers.
Condition: Used

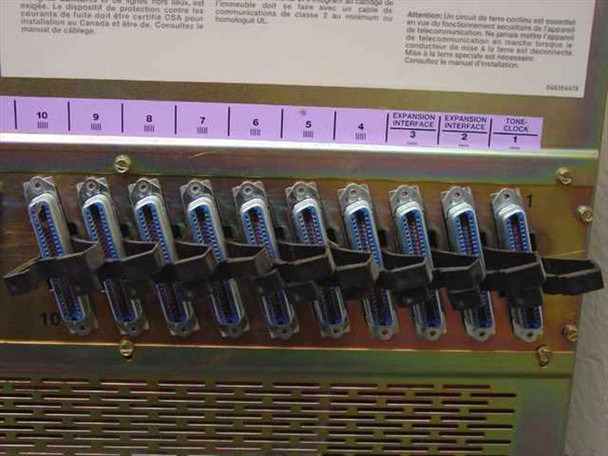

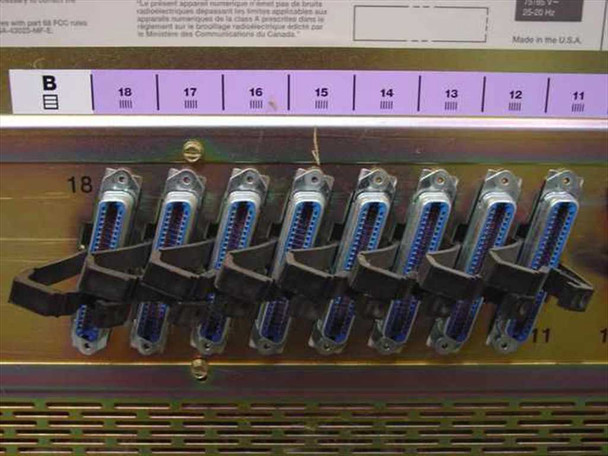

This Avaya Definity 109478 BCS SCC Enterprise Communication Server cabinet has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The cabinet exterior shows normal wear consistent with an office/data center deployment. The installed cards — TN744D Call Classifier (V4, PN 107784001) and TN2464BP DS1 Interface 24/32 (HV2, PN 108825892) — are present and seated. The rear telco connector rows (slots 1–18) and Champ connectors appear intact with no obvious physical damage. Please review our photos for a full look at cosmetic condition and contact us with any questions.
This Avaya Definity 109478 BCS SCC Enterprise Communication Server cabinet has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The cabinet exterior shows normal wear consistent with an office/data center deployment. The installed cards — TN744D Call Classifier (V4, PN 107784001) and TN2464BP DS1 Interface 24/32 (HV2, PN 108825892) — are present and seated. The rear telco connector rows (slots 1–18) and Champ connectors appear intact with no obvious physical damage. Please review our photos for a full look at cosmetic condition and contact us with any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Avaya |
Model: |
109478 |
MPN: |
109478 |
Secondary Model: |
DEF BCS SCC PT CAB R6 14 |
Type: |
Enterprise Communication Server / PBX Cabinet |
SKU: |
30065 |
Product Line: |
Avaya Definity ECS |
Cabinet Configuration: |
BCS SCC PT CAB R6 14 |
Included Card 1 Model: |
TN744D |
Included Card 1 Description: |
Call Class-Detector (Call Classifier), V4 |
Included Card 1 Part Number: |
107784001 |
Included Card 2 Model: |
TN2464BP |
Included Card 2 Description: |
DS1 Interface 24/32, HV2 |
Included Card 2 Part Number: |
108825892 |
Power Requirements: |
100-240V AC, 10-4.5A, 50-60Hz |
Ringer Voltage: |
75/85V, 25-20 Hz |
FCC Registration: |
AV1USA-43023-MF-E |
Regulatory: |
UL Listed (E201962 ITE), CSA (LR56260) |
FCC Label / Product Code: |
SD-66984-01 / J58890H |
Country/Region of Manufacture: |
United States |
Form Factor: |
Floor-Standing Cabinet |
Expansion Slots: |
Multiple — slots 1-18 visible (Rows A and B), expansion interface slots present |
Interface Type: |
DS1 (T1/E1), Expansion Interface, Tone Clock |
Connector Type: |
AMP/Champ 50-pin telco connectors (multiple) |
Protocol: |
T1 / DS1 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes TN744D Call Classifier V4 and TN2464BP DS1 Interface 24/32 cards installed |
Condition Notes: |
Avaya Definity 109478 BCS SCC ECS PBX Cabinet, inspected, in good used condition. Pulled from a working environment. Includes TN744D Call Classifier V4 and TN2464BP DS1 Interface 24/32 cards. Please contact us with questions. |
