AutomationDirect SQM08D Relay Socket QM2 Series w/ QM2N1-D24 Cube Relay 5A

(No reviews yet) Write a Review
SKU:
49533
MPN:
SQM08D
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

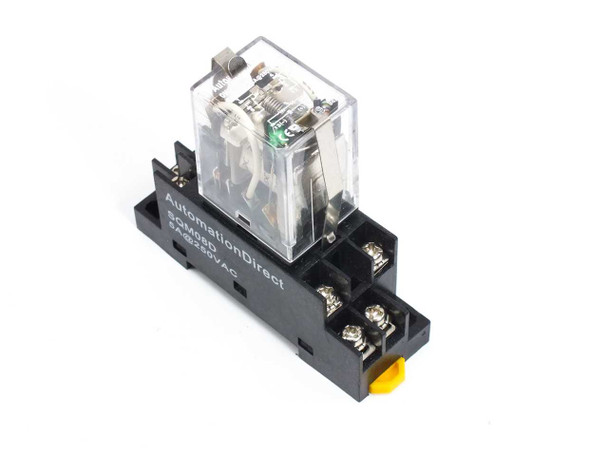

  • AutomationDirect SQM08D relay socket with QM2N1-D24 cube relay installed — front-left angled view showing socket label and screw terminals
  • AutomationDirect SQM08D relay socket with QM2N1-D24 cube relay — rear-left angled view showing internal relay coil and spring contacts through clear cover

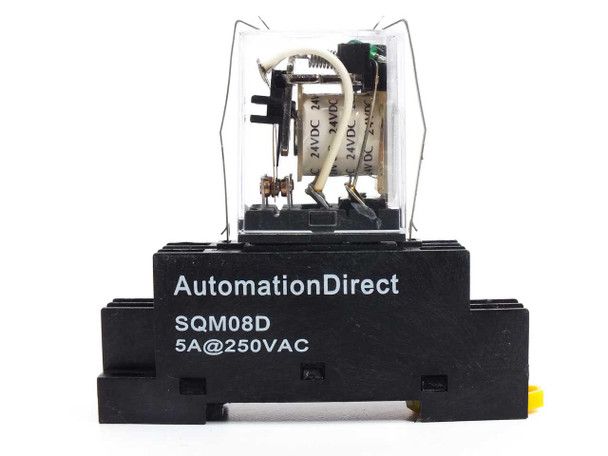

  • AutomationDirect SQM08D relay socket front face showing brand name and 5A@250VAC rating label with relay seated in socket
  • QM2N1-D24 cube relay top closeup showing model label: QM2N1-D24, 24VDC, 5A@250VAC, wiring diagram, CE and UL marks, and date code 9423
$14.20
Was: $30.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

AutomationDirect SQM08D Relay Socket QM2 Series w/ QM2N1-D24 Cube Relay 5A 250VAC

The AutomationDirect SQM08D is a DIN rail-mount relay socket designed for the QM2 series of cube relays. This listing includes the SQM08D socket with a QM2N1-D24 cube relay already installed. The QM2N1-D24 is a 4-pole cube relay with a 24VDC coil, rated for switching loads up to 5A at 250VAC.

Specifications & What's Included

  • Socket Model: AutomationDirect SQM08D
  • Compatible Relay Series: QM2 Series
  • Relay Included: QM2N1-D24 (installed)
  • Coil Voltage: 24VDC
  • Contact Rating: 5A @ 250VAC
  • Number of Poles: 4
  • Mounting: DIN rail
  • Socket terminals: screw-type, visible on front face
  • Relay cover: clear polycarbonate, intact
  • Certifications: CE, UL (visible on relay label)
  • Includes: SQM08D socket with QM2N1-D24 cube relay seated

Applications

The QM2 series cube relays and SQM08D sockets from AutomationDirect are used in industrial control panels, machine automation wiring, and PLC output circuits where a compact, socketed relay is needed for easy field replacement. The DIN rail socket format makes them standard components in control cabinet builds — the relay snaps into the socket and wires connect directly to the socket's screw terminals, so the relay itself can be swapped without rewiring. These are common in conveyor systems, packaging machinery, HVAC controls, and general factory automation applications. The 24VDC coil voltage makes them compatible with most PLC and industrial controller output modules, and the 5A contact rating is suitable for switching small motors, solenoids, pilot lights, and other control loads.

Condition: Used
This AutomationDirect SQM08D relay socket with QM2N1-D24 cube relay has been inspected and appears to be in good used condition. The relay and socket show normal handling wear consistent with light industrial use. The clear relay cover is intact, screw terminals are undamaged, and the QM2N1-D24 relay is seated in the socket. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
AutomationDirect
Model:
SQM08D
MPN:
SQM08D
Secondary Model:
QM2N1-D24
Type:
Cube Relay Socket with Relay
SKU:
49533
Relay Series:
QM2 Series
Contact Rating:
5A @ 250VAC
Coil Voltage:
24VDC
Relay Included:
Yes — QM2N1-D24 cube relay installed
Mounting Type:
DIN Rail
Number of Poles:
4
Seller Notes:
Includes SQM08D relay socket with QM2N1-D24 24VDC cube relay installed.
Country/Region of Manufacture:
China
Condition Notes:
This AutomationDirect SQM08D relay socket with QM2N1-D24 cube relay has been inspected and appears to be in good used condition. Normal handling wear; cover intact, terminals undamaged.
