AudioControl D4400 Director 16-Channel Network Power Amplifier 3U Rackmount
The AudioControl D4400 Director is a 16-channel rackmount network power amplifier designed for whole-home and commercial multi-zone audio distribution. It combines a 16-channel amplifier with digital signal processing, an Ethernet control interface, and zone-level management into a single 3U rack unit. The D4400 is part of AudioControl's Director product line, intended for custom installation environments where centralized amplification and network-based control of multiple audio zones are required.
Specifications & What's Included
- Model: AudioControl D4400 Director
- Number of Channels: 16
- Output Power: 100W per channel at 8 Ohms (All Channels Driven)
- Output Power: 200W per channel at 4 Ohms (All Channels Driven)
- Bridgeable channels for increased power output
- Form Factor: 3U Rackmount
- Network Interface: Ethernet (DHCP) for status monitoring, source switching, and 12V trigger control
- Digital Signal Processing (DSP) on all 16 channels and zones
- Network-programmable graphic and parametric equalization with user memories
- Programmable electronic crossover for local subwoofer applications
- Subsonic filter
- AudioControl LightDrive anti-clipping speaker protection
- Digital signal sense across all channels and zones
- Assignable zone and amplifier names
- Local and Dual Bus inputs with pass-through
- 12V trigger input and output
- Power Requirements: 120V / 240V AC, 50/60Hz (selectable)
- AC Fuse: 10A at 120VAC / T5AL at 240VAC
- Includes rack mounting brackets
Applications
The AudioControl D4400 Director was designed for structured-wiring whole-home audio installations and commercial distributed audio systems where a single rack-mounted amplifier must independently drive multiple speaker zones. It is well-suited to custom AV integration projects, hospitality environments, and commercial facilities that require per-zone DSP control, network programmability, and the ability to manage sources and trigger devices across a building. The Ethernet-based DHCP control interface allows integration with network-based home automation systems. AudioControl products of this type are commonly deployed by custom integrators in residential and light-commercial environments requiring professional-grade multi-zone amplification in a compact rackmount footprint.

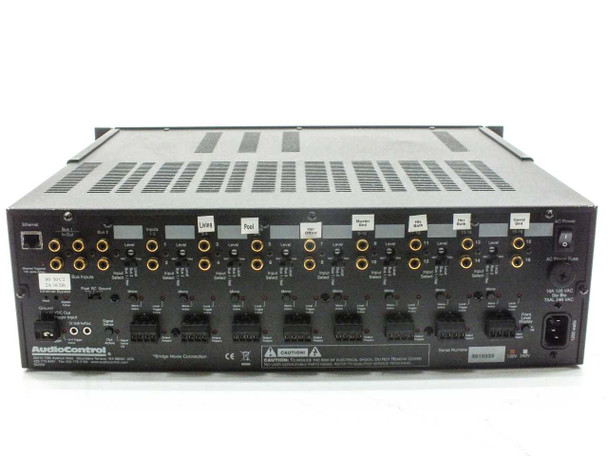

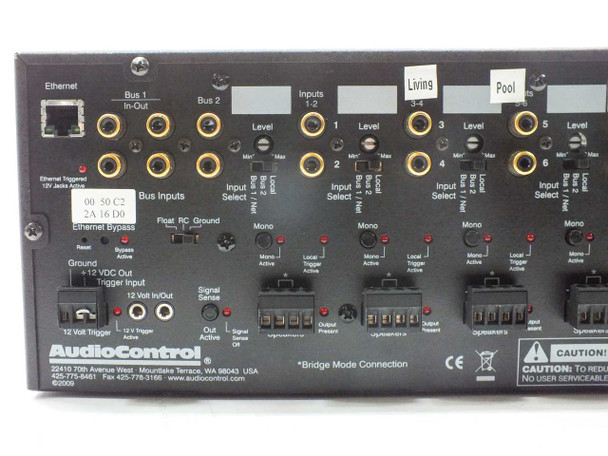

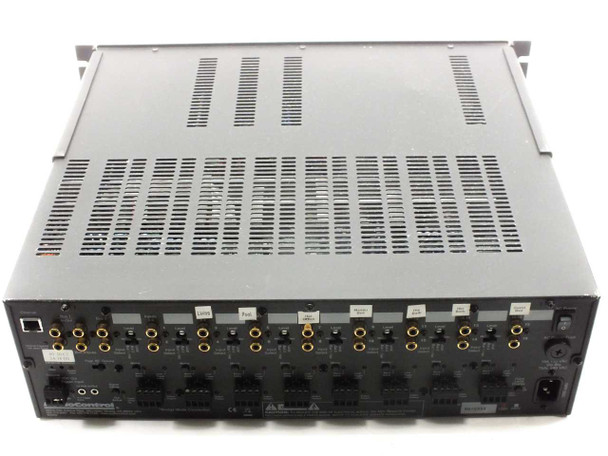

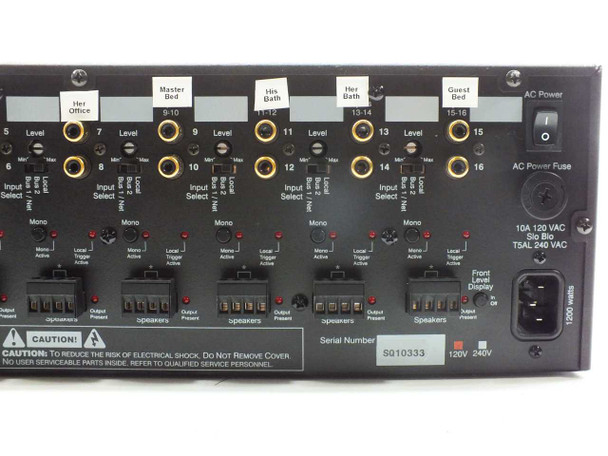

This AudioControl D4400 Director 16-Channel Network Power Amplifier powers on, but during our bench evaluation we were unable to obtain audio output from any channel. We are not specialists in this product's network setup and configuration, and it is possible the unit requires software or network programming to function correctly — however, we cannot confirm this and are therefore listing it honestly as-is for parts or repair. The unit is in reasonably clean cosmetic condition with normal wear consistent with installed use. The rear panel shows all zone inputs, Bus 1/Bus 2 connectors, Ethernet port, speaker terminal blocks, and IEC AC inlet all appear intact and undamaged. Rack mounting brackets are included. This unit is sold strictly as-is with no functionality guarantee. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
AudioControl |
Model: |
D4400 |
MPN: |
D4400 |
Type: |
Multi-Channel Network Power Amplifier |
SKU: |
52564 |
Number of Channels: |
16 |
Output Power per Channel: |
100W at 8 Ohms (All Channels Driven) |
Output Power Bridged: |
200W at 4 Ohms (All Channels Driven) |
Form Factor: |
3U Rackmount |
Network Interface: |
Ethernet (DHCP) |
Control Interface: |
Ethernet, 12V Trigger |
Signal Processing: |
DSP with Graphic & Parametric EQ, Crossover |
Input Types: |
Local & Dual Bus Inputs with Pass Thru |
Power Requirements: |
120V / 240V AC, 50/60Hz |
AC Fuse: |
10A 120VAC / T5AL 240VAC |
Bridgeable: |
Yes |
Speaker Protection: |
AudioControl LightDrive Anti-Clipping |
Subsonic Filter: |
Yes |
Zone Control: |
16 independently controllable zones |
Rack Brackets: |
Included |
Country/Region of Manufacture: |
United States |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes rack brackets. Unit powers on but no audio output. Sold as-is. |
Condition Notes: |
AudioControl D4400 Director 16-ch network amplifier powers on but produced no audio output during testing. Sold strictly as-is for parts or repair — no functionality guarantee. Rack brackets included. Please contact us with questions. |
