Audio Access PX-700 Multiroom Audio Controller 8-Source 12-Output RS-232 PC

Audio Access PX-700 Multiroom Audio Controller 8-Source 12-Output RS-232 PC

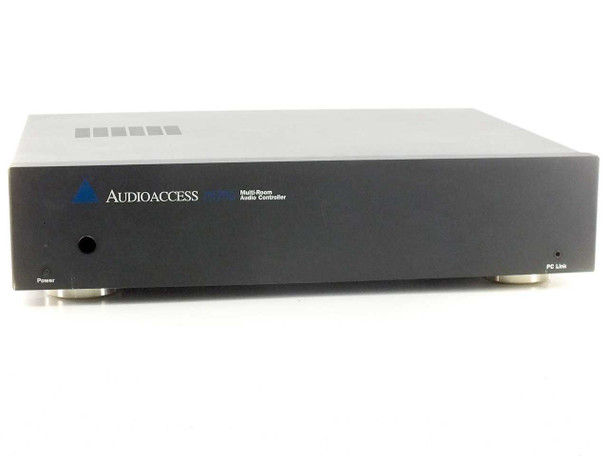

The Audio Access PX-700 is a whole-home audio distribution controller and expander designed to route up to eight audio sources to twelve separate zones or rooms. Manufactured by Madrigal Audio Laboratories in Middletown, Connecticut, the PX-700 features an onboard audio preamplifier circuit built to a separate-component standard. It supports PC-based programming via its PC Link port and RS-232 interface, allowing full IR library management including import/export utilities.

Specifications & What's Included

• Model: Audio Access PX-700
• Manufacturer: Madrigal Audio Laboratories, Middletown, CT USA
• Number of sources (inputs): 8

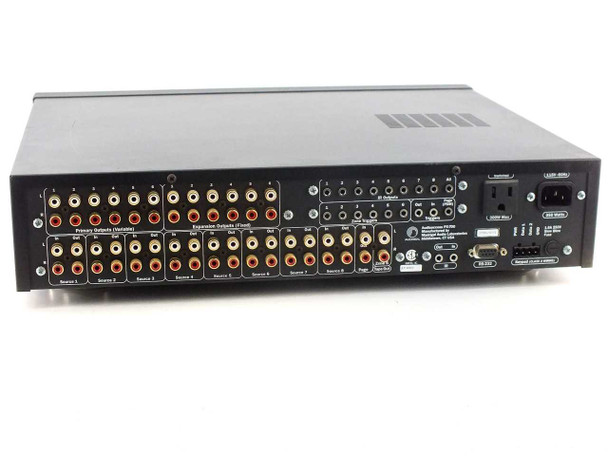

• Primary outputs: 4 (RCA)
• Expansion outputs: 8 (RCA) — 12 outputs total
• Per-zone tone control: Independent bass and treble adjustment per room
• Adjustable input levels: Yes, per source
• Control interface: RS-232 serial port
• PC Link port for programming via PC or laptop
• IR control: IR In and IR Out 3.5mm jacks on rear panel
• Trigger outputs: 12V trigger outputs on rear panel
• PC programming: Full IR library creation, maintenance, import/export
• Audio preamplifier: Designed and manufactured in the USA
• Certification: CSA NRTL/C (File LR 46800)
• Form factor: Low-profile desktop chassis, black anodized finish

Applications

The PX-700 is a distributed whole-home audio controller intended for residential and light commercial multiroom audio installations. It allows a central rack or equipment closet to serve as the hub for an entire audio distribution system, routing any of eight source components — such as CD players, tuners, streaming devices, or media servers — to up to twelve independent listening zones. Each zone gets its own bass and treble settings, so the sound in a kitchen, bedroom, or outdoor patio can be tuned separately without affecting other rooms. The RS-232 and PC Link interfaces make the PX-700 compatible with structured wiring control systems and allow custom installers to program IR codes and macros from a laptop. This type of controller was a mainstay of high-end residential AV integration projects from the late 1990s through the 2000s, when whole-home audio distribution was a standard feature of custom home theater and smart-home installations. The PX-700's Madrigal Audio pedigree — Madrigal was also the parent company of Mark Levinson — positioned it at the quality end of the multiroom distribution market.
