Description
AT&T Lucent 107573644 Definity Multimedia Link BRI ISDN DCP Desktop Module
The AT&T Lucent 107573644 Definity Multimedia Link is a desktop interface module designed for use with the AT&T Definity PBX telephone system. It provides a Basic Rate Interface (BRI) ISDN port and two Digital Communications Protocol (DCP) line ports, enabling multimedia and digital voice/data connectivity within a Definity PBX environment. The unit is powered via a communication circuit power source and connects to the PBX infrastructure through its rear RJ-style modular jacks.
Specifications & What's Included
- Manufacturer: AT&T / Lucent Technologies
- Part Number: 107573644
- Product Name: Definity Multimedia Link
- Feature Package: 1.0
- Form Factor: Desktop (compact flat enclosure)

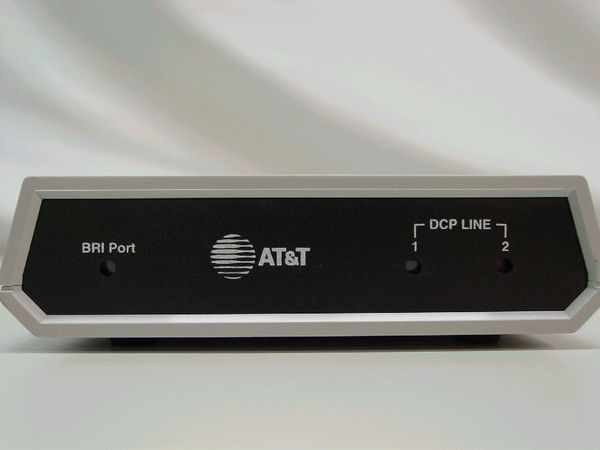

- Front Panel: BRI Port label, AT&T logo, DCP Line 1 and DCP Line 2 status indicators
- Rear Panel Ports: 1x BRI Port (RJ-style), 2x DCP Line ports labeled 1 and 2 (RJ-style)

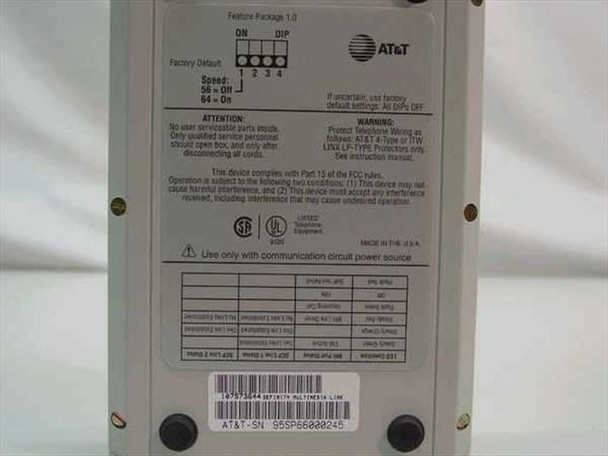

- Configuration: 4-position ON/DIP switch (Options) on rear panel — factory default all DIPs OFF
- DIP Switch Speed Settings: 56 = Off, 64 = On (as labeled on bottom)
- Power: Communication circuit power source (no external AC adapter)
- Standards: FCC Part 15 compliant; CSR/UL Listed
- Country of Manufacture: United States
- Compatible Telephone Wiring: AT&T 4-Type or ITW LIN4 LF-T type (per bottom label)
- Unit only — no accessories included
Applications
The Definity Multimedia Link was developed to extend the capabilities of AT&T's Definity PBX platform — a widely deployed enterprise telephone system introduced in the late 1980s and expanded through the 1990s under both AT&T and Lucent Technologies branding after the 1996 AT&T/Lucent split. The module interfaces with Definity G1, G3, and related system generations, providing ISDN Basic Rate Interface (BRI) connectivity for digital voice and data applications at the desktop level. The DCP (Digital Communications Protocol) ports connect to Definity digital telephone sets and adjunct devices, while the BRI port supports ISDN-capable terminals, videoconferencing endpoints, or digital data equipment. These modules were commonly used in corporate, government, and institutional environments running Definity PBX infrastructure. Today they remain sought after for maintaining and expanding legacy Definity systems still in service, as well as for laboratory and test use in PBX environments.
This AT&T Lucent 107573644 Definity Multimedia Link has been inspected and is in good used condition. The housing is clean with only minor cosmetic wear typical of lightly used desktop equipment. Front panel labels and port markings are clear and legible. The BRI Port and both DCP Line RJ jacks on the rear appear intact, and the 4-position DIP Options switch is present and undamaged. The bottom label, including the part number and FCC markings, is fully intact and readable. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
AT&T / Lucent Technologies |
Model: |
107573644 |
MPN: |
107573644 |
Type: |
ISDN BRI Multimedia Link Module |
SKU: |
11694 |
Compatible With: |
AT&T Definity PBX Systems |
Interface Type: |
BRI (Basic Rate Interface) ISDN, DCP |
Number of Ports: |
3 (1x BRI Port, 2x DCP Line Ports) |
Connector Type: |
RJ-style modular ports |
Form Factor: |
Desktop |
Country/Region of Manufacture: |
United States |
Power Requirements: |
Communication circuit power source (external) |
Feature Package: |
1.0 |
Protocol: |
DCP (Digital Communications Protocol), ISDN BRI |
Standards Compliance: |
FCC Part 15, CSR/UL Listed |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Unit only; no power adapter included. Inspected and in good condition. |
Condition Notes: |
AT&T Lucent 107573644 Definity Multimedia Link. Inspected and in good used condition. Housing is clean with minor cosmetic wear. BRI and DCP Line ports intact. DIP switch present. Labels clear. |
