Description
AT&T CS892A Level 6 Power Unit 76G7691 100-240V AC Custom Rectifier PSU
Custom rectifier power supply unit designed for AT&T telecommunications and data equipment. Provides regulated DC outputs with dual voltage AC input capability and requires external fan cooling for operation.
Specifications & What's Included
- Model: CS892A Level 6; MPN: 76G7691
- AC Input: 100-121V or 200-240V, 50-60 Hz
- DC Outputs: +30V at 10.2-10.4A; +5.6V at 10.4A
- Form Factor: Rack/Chassis Mount with high-density card-edge connector
- Safety: UL and CSA certified
- Power unit only; no accessories included
Applications
This unit was used in AT&T telecommunications infrastructure and enterprise switching systems that required multiple DC voltage rails. It serves as a custom power conversion module for rack-mounted equipment and was standard in Level 6 power distribution configurations. Typical applications include carrier-grade telecommunications platforms and data center power subsystems.
Condition: Used

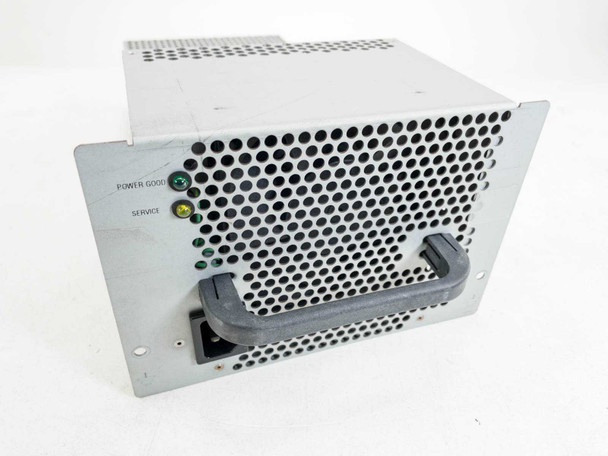

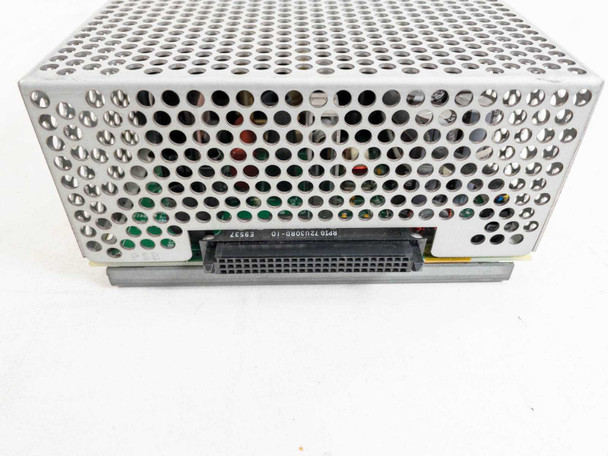

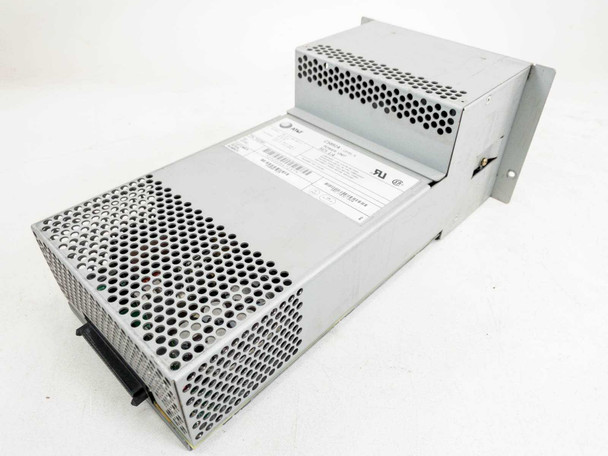

This AT&T CS892A Level 6 Power Unit (P/N 76G7691) has been tested at our facility and confirmed to be in working order. The unit presents in good used condition with typical cosmetic wear consistent with prior service deployment. The chassis and perforated panels show minor surface scuffing; the front-panel POWER GOOD and SERVICE indicator LEDs are present and intact. The label on the underside is fully legible. The rear card-edge backplane connector shows normal contact wear. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This AT&T CS892A Level 6 Power Unit (P/N 76G7691) has been tested at our facility and confirmed to be in working order. The unit presents in good used condition with typical cosmetic wear consistent with prior service deployment. The chassis and perforated panels show minor surface scuffing; the front-panel POWER GOOD and SERVICE indicator LEDs are present and intact. The label on the underside is fully legible. The rear card-edge backplane connector shows normal contact wear. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
AT&T |
Model: |
CS892A |
MPN: |
76G7691 |
SKU: |
19407 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Power unit only; no additional accessories included. |
Form Factor: |
Rack/Chassis Mount |
Series / Level: |
Level 6 |
SER Designation: |
SER 1:4 |
Component Type: |
Custom Rectifier |
AC Input Voltage: |
100-121V AC or 200-240V AC |
AC Input Frequency: |
50-60 Hz |
AC Input Current: |
6.8A–3.7A (100-121V); 3.7A (200-240V) |
DC Output 1: |
+30V — 10.2A (Level 2), 10.4A (Level 3) |
DC Output 2: |
+5.6V — 10.4A (Level 3) |
Cooling: |
Requires fan cooling |
Safety Certifications: |
UL, CSA |
Connector Type: |
High-density card-edge / backplane connector |
Country of Manufacture: |
United States |
Condition Notes: |
This AT&T CS892A Level 6 Power Unit (P/N 76G7691) has been tested at our facility and confirmed to be in working order. The unit presents in good used condition with typical cosmetic wear consistent with prior service deployment. |
