null
ATMI

ATMI 9660-0110 Relay Output Module DIN Rail ROC V2.01 250VAC 30VDC 8A 4-Output

(No reviews yet) Write a Review
SKU:
48254
MPN:
9660-0110
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

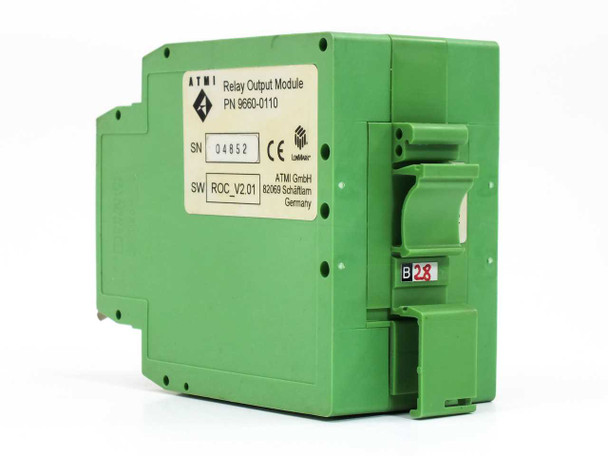

  • ATMI 9660-0110 Relay Output Module – angled left-side view showing green DIN rail housing and label with part number, serial number SN 04852, and SW ROC_V2.01
  • ATMI 9660-0110 Relay Output Module – front panel view showing 4 output indicators (Out 1–4), Status and Service Pin LEDs, and terminal wiring diagram label
  • ATMI 9660-0110 label close-up showing part number PN 9660-0110, serial number SN 04852, firmware SW ROC_V2.01, CE and LonMark certifications, and ATMI GmbH Schäftlarn Germany
  • ATMI 9660-0110 Relay Output Module – front face showing Out 1 through Out 4 LED indicators, Status LED, Service Pin button, and ATMI logo
  • ATMI 9660-0110 – side terminal wiring chart showing ROM output terminal assignments for Power Loss, Power, and Network connections for all 4 relay outputs
$55.00
Was: $100.00
Current Stock: 3

Sold Out

Description

ATMI 9660-0110 Relay Output Module DIN Rail ROC V2.01 250VAC 30VDC 8A 4-Output

Four-channel relay output module for industrial automation and building control systems. Mounts on standard DIN rail and switches AC and DC loads via configurable relay contacts.

Specifications & What's Included

  • Power supply: 12–24 VDC, max. 2 W
  • AC relay rating: 250 VAC, 8 A
  • DC relay rating: 30 VDC, 8 A
  • Four outputs with NO/C/NC contact configuration per channel
  • LonMark / LON network interface
  • Software version ROC V2.01 (compatible with V2.00)
  • CE and LonMark certified
  • Module only; no accessories included

Applications

Used in LonMark-based building automation and HVAC control systems to switch lighting, motor loads, and other AC/DC equipment. The relay outputs integrate with LON networks for centralized facility management. Commonly deployed in commercial and industrial facilities for equipment control and automation.

Condition: Used
This ATMI 9660-0110 Relay Output Module has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use and functional. The green DIN rail housing is intact, the terminal blocks appear clean and undamaged, and the front-panel LED indicators and label are legible and in good shape. Normal light wear consistent with installed service use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ATMI
Model:
9660-0110
MPN:
9660-0110
Type:
Relay Output Module
SKU:
48254
Condition:
Used – Pulled from Working Environment
Seller Notes:
Module only; no additional accessories included.
Country/Region of Manufacture:
Germany
Form Factor:
DIN Rail Mount
Power Requirements:
12–24 VDC, max. 2 W
Relay Rating (AC):
250 VAC, 8 A
Relay Rating (DC):
30 VDC, 8 A
Number of Outputs:
4
Software Version:
ROC V2.01
Compatible Software:
ROC V2.00 / V2.01
Contact Configuration:
NO, C, NC per output
Network Interface:
LonMark / LON
Certifications:
CE, LonMark
Manufacturer:
ATMI GmbH, Schäftlarn, Germany
Compatible With:
LonMark building automation and control systems
Condition Notes:
ATMI 9660-0110 Relay Output Module in good used condition. Pulled from a working environment where it was in use and functional. Housing intact, terminals clean, labels legible. Normal light service wear.
View AllClose

Related Products

Related Products

MST GmbH 9660-0110 Relay Output Module – right-side angle view showing label with type, serial number, SW ROC_V2.00, CE and LonMark certifications MST 9660-0110 Relay Output Module – front and top view showing terminal wiring diagram label, power requirements, relay ratings, and relay output indicators
Add to Cart
Quick view

MST GmbH 9660-0110 4-Output Relay Module DIN-Rail LonMark ROC_V2.00 12-24VDC

MST

$75.00
Was: $150.00
MST GmbH 9660-0110 4-Output Relay Module DIN-Rail LonMark ROC_V2.00 12-24VDCA 4-output relay module designed for building automation and telecom control systems. Converts LonMark network signals to...
48251
SKU:
48251
Availability:
Usually ships within 1-2 business days.
Weight:
0.95 LBS
Brand:
MST GmbH
Model:
9660-0110
MPN:
9660-0110
Type:
4-Output Relay Output Module
SKU:
48251
Software Version:
ROC_V2.00
Number of Relay Outputs:
4
Power Requirements:
12–24 VDC, max. 2 W
Relay Voltage Rating:
250 VAC / 30 VDC
Relay Current Rating:
8 A
Mounting Type:
DIN Rail
Network Protocol:
LonMark / LON
Certifications:
CE, LonMark
Form Factor:
DIN Rail Module
Connector Type:
Screw Terminal
Relay Contact Configuration:
NO / C / NC per output
Country/Region of Manufacture:
Germany
Condition:
Used – Pulled from Working Environment
Seller Notes:
Module only; pulled from a working environment. No additional accessories included.
Condition Notes:
MST GmbH 9660-0110 4-Output Relay Module, used, inspected, in good condition. Pulled from a working environment where it was functional. Light surface marks on label. All terminals and DIN rail clip intact.

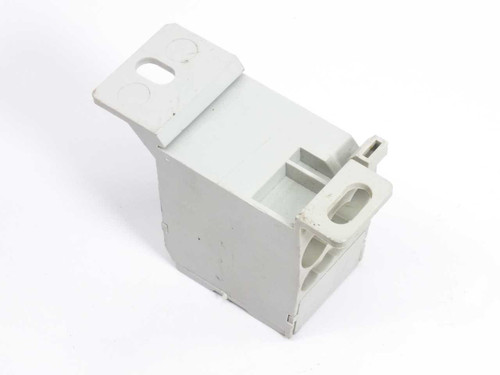

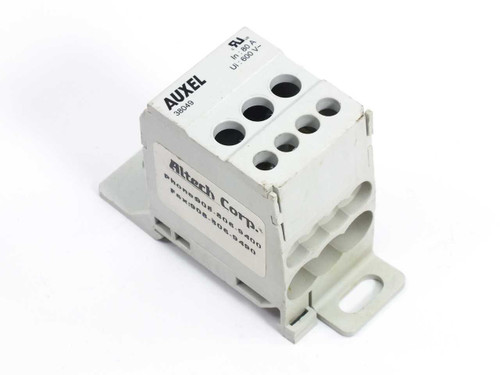

Auxel 38049 power distribution block 600V 80A — front and top view showing 4 output terminals and DIN rail mounting bracket, Altech Corp label visible Auxel 38049 power distribution block — rear and side view showing DIN rail mounting clip and housing detail
