Atlas Copco ZH6-5 901kW Oil-Free Rotary Screw Air Compressor 4160V 164 psig

Atlas Copco ZH6-5 901kW Oil-Free Rotary Screw Air Compressor 4160V 164 psig

The Atlas Copco ZH6-5 is a large-capacity, oil-free rotary screw air compressor rated at 901 kW (1,209 HP) input power, designed for high-demand industrial compressed air applications where oil-free air quality is required. Manufactured in Belgium in the year 2000, this unit operates on 4,160V three-phase power and delivers oil-free compressed air to a maximum working pressure of 164 psig (11.3 bar). It features an Allen-Bradley PanelView 550 operator interface for local control, monitoring, and diagnostics. The unit has accumulated under 16,000 operating hours.

Specifications & What's Included

• Brand: Atlas Copco
• Model: ZH6-5
• Compressor type: Oil-Free Rotary Screw
• Input power: 901 kW / 1,209 HP
• Supply voltage: 4,160V, Three-Phase
• Maximum working pressure: 164 psig / 11.3 bar(e)
• Rotational shaft speed: 3,575 r/min
• Year of manufacture: 2000
• Country of manufacture: Belgium

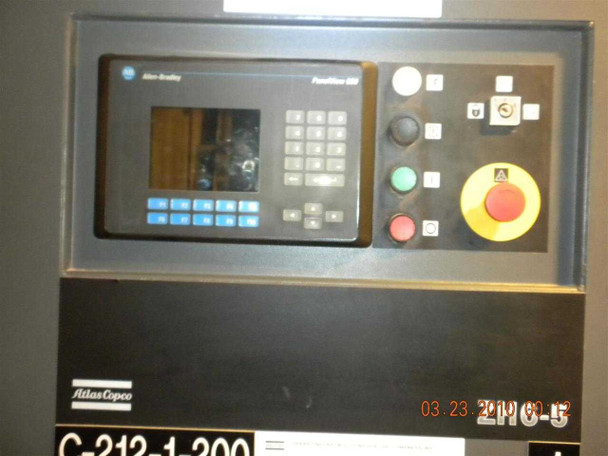

• Control system: Allen-Bradley PanelView 550 operator interface with keypad, indicator lights, and emergency stop
• Operating hours: Under 16,000 hours
• Oil-free air output: Yes — no oil contamination of compressed air stream

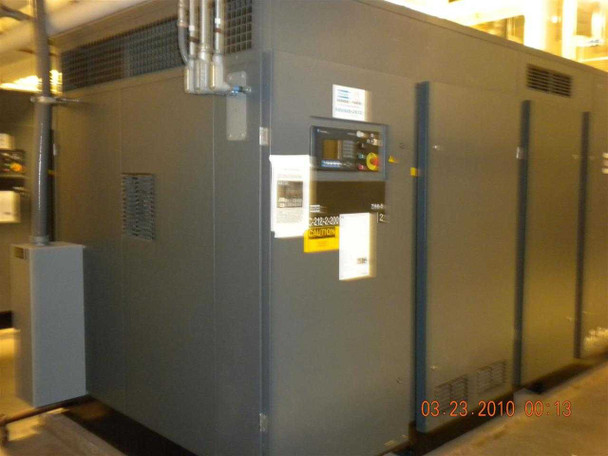

• Installation: Floor/skid-mounted, currently installed in a mechanical room with flanged pipe connections

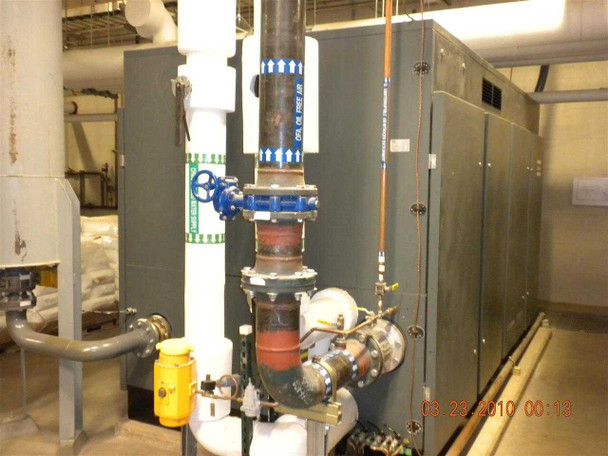

• Visible pipe connections: Large flanged inlet/outlet connections with gate valve and valve assemblies in place

Applications

The Atlas Copco ZH series oil-free rotary screw air compressors are designed for industrial and institutional applications where compressed air must meet strict oil-free purity standards — including pharmaceutical manufacturing, food and beverage processing, semiconductor fabrication, hospitals and medical gas systems, and critical process manufacturing environments where even trace oil contamination is unacceptable. The ZH series uses Atlas Copco's twin-screw element technology with water-cooled or air-cooled configurations and is built for continuous heavy-duty operation in high-capacity plant air systems. A unit of this size — 901 kW / 1,209 HP — is typically central plant equipment in a large hospital, university campus, manufacturing facility, or industrial campus, supplying compressed air to an entire distribution network. The 4,160V supply voltage is standard for large industrial motor loads in North American facilities. This class of compressor is still in active use worldwide in demanding process and institutional environments that require ISO 8573-1 Class 0 oil-free air certification.
