Atlas Copco SF 15 Oil-Free Scroll Air Compressor 15kW 460V 3Ph 55 CFM 116 PSI

Atlas Copco SF 15 Oil-Free Scroll Air Compressor 15kW 460V 3Ph 55 CFM 116 PSI

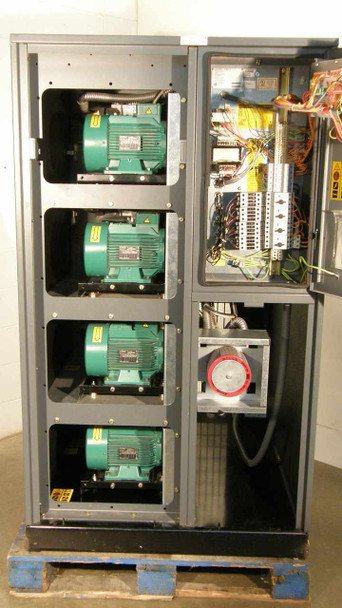

The Atlas Copco SF 15 is a multi-core oil-free scroll air compressor that houses four independent ATSL-165 scroll compressor heads in a single floor-standing cabinet. Each head is driven by its own Leroy Somer LS100L 3.7 kW motor, giving the system a combined output of 15 kW (20 HP). The unit is governed by an Atlas Copco Elektronikon programmable controller, which automatically distributes and equalizes running hours across all four compressor heads to balance wear and extend service life. This unit has been powered up and tested for proper function and is in good working order.

Specifications & What's Included

• Manufacturer: Atlas Copco Airpower n.v., Wilrijk, Belgium
• Model: SF 15 (Oil Free Air)
• Compressor heads: 4 × Atlas Copco ATSL-165 oilfree scroll compressors (Made in Japan)
• Motors: 4 × Leroy Somer LS100L, 3.70 kW (5 HP) each — 15 kW / 20 HP total
• Motor speed: 1745 RPM @ 460V / 60 Hz

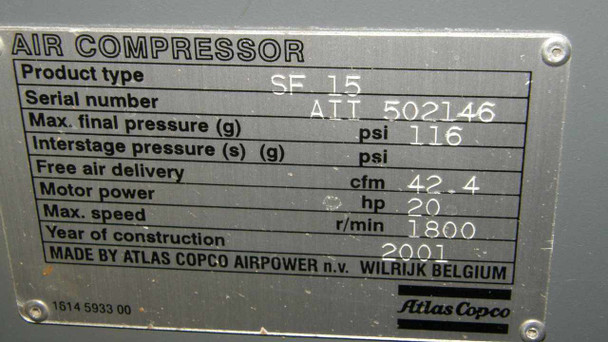

• Free air delivery (nameplate, ISO): 42.4 CFM @ 116 PSI
• Free air delivery (rated): 55 CFM @ 116 PSIG; 48.3 CFM @ 145 PSIG
• Maximum working pressure: 116 PSI (8.0 bar)
• Supply voltage: 460V, 3-Phase, 60 Hz
• Rated current: 4 × 6.7A
• Control voltage: 115V / 24V
• Controller: Atlas Copco Elektronikon (hour-equalization across all four heads)
• Control cubicle: Siemens Brussels, Type 1900-2503-63 00, CSA certified (LR 27768)
• Motor enclosure: IP55, Class F insulation
• Lubrication: Oil-free scroll (no oil contamination of compressed air)
• Year of manufacture: 2001
• Part number: 1614 5933 00
• Internal wiring schematic present (taped inside panel door)
• Unit ships on pallet as shown

Applications

The Atlas Copco SF series scroll compressors are designed for applications where oil contamination of the compressed air stream is not acceptable. Scroll compressors work by using two interleaved spiral-shaped scrolls — one fixed, one orbiting — to progressively compress air without the need for oil lubrication in the compression chamber, producing inherently clean, dry air at the outlet. The SF 15's multi-core architecture (four independent heads sharing a single cabinet and controller) provides built-in redundancy: if one head requires service, the remaining heads continue operating, which is a key advantage over single-head designs in critical production environments. Typical applications include pharmaceutical manufacturing, food and beverage processing, electronics assembly, laboratory air supply, medical and dental facilities, painting and coating lines, and any process where ISO 8573-1 Class 0 oil-free air is required. The Elektronikon controller's hour-equalization feature makes this design well suited for continuous-duty or near-continuous industrial use.
