ATI MACH64 VT PCI Video Card VGA 1023630510 113-36303-107 Graphics 2MB

ATI MACH64 VT PCI Video Card VGA 1023630510 113-36303-107 Graphics 2MB

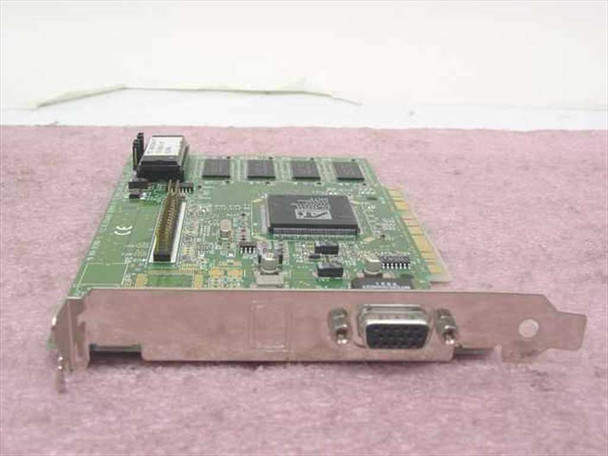

This is an ATI MACH64 VT PCI video card with a single VGA output, built around ATI's MACH64 VT graphics processor. It is a full-length PCI card with on-board DRAM and a standard DB-15 VGA connector on the bracket, designed to provide 2D graphics output in desktop systems equipped with a conventional PCI slot.

Specifications & What's Included

• Manufacturer: ATI Technologies
• GPU / Chipset: ATI MACH64 VT
• Part Number (P/N): 1023630510
• Secondary Part Number: 113-36303-107
• Bus Interface: PCI (full-length card)
• Video Output: 1x VGA (DB-15 analog)
• On-board Memory: 2 MB DRAM (multiple memory ICs visible on PCB)
• Cooling: Passive — no fan or heatsink
• Country of Manufacture: Taiwan
• Card only — no driver discs, software, or accessories included

Applications

The ATI MACH64 VT is a mid-1990s 2D graphics accelerator from ATI Technologies, part of the MACH64 family that was widely used in OEM desktop PCs of the era — particularly in business and workstation machines running Windows 3.1, Windows 95, and early Windows NT. The MACH64 line succeeded ATI's earlier MACH32 chips and was positioned as an affordable, driver-supported 2D accelerator for PCI-based systems. It saw broad deployment in corporate desktop PCs and entry-level workstations throughout the mid-to-late 1990s before the shift toward 3D-focused graphics pipelines. Today these cards are sought after for vintage PC restoration projects, legacy industrial or scientific computers that require a period-correct PCI video card, and retro computing builds targeting the Windows 95/98 era.
