ATI

ATI Mach64 113-32103-103 2MB PCI VGA Video Graphics GPU Card 109-32100-20 1996

(No reviews yet) Write a Review
SKU:
34038
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

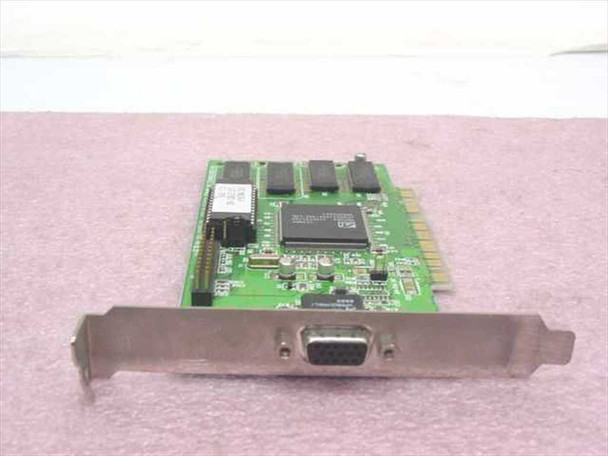

  • ATI Mach64 113-32103-103 2MB PCI video card – front view showing DB15 VGA port, central Mach64 chip, and memory chips on green PCB
  • ATI Mach64 PCI video card – component-side view showing ATI Mach64 chip, CE mark, board revision markings, and PCI edge connector
  • ATI Mach64 PCB edge close-up showing part number PN 109-32100-20, FCC ID, and copyright 1996 marking
  • ATI Mach64 chip sticker close-up reading PCI MACH64, part number 113-32103-102, copyright 1996
  • ATI Mach64 PCI video card – solder side showing barcode label VIDPCI010AAWW, test passed stamp dated 3/30/96, and PCI gold edge connector
$28.00
Was: $35.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

ATI Mach64 113-32103-103 2MB PCI VGA Video Graphics GPU Card 109-32100-20 1996

This is an ATI Mach64 2MB PCI VGA video card, part number 113-32103-103 (assembly) / 109-32100-20 (PCB). Built around ATI's Mach64 graphics processor, this card connects via a standard PCI slot and outputs video through a DB15 VGA port. It carries a 1996 copyright date and was test-passed at the factory on 3/30/96.

Specifications & What's Included

  • GPU / Chipset: ATI Mach64
  • Video Memory: 2MB DRAM
  • Bus Interface: PCI
  • Video Output: DB15 VGA (15-pin analog)
  • Assembly Part Number: 113-32103-103
  • PCB Part Number: 109-32100-20
  • PCB Board Revision (sticker): 113-32103-102
  • Copyright / Manufacturing Date: 1996
  • Form Factor: Full-height PCI card with standard bracket
  • Compatible Operating Systems: DOS, Windows 3.1, Windows 95, Windows 98
  • Card only — no software, drivers, or accessories included

Applications

The ATI Mach64 was ATI's mainstream 2D graphics accelerator of the mid-1990s, widely used in desktop PCs running DOS, Windows 3.1, and Windows 95. It succeeded the earlier Mach32 and brought hardware acceleration for GUI rendering, accelerated BitBLT operations, and improved 2D performance over unaccelerated VGA. The Mach64 family powered a large share of OEM PCs from major manufacturers of the era, as well as aftermarket cards like this one. Today these cards are sought by retrocomputing enthusiasts building or restoring period-correct mid-1990s PCI-bus systems, where the Mach64 offers broad driver support across DOS and early Windows platforms. The card fits any standard PCI slot and is straightforward to install in a vintage PC.

Condition: Used
This ATI Mach64 113-32103-103 2MB PCI VGA video card has been tested and is in good working condition. The card is clean overall with minor handling wear consistent with its age. The PCB, components, and VGA connector all appear intact with no visible damage. Please review the photos and contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ATI
Model:
Mach64
MPN:
113-32103-103
Secondary Model:
109-32100-20
Type:
PCI VGA Video Card
GPU / Chipset:
ATI Mach64
Video Memory:
2MB
Memory Type:
DRAM
Interface:
PCI
Output Connector:
DB15 VGA (15-pin)
Max Resolution:
1024x768
Form Factor:
PCI Card, Full Height Bracket
Compatible OS:
DOS, Windows 3.1, Windows 95, Windows 98
Year / Era:
1996
Board Revision:
113-32103-102 (PCB sticker)
Assembly Part Number:
113-32103-103
Country/Region of Manufacture:
Canada
SKU:
34038
Condition Notes:
This ATI Mach64 113-32103-103 2MB PCI VGA video card has been tested and is in good working condition. Minor handling wear consistent with age. PCB and VGA connector are intact with no visible damage.
