ATI TV Wonder Pro 109-95200-01 PCI TV Tuner Video Capture Card F-connector

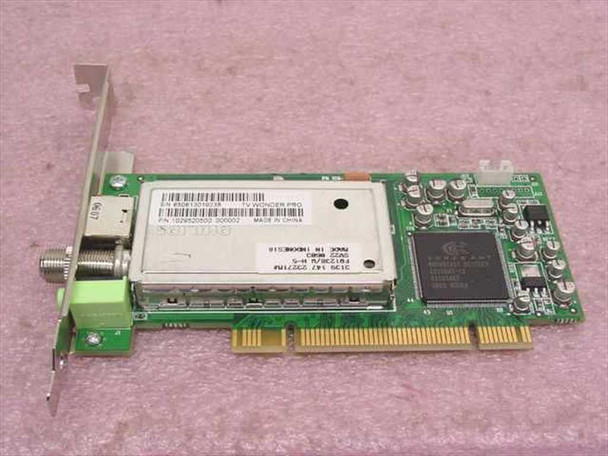

The ATI TV Wonder Pro is a PCI bus TV tuner and analog video capture card that lets a desktop PC receive over-the-air and cable TV signals and capture analog video from external sources. It accepts a coaxial RF feed directly for live TV viewing and recording, and also accepts composite and S-Video input for capturing video from VCRs, camcorders, and other analog sources. The card installs in a standard full-height PCI slot and was supported under Windows 98/ME/2000/XP with ATI's Multimedia Center software.
Specifications & What's Included
- Manufacturer Part Number: 109-95200-01
- Interface: PCI (32-bit, full height)
- Tuner: Integrated analog TV tuner module (RF/coax input)
- Video Inputs: F-connector (coax/RF), S-Video (Mini-DIN 4-pin), Composite (via adapter)
- Audio Input: 3.5mm stereo audio jack on bracket

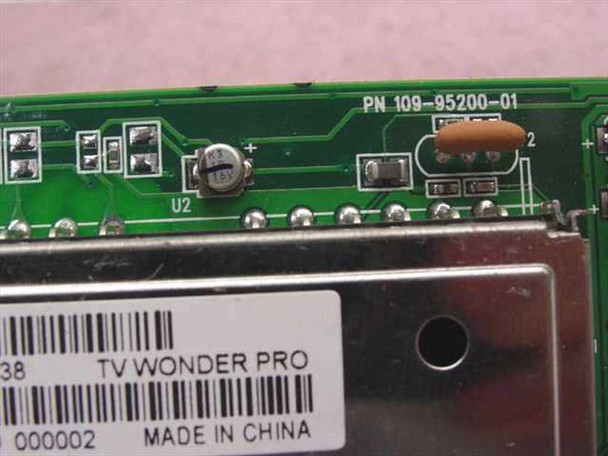

- Main Chipset: Conexant (visible on PCB in photos)
- Country of Manufacture: China (label on PCB)
- Form Factor: Full-height PCI card
- Included: Card only — no software CD, cables, or documentation included
Applications
The ATI TV Wonder Pro was part of ATI Technologies' multimedia card lineup from the early-to-mid 2000s, aimed at home theater PC (HTPC) builds and desktop PCs used for TV viewing and personal video recording (PVR). It was commonly used alongside ATI Radeon graphics cards to build an all-ATI multimedia system. The card connects to a standard cable TV or antenna feed via the F-connector, making it straightforward to set up for analog cable TV reception. The S-Video and composite inputs allow it to digitize video from VCRs, camcorders, and legacy game consoles — a common use case for home video archiving during the analog-to-digital transition era. Today these cards are used by enthusiasts maintaining legacy Windows XP HTPC systems and by hobbyists digitizing analog tape collections.
This ATI TV Wonder Pro (109-95200-01) PCI TV tuner and video capture card has been tested and is in good working condition. The card is clean with no visible damage to the PCB, and the bracket and connectors are intact. Normal light wear consistent with prior use. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
ATI |
Model: |
TV Wonder Pro |
MPN: |
109-95200-01 |
Type: |
PCI TV Tuner & Video Capture Card |
SKU: |
29911 |
Interface: |
PCI |
Form Factor: |
PCI Card (Full Height) |
Video Input: |
F-Connector (RF/Coax), S-Video, Composite |
Connector Types: |
F-Connector (coax), S-Video (Mini-DIN 4), 3.5mm audio |
Tuner Type: |
Analog TV Tuner |
Capture Type: |
Analog Video Capture |
Country/Region of Manufacture: |
China |
Compatible With: |
Windows XP/2000 PCs with available PCI slot |
Seller Notes: |
Card only; no software CD or cables included. |
Condition Notes: |
This ATI TV Wonder Pro 109-95200-01 PCI TV tuner/capture card has been tested and is in good working condition. Card is clean with intact connectors and no visible damage. Normal light wear. |
