Description
ATI TV Wonder Pro 1029520102 PCI TV Tuner Video Capture Card Philips FI1236
The ATI TV Wonder Pro is a PCI expansion card that adds analog TV reception and composite/S-Video capture capability to a desktop PC. It accepts a standard coaxial RF antenna or cable TV signal and decodes it for on-screen viewing and recording, while also capturing analog video from external sources through its breakout cable dongle.
Specifications & What's Included
- Brand: ATI
- Model: TV Wonder Pro
- Part Number: 1029520102
- Interface: PCI (standard half-height bracket)
- Tuner Module: Philips FI1236/M H-3 (NTSC analog tuner, made in Indonesia)
- Decoder Chip: Conexant Broadcast Decoder (large QFP, visible on PCB)
- TV Standard: NTSC (North American analog broadcast)
- Bracket Connectors: F-connector (RF/coaxial cable input), S-Video output/input, RCA composite (via dongle)
- Breakout Cable Dongle: S-Video port + 3× RCA composite connectors (audio L/R + video)
- Country of Manufacture: China (per label)
- Includes: Breakout cable dongle, driver and software CD
Applications
The ATI TV Wonder Pro was designed for desktop PCs running Windows (98SE/ME/2000/XP era) with an available PCI slot, allowing users to watch, pause, or record analog cable or over-the-air broadcast television directly on their computer. It also functions as a composite and S-Video capture card, making it useful for capturing footage from VCRs, camcorders, and other analog video sources. Released in the early 2000s, the TV Wonder Pro was part of ATI's multimedia card lineup aimed at home users who wanted to combine television viewing with PC use. Today it remains a practical option for legacy Windows builds, retro PC setups, and anyone needing a straightforward NTSC analog TV tuner or composite capture card on a PCI platform.

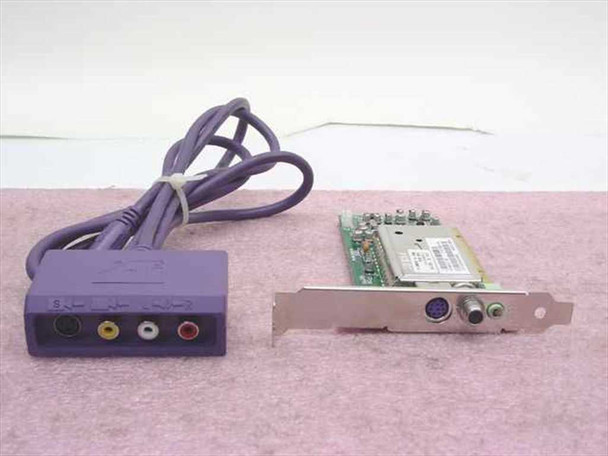

This ATI TV Wonder Pro PCI TV Tuner and Video Capture Card (P/N 1029520102) has been tested and is in good working condition. The card includes the original breakout cable dongle (S-Video and three RCA connectors) and the driver and software CD. The card and dongle show normal cosmetic wear consistent with prior use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ATI |
Model: |
TV Wonder Pro |
MPN: |
1029520102 |
Type: |
PCI TV Tuner / Video Capture Card |
SKU: |
31461 |
Interface: |
PCI |
Tuner Chipset: |
Philips FI1236/M H-3 |
Decoder Chipset: |
Conexant Broadcast Decoder |
TV Standard: |
NTSC |
Connector Types: |
F-connector (RF/coaxial), S-Video, RCA composite (via dongle) |
Form Factor: |
Half-Height PCI Card |
Country/Region of Manufacture: |
China |
Compatible With: |
Windows PC with PCI slot |
Includes: |
Breakout cable dongle (S-Video + 3x RCA), driver and software CD |
Seller Notes: |
Includes breakout cable dongle, driver and software CD |
Condition Notes: |
This ATI TV Wonder Pro PCI TV Tuner/Video Capture Card (P/N 1029520102) has been tested and is in good working condition. Includes breakout cable dongle and driver/software CD. Normal cosmetic wear. Please contact us with any questions. |
