ASUS TUSL2-C Motherboard Socket 370 Intel 815EP Chipset PIII Celeron SDRAM ATX

ASUS TUSL2-C Motherboard Socket 370 Intel 815EP Chipset PIII Celeron SDRAM ATX

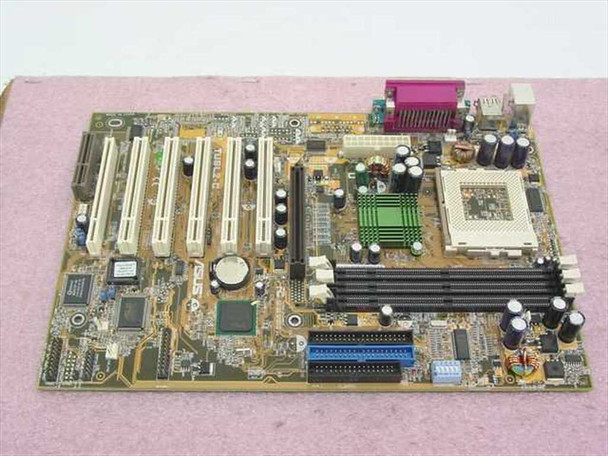

The ASUS TUSL2-C is an ATX desktop motherboard built around the Intel 815EP chipset and Socket 370 (PGA370) interface, designed to support Intel Pentium III, Pentium III-S, and Celeron processors. It runs a 133 MHz front side bus and supports processors up to 1.2 GHz, making it one of the more capable boards from the peak of the Socket 370 platform.

Specifications & What's Included

• Manufacturer: ASUS
• Model: TUSL2-C
• Form Factor: ATX
• CPU Socket: Socket 370 (PGA370)
• Chipset: Intel 815EP
• Compatible Processors: Intel Pentium III, Pentium III-S, Celeron
• Maximum Processor Speed: 1.2 GHz
• Front Side Bus: 133 MHz
• Memory Type: SDRAM, non-ECC, 133 MHz
• Memory Form Factor: 168-pin DIMM
• Maximum Memory: 512 MB
• Expansion Slots: AGP (1x), PCI (5x, visible in photos)
• I/O: PS/2 keyboard and mouse ports, serial ports, parallel port (visible on rear I/O panel)
• Board only — no CPU, RAM, or accessories included

Applications

The Socket 370 platform was Intel's primary desktop and workstation interface from the late 1990s through the early 2000s, succeeding Slot 1 and supporting the Coppermine and Tualatin generations of Pentium III and Celeron processors. The Intel 815EP chipset integrated graphics support (though this board targets discrete AGP graphics) and provided a clean, stable platform for office workstations and light servers of the era. Today, the TUSL2-C is sought after by vintage PC enthusiasts, retro computing hobbyists, and industrial/embedded users who maintain legacy equipment that requires a reliable Socket 370 board with 133 MHz FSB capability. Its support for the Tualatin-core Pentium III-S makes it particularly desirable among collectors, as Tualatin support required specific board revisions and was not universal across Socket 370 boards.
