ASUS S370 REV 1.01 Slot 1 to Socket 370 CPU Converter Adapter Card

ASUS S370 REV 1.01 Slot 1 to Socket 370 CPU Converter Adapter Card

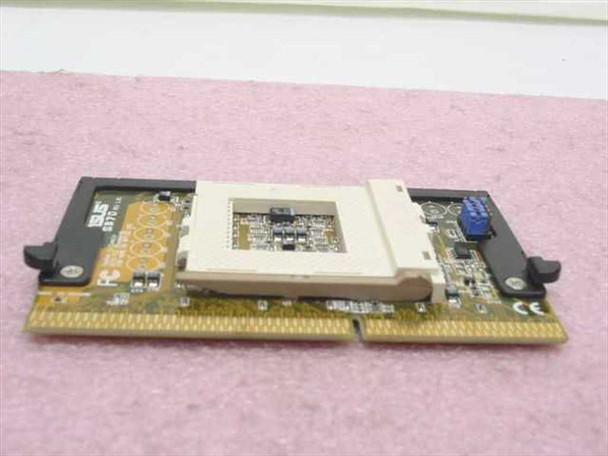

The ASUS S370 is a CPU converter card that allows a Socket 370 processor — such as an Intel Celeron (PPGA) or Pentium III (FC-PGA) — to be installed in a Slot 1 (SC242) motherboard. It bridges the physical and electrical gap between the two interfaces, letting users upgrade or repurpose Slot 1 boards with the more widely available Socket 370 CPUs. Revision 1.01 is visible on the PCB silkscreen.

Specifications & What's Included

• Model: ASUS S370
• Hardware Revision: REV 1.01
• Host Interface: Slot 1 (SC242) edge connector
• CPU Socket: Socket 370 (PPGA / FC-PGA), ZIF socket mounted on card
• Compatible CPUs: Intel Celeron PPGA, Intel Pentium III FC-PGA
• Compatible Motherboards: Slot 1 boards with Intel 440LX, 440BX, 440ZX, 440EX chipsets
• Onboard components: voltage regulation circuitry, passive components visible on PCB
• Black plastic Slot 1 card guide/retention bracket attached
• FCC compliance marking printed on PCB
• Card only — no CPU included

Applications

The ASUS S370 was designed in the late 1990s during the transition from Intel's proprietary Slot 1 cartridge format to the smaller, lower-cost Socket 370 form factor. Slot 1 was introduced with the Pentium II in 1997 and used a large Single Edge Contact Cartridge (SECC); Socket 370 arrived shortly after for the Celeron line and later the Pentium III, offering a more traditional socketed design. Converter cards like the S370 were popular among builders and upgraders who wanted to run a Socket 370 Celeron or Pentium III in an existing Slot 1 board without replacing the motherboard. They are still sought after today by vintage PC enthusiasts, system restorers, and collectors working with late-1990s Intel platforms based on the 440BX or 440LX chipsets.
