Description

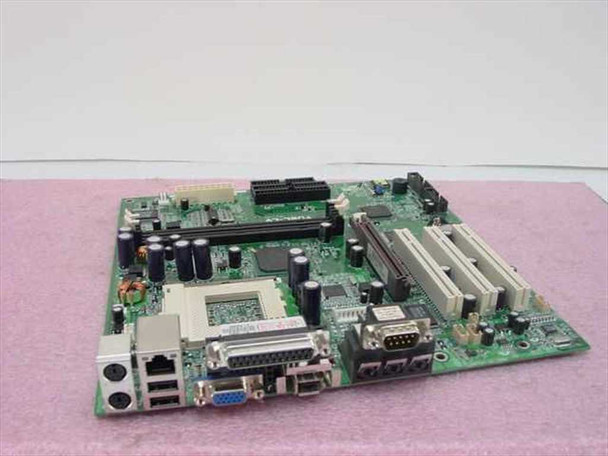

ASUS TUSL-LV Socket 370 Intel 815E Micro ATX Motherboard Sony VAIO PCV-RX270DS
The ASUS TUSL-LV is a Micro ATX motherboard built around the Intel 815E chipset with a Socket 370 CPU socket, designed for Intel Pentium III and Celeron processors. This board was factory-installed in the Sony VAIO PCV-RX270DS desktop PC and carries revision REV 1.01. It features integrated video via the Intel 815E graphics core, onboard LAN, and a full complement of legacy I/O ports on the rear panel.
Specifications & What's Included
- Manufacturer: ASUS
- Model: TUSL-LV, Revision REV 1.01
- Form Factor: Micro ATX
- CPU Socket: Socket 370 (Intel Pentium III / Celeron)
- Chipset: Intel 815E
- Memory Slots: 2x DIMM (SDRAM)
- Expansion Slots: 3x PCI
- Integrated Graphics: Intel 815E integrated video (VGA output)
- Integrated LAN: Yes – RJ-45 port
- Rear I/O: PS/2 keyboard and mouse, 2x USB, DB-25 parallel port, DB-9 serial port, VGA, RJ-45
- Storage Connectors: Primary and secondary IDE connectors (visible on board)
- Power: ATX power connector
- Compatible System: Sony VAIO PCV-RX270DS
- Board only — no CPU, RAM, or accessories included
Applications
The ASUS TUSL-LV is a Socket 370 board from the early-2000s era of Intel's Coppermine and Tualatin Pentium III and Celeron platform. The Intel 815E chipset was one of Intel's mainstream chipsets of that period, integrating a graphics core and memory controller that made it well-suited for compact consumer desktop systems like the Sony VAIO PCV series. Today these boards are sought primarily for direct replacement in Sony VAIO PCV-RX270DS systems and compatible VAIO desktops, as well as by collectors and hobbyists maintaining legacy Socket 370 machines. The integrated 815E video, onboard LAN, and rich rear-panel I/O made this board a self-contained solution for the all-in-one VAIO desktop platform of that generation.
This ASUS TUSL-LV Socket 370 Micro ATX motherboard has been tested at our facility and is in good working condition. It was pulled from a Sony VAIO PCV-RX270DS desktop system. The board shows normal cosmetic wear consistent with used equipment — please review all photos for details. No CPU or RAM is included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ASUS |
Model: |
TUSL-LV |
MPN: |
TUSL-LV |
Secondary Model: |
PCV-RX270DS |
SKU: |
24477 |
Type: |
Motherboard |
Hardware Revision: |
REV 1.01 |
Socket Type: |
Socket 370 |
Chipset: |
Intel 815E |
Form Factor: |
Micro ATX |
Memory Type: |
SDRAM (DIMM) |
Memory Slots: |
2 |
Expansion Slots: |
3x PCI |
Compatible With: |
Sony VAIO PCV-RX270DS |
Integrated Graphics: |
Yes – Intel 815E integrated video |
Integrated LAN: |
Yes – RJ-45 |
I/O Ports: |
PS/2, 2x USB, DB-25 Parallel, DB-9 Serial, VGA, RJ-45 |
Processor Compatibility: |
Intel Pentium III / Celeron (Socket 370) |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Pulled from Sony VAIO PCV-RX270DS; board only, no CPU or RAM included |
Condition Notes: |
ASUS TUSL-LV Socket 370 motherboard tested at our facility and in good working condition. Pulled from a Sony VAIO PCV-RX270DS. Normal cosmetic wear. No CPU or RAM included. |
