Astec

Astec VL203-3525 200W ATX Power Supply 644083-002 100-240V Desktop PC PSU

(No reviews yet) Write a Review
SKU:
20764
MPN:
VL203-3525
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

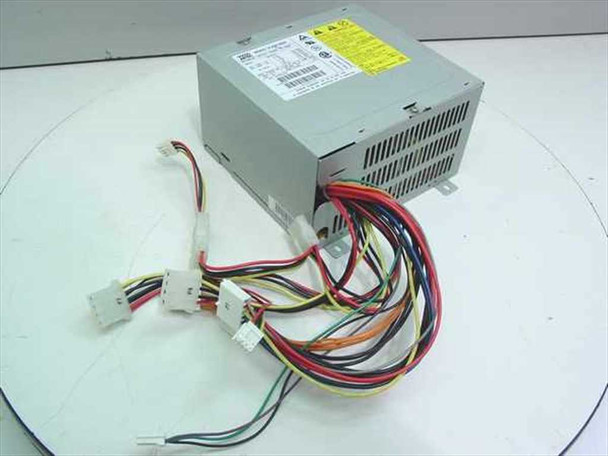

  • Astec VL203-3525 200W ATX power supply front-left view showing output cable harnesses with Molex and power connectors
  • Astec VL203-3525 rating plate label showing model number, P/N 644083-002, input voltage, and output rail specifications

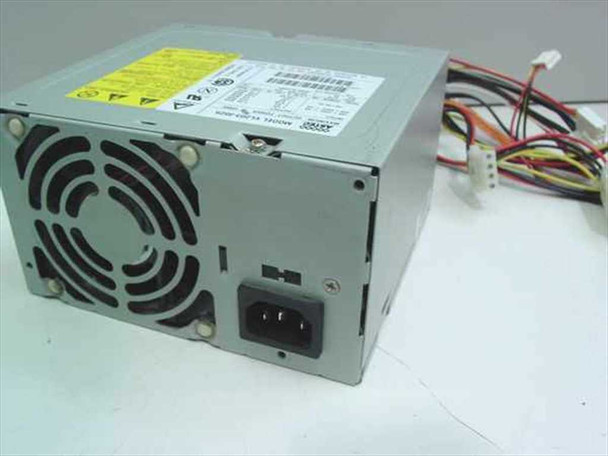

  • Astec VL203-3525 200W ATX power supply rear view showing IEC C14 AC inlet and 80mm cooling fan exhaust
$40.00
Was: $80.00
Current Stock: 1

Sold Out

Description

Astec VL203-3525 200W ATX Power Supply 644083-002 100-240V Desktop PC PSU

200W ATX form factor power supply for desktop computers. Dual-voltage input supports 100-120V and 200-240V AC operation at 50/60 Hz. Delivers regulated power across five output rails via multiple harnesses.

Specifications & What's Included

  • Model: VL203-3525 | MPN: 644083-002
  • Output Power: 200W maximum
  • Rails: +12V (8A), +5V (22A), +3.3V (14A), -12V (0.8A), -5V (0.3A), +5V standby (0.1A)
  • Cooling: Single 80mm internal fan
  • Connector: IEC C14 inlet (standard 3-pin)
  • Includes: Multiple output harnesses; unit only

Applications

ATX power supplies of this type were widely used in desktop computers and server systems from the late 1990s through early 2000s. The VL203 series commonly powered entry-level and mid-range PC builds. This unit suits legacy system repair, restoration projects, or systems requiring compact 200W ATX supplies.

Condition: Used
This Astec VL203-3525 200W ATX desktop power supply has been inspected and appears to be in good used condition. The unit is intact with no visible physical damage, and the output harnesses are present. The housing shows minor surface scuffing consistent with normal prior use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Astec
Model:
VL203-3525
MPN:
644083-002
Type:
ATX Power Supply
SKU:
20764
Maximum Output Power:
200W
Form Factor:
ATX
Input Voltage:
100-120V / 200-240V AC
Input Current:
100-120V: 4A max; 200-240V: 2A max
Input Frequency:
50/60 Hz
Output +12V:
8A max
Output +5V:
22A max
Output +3.3V:
14A max
Output -12V:
0.8A max
Output -5V:
0.3A max
Output +5V SB:
0.1A max
Modular:
No
Cooling:
Single 80mm internal fan
AC Inlet:
IEC C14 (standard 3-pin PC inlet)
Country/Region of Manufacture:
China
Condition:
Used – Inspected
Seller Notes:
Unit only; no accessories. Multiple output harnesses included.
Condition Notes:
Astec VL203-3525 200W ATX power supply in good used condition. Inspected; housing shows minor scuffing consistent with normal use. Output harnesses present. No accessories included.
