Description
Astec AA13010 DEC H 7260 30-23616-01 Power Supply 460W 120V 5V 36A 12V 7A
The Astec AA13010 is a proprietary chassis-mount power supply manufactured for Digital Equipment Corporation (DEC). Rated at 460W maximum output with forced-air cooling, it supplies 5V and 12V DC to DEC computer systems through a set of card-edge bus connectors and multi-pin output headers. This unit is being sold as-is for parts or repair and has not been tested.
Specifications & What's Included
- Model: Astec AA13010
- OEM: Digital Equipment Corp. (DEC) Part No. H 7260 / 30-23616-01 Rev A 1
- Input Voltage: 120V AC or 240V AC, 50/60 Hz
- Input Current: 8.8A @ 120V; 4.4A @ 240V
- Input Power (max): 690W
- Max Output Power: 460W (with forced air cooling)
- Output – 5V DC: 36A
- Output – 12V DC: 7A
- Auxiliary – CC FAN+: 1.0A
- Auxiliary – MS FAN+: 500mA
- Output connectors: J8/J9 card-edge bus outputs; J10 fan/OTS connector; J7 MS fan/OTS connector

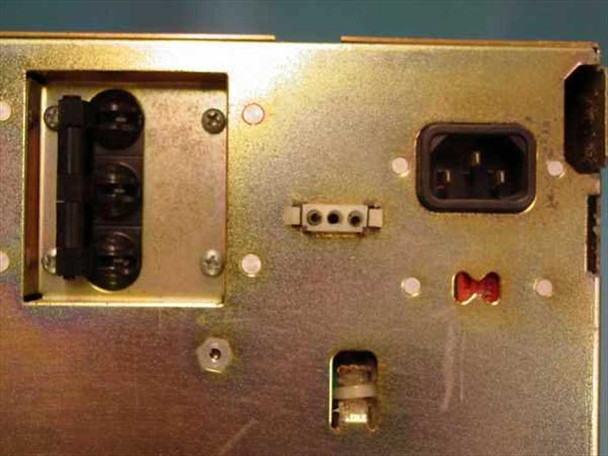

- AC inlet: IEC C14
- Voltage selector: 3-pin header on rear panel

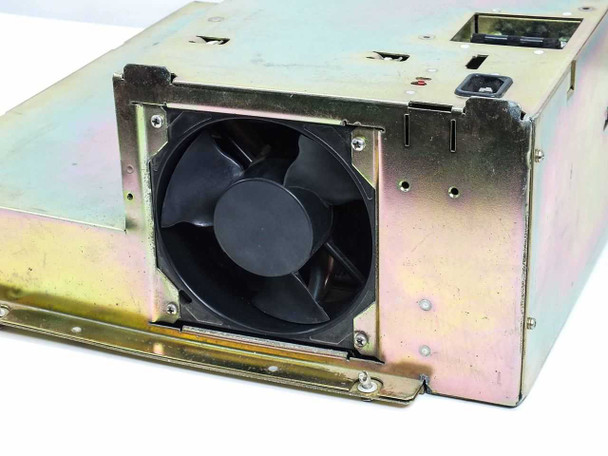

- Cooling: Internal forced-air fan (large axial fan, side-mounted)
- Chassis: Zinc-plated steel, stepped two-tier form factor
- Country of Manufacture: Hong Kong

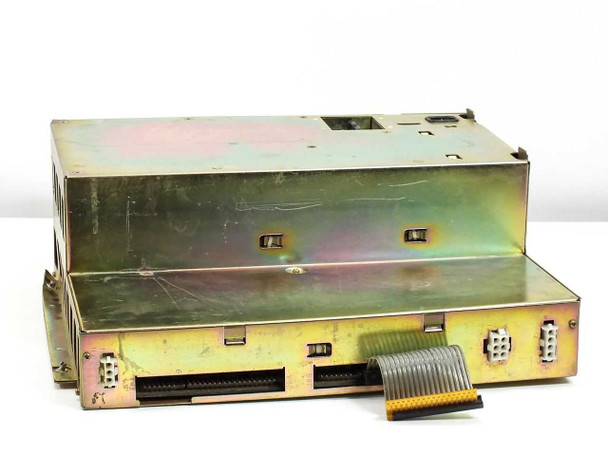

- Included: Ribbon cable with orange/yellow IDC connector
Applications
Astec was a major OEM power supply manufacturer supplying components to DEC (Digital Equipment Corporation) for their VAX, PDP, and DECstation/DECsystem product lines from the 1970s through the 1990s. DEC systems used proprietary form-factor power supplies like this AA13010 — with card-edge and multi-pin bus outputs rather than the ATX cabling used in standard PCs — to distribute power to backplane-connected cards and peripheral subsystems. This unit is well-suited as a replacement or spare part for anyone maintaining or restoring legacy DEC computer hardware. It may also be useful as a donor unit for 5V and 12V power components. DEC's computing legacy covers some of the most significant minicomputer platforms in history, and working parts for these systems are increasingly scarce.
This Astec AA13010 power supply for Digital Equipment Corporation (DEC) systems is being sold AS-IS for parts or repair. It has not been tested and is not guaranteed functional. The zinc-plated steel chassis shows surface scuffs, scratches, and areas of green corrosion, particularly on the side panel near the cooling fan. A ribbon cable with an orange IDC connector is included. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Astec |
Model: |
AA13010 |
MPN: |
AA13010 |
Secondary Model: |
H 7260 |
OEM Part Number: |
30-23616-01 Rev A 1 |
Type: |
Proprietary Chassis Power Supply |
SKU: |
9643 |
Compatible With: |
Digital Equipment Corporation (DEC) systems |
Input Voltage: |
120V AC / 240V AC, 50/60 Hz |
Input Current: |
8.8A @ 120V; 4.4A @ 240V |
Input Power (Max): |
690W |
Output Power (Max): |
460W (with forced air cooling) |
Output Voltage 1: |
5V DC |
Output Current 1: |
36A |
Output Voltage 2: |
12V DC |
Output Current 2: |
7A |
Fan Output: |
CC FAN+: 1.0A; MS FAN+: 500mA |
Output Connectors: |
J7, J8, J9, J10 bus connectors; card-edge |
AC Inlet: |
IEC C14 |
Cooling: |
Forced air (internal fan) |
Country/Region of Manufacture: |
Hong Kong |
Seller Notes: |
Sold as-is for parts or repair. Includes ribbon cable with IDC connector. |
Condition Notes: |
This Astec AA13010 DEC power supply is sold AS-IS for parts or repair. Not tested, not guaranteed functional. Chassis shows scuffs, scratches, and corrosion. Ribbon cable with IDC connector included. Contact us with questions. |
