Astec ATX145-3485 145W 20-Pin ATX Desktop Computer Power Supply 100-240V

(No reviews yet) Write a Review
SKU:
15159
MPN:
ATX145-3485
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • Astec ATX145-3485 145W ATX power supply – front-left three-quarter view showing housing, fan, and full connector harness
  • Astec ATX145-3485 145W ATX power supply – rear view showing AC inlet, ventilation slots, and cable harness
  • Astec ATX145-3485 label showing model number, input/output voltage specs, date code 9621, Rev 00, and POW145004AAWW secondary model
  • Astec ATX145-3485 power supply – close-up of 20-pin ATX main connector and peripheral Molex and Berg connectors
$50.00
Was: $100.00
Current Stock: 1

Sold Out

Description

Astec ATX145-3485 145W 20-Pin ATX Desktop Computer Power Supply 100-240V

A 145W ATX form factor power supply for desktop computers. Supports dual input voltage (100-120V or 200-240V) with 20-pin ATX connector and peripheral connectors.

Specifications & What's Included

  • Model: ATX145-3485 (Secondary: POW145004AAWW)
  • Power Rating: 145W (146W max continuous)
  • Input: 100-120V 3.0A / 200-240V 1.5A, 50/60Hz
  • Output Voltages: +12V (4.2A), +5V (18.0A), -5V (0.5A), -12V (0.5A), +5VSB (0.2A)
  • Connectors: 20-pin ATX main, Molex, and Berg peripheral connectors
  • Certifications: UL, CSA Level 3, VDE
  • Full harness included with all connectors

Applications

This ATX power supply was commonly used in older desktop computers from the 1990s and early 2000s. The 145W output and 20-pin connector configuration is compatible with early Pentium-era systems and compatible motherboards from that period. These supplies typically powered basic office workstations and entry-level consumer systems.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Astec ATX145-3485 145W 20-Pin ATX Desktop Computer Power Supply has been inspected and is in good used condition. The chassis shows typical light wear consistent with prior use, and the unit is cosmetically clean overall. The full connector harness — including the 20-pin ATX main connector and peripheral Molex and Berg connectors — is present and intact with no visible damage to the wiring or pins. The rear AC inlet and fan grill are intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Astec
Model:
ATX145-3485
MPN:
ATX145-3485
Secondary Model:
POW145004AAWW
SKU:
15159
Condition:
Used – Inspected
Form Factor:
ATX Desktop
Power Rating:
145W (146W Max Continuous Output)
Power Requirements:
100-120V 3.0A / 200-240V 1.5A, 50/60Hz
Output Voltage:
+12V, +5V, -5V, -12V, +5VSB
Output Current +12V:
4.2A
Output Current +5V:
18.0A
Output Current -5V:
0.5A
Output Current -12V:
0.5A
Output Current +5VSB:
0.2A
Connector Type:
20-Pin ATX Main + Molex / Berg peripheral
Revision:
Rev 00
Date Code:
9621
A/C Code:
1412
Certifications:
UL, CSA Level 3, VDE, N
Country of Manufacture:
China
Seller Notes:
Includes full harness with 20-pin ATX, Molex, and Berg connectors.
Condition Notes:
This Astec ATX145-3485 145W 20-Pin ATX power supply has been inspected and is in good used condition. Full connector harness intact. Please contact us with any questions.
View AllClose

Related Products

Related Products

Power Tronic PK-6145DT3 145W ATX switching power supply — three-quarter front view showing fan and output harness with Molex and floppy connectors Power Tronic PK-6145DT3 145W ATX power supply — side and rear view showing AC inlet, fan grille, and output cable harness
Add to Cart
Quick view

Power Tronic PK-6145DT3 145W ATX Switching Power Supply 20-Pin Desktop PC

Power Tronic

$40.00
Was: $125.00
Power Tronic PK-6145DT3 145W ATX Switching Power Supply 20-Pin Desktop PC This is a used ATX switching power supply rated for 145W maximum output. The unit supplies regulated DC power to desktop PC...
19235
SKU:
19235
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
Power Tronic
Model:
PK-6145DT3
MPN:
PK-6145DT3
SKU:
19235
Condition:
Used – Inspected and Tested
Seller Notes:
Unit only — no additional accessories included.
Form Factor:
ATX Desktop
Power Output:
145W Max
Connector Type:
20-Pin ATX Main, 4-Pin Molex, Floppy
AC Input Voltage:
100V / 120V / 200V / 240V (selectable)
AC Input Current:
4.2A / 2.3A
Frequency:
47-63 Hz
DC Output +3.3V:
Min 0.3A / Max 6A (100W Max combined)
DC Output +5V:
Min 1.5A / Max 18A
DC Output +12V:
Min 0.2A / Max 4A
DC Output -5V:
Min 0A / Max 0.3A
DC Output -12V:
Min 0A / Max 0.3A
DC Output +5VSB:
Min 0A / Max 0.2A
Cooling:
Single 80mm case fan
Compatible With:
ATX desktop computers, 20-pin motherboards
Country of Manufacture:
Taiwan
Manufacturer:
Powertech Electronic Co., Ltd.
Condition Notes:
This Power Tronic PK-6145DT3 145W ATX power supply has been tested and is in working order. Good used condition with normal cosmetic wear. All output leads present. Please view photos and contact us with questions.

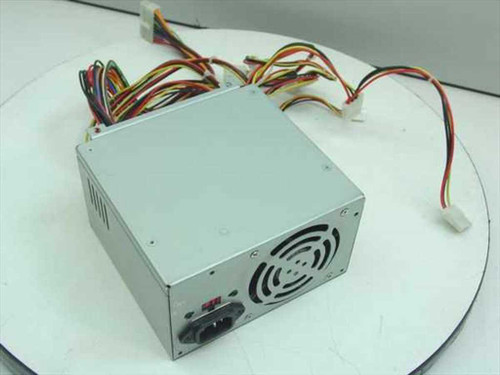

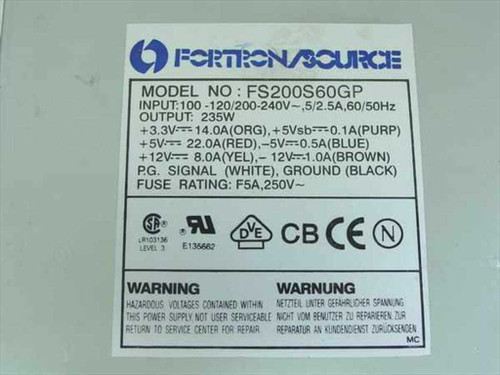

Fortron Source FS200S60GP 235W ATX power supply – three-quarter front view showing fan, power switch, and cable harness Fortron Source FS200S60GP specification label showing 235W output, 100-240V input, and rail current ratings
