AST Research 202380 386 SX CPU RAM Processor Board ISA 1990 Vintage PC Card

(No reviews yet) Write a Review
SKU:
12842
MPN:
202380
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

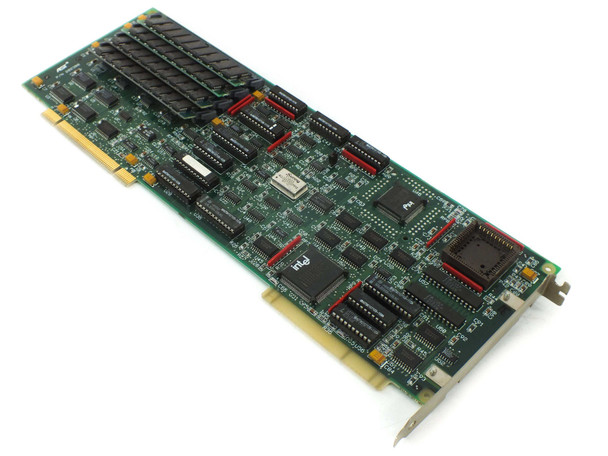

  • AST Research 202380 386 SX CPU RAM ISA processor board – angled top-side view showing full card with SIMM sockets and Intel chips
  • AST Research 202380 386 SX CPU board – top-side flat view showing populated SIMM banks, Intel processor ICs, and ISA edge connector
  • AST Research 202380 386 SX board – solder-side (bottom) view showing trace layout, ISA edge connector fingers, and bracket
  • AST Research 202380 board – close-up of SIMM memory bank area and AST P/N 202380 label on lower left corner of PCB
  • AST Research 202380 board – close-up of Intel 386 SX processor chip and Surrey oscillator with additional logic ICs
  • AST Research 202380-300 Rev A board – PCB solder-side corner showing '202380-300 A' part number and 'Copyright AST Research 1990' marking
$50.00
Was: $80.00
Current Stock: 9

Sold Out

Description

AST Research 202380 386 SX CPU RAM Processor Board ISA 1990 Vintage PC Card

ISA expansion board featuring an Intel 386 SX processor and on-board RAM SIMMs. Designed to upgrade or add processing capability to compatible PC/XT/AT systems from the late 1980s and early 1990s.

Specifications & What's Included

  • Brand: AST Research
  • Model: 202380 (MPN 202380-300)
  • Processor: Intel 386 SX
  • Bus Interface: ISA (full-length expansion card)
  • On-board RAM: SIMMs populated as shown
  • Revision: Rev A
  • Manufactured: United States, 1990

Applications

This processor board was used in ISA-bus compatible systems to add or replace CPU functionality. The 386 SX operated at lower clock speeds than its 386 DX counterpart, making it common in cost-conscious business and home computer upgrades. Compatible with PC/XT/AT systems using ISA slots. Historically found in 8086/286-based machines being upgraded to 386-class processing.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
AST Research 202380 386 SX CPU and RAM Processor Board in used condition. This vintage ISA processor board from circa 1990 is physically complete with SIMM memory modules populated and all major components intact. The PCB exhibits typical cosmetic wear consistent with age and storage, with no visible physical damage, cracked traces, or missing components. The ISA edge connector fingers are intact, and part markings including the 202380-300 Rev A designation and 1990 AST Research copyright are clearly legible on the solder side. A solid addition to any vintage computer collection or repair project.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
AST Research
Model:
202380
MPN:
202380-300
Type:
386 SX CPU & RAM Processor Expansion Board
SKU:
12842
Condition:
As-Is / For Parts or Not Working
Processor:
Intel 386 SX
Bus Interface:
ISA
Form Factor:
Full-Length ISA Expansion Card
Hardware Revision:
Rev A
Year / Era:
1990 (Copyright AST Research 1990)
Compatible With:
ISA-bus PC/XT/AT compatible systems
Chipset / Controller:
Intel 386 SX (visible on board)
Memory Type:
On-board RAM SIMMs (populated, quantity visible in photos)
Country/Region of Manufacture:
United States
Seller Notes:
Sold AS-IS for parts or repair. No functionality guarantee.
Condition Notes:
AST Research 202380 386 SX CPU RAM board, circa 1990. Used condition, complete with SIMM modules. Typical cosmetic wear, no damage visible. ISA connector intact. For collection or repair.
