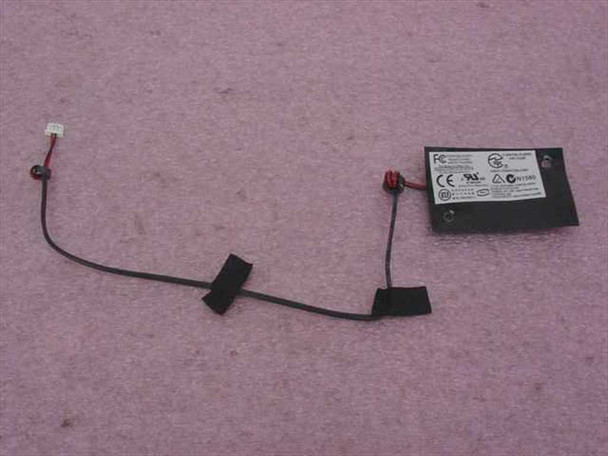

Askey V1456VQL-P1 Laptop Internal Modem Board FCC E188325 w/ Cable

Askey V1456VQL-P1 Laptop Internal Modem Board FCC E188325 w/ Cable

The Askey V1456VQL-P1(INT) is a compact internal modem board designed for installation inside laptop computers. It connects via a short proprietary cable and ribbon connector to the laptop's mainboard and phone-line port, providing analog dial-up modem functionality. The label on the module clearly identifies it as an Askey Computer Corp. product rated 5Vdc at 300mA maximum, certified to FCC Part 68 standards with a Ringer Equivalence Number (REN) of 0.7B.

Specifications & What's Included

• Manufacturer: Askey Computer Corp.
• Model: V1456VQL-P1(INT)
• Secondary model / part number: A99-1224JP
• FCC ID: H8NTAI-40049-M5-E
• FCC Registration Number (REN): E188325 / REN 0.7B (FCC Part 68)
• Part number: T-A23-01-0190
• Power rating: 5Vdc, 300mA Max
• Hardware revision: HW01
• Manufactured: 2001, Made in China
• Certifications: FCC, CE, UL (cUL), MIC, BSMI (Taiwan)
• Form factor: internal laptop modem module (mini card format)
• Connectors: proprietary 2-pin white wire connector (power/signal lead) + multi-pin ribbon-style board connector
• Includes: modem board with attached cable as pictured

Applications

Internal laptop modem boards like the V1456VQL-P1 were standard components in late-1990s and early-2000s notebook computers, providing V.90/V.92-era dial-up modem capability for connecting to the public switched telephone network (PSTN). The "V1456" designation references the V.14 and 56K modem standard family. These miniaturized modem modules were soldered or cabled directly into the laptop chassis and connected to the RJ-11 phone jack on the system's I/O panel. Today this type of module is primarily sought as a replacement part for vintage or legacy laptops of the same era — particularly units from manufacturers who sourced Askey modem sub-assemblies — or for retro computing hobbyists maintaining period-correct machines.
