ASI Thermo Scientific imPULSE 100L Bioprocess Single-Use Insulated Mixer

ASI Thermo Scientific imPULSE 100L Bioprocess Single-Use Insulated Mixer IM001001114BA1MBDP

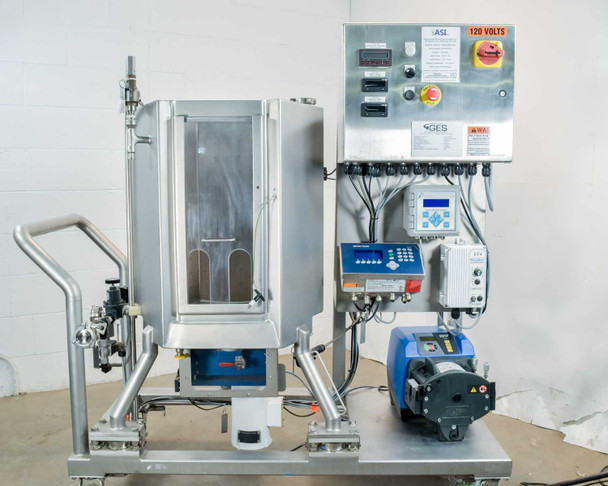

The Advanced Scientifics (ASI) imPULSE is a 100-liter single-use bioprocess mixing system designed for pharmaceutical and biopharmaceutical manufacturing. Originally manufactured by Advanced Scientifics Inc. (ASI) of Millersburg, PA — now part of Thermo Fisher Scientific — the imPULSE integrates a jacketed and insulated stainless steel vessel with a comprehensive suite of process instrumentation and automation on a mobile cart platform. This system is configured for single-use bag mixing, with an ASME-rated jacket and full process monitoring capability.

Specifications & What's Included

• Manufacturer: Advanced Scientifics Inc. (ASI) / Thermo Scientific, Millersburg, PA 17061
• Model: imPULSE — MPN: IM001001114BA1MBDP-12M
• Tank Tag: 30-VE-1011
• Tank Serial Number: 33191 | System Serial: 51318-R33191
• Capacity: 100 Liters
• Motor Power: 120V / 1-Phase / 60Hz
• Control Power: 120V / 1-Phase / 60Hz
• Operating Temperature: -5°C to 50°C
• ASME Jacket Pressure Rating: 75 PSIG

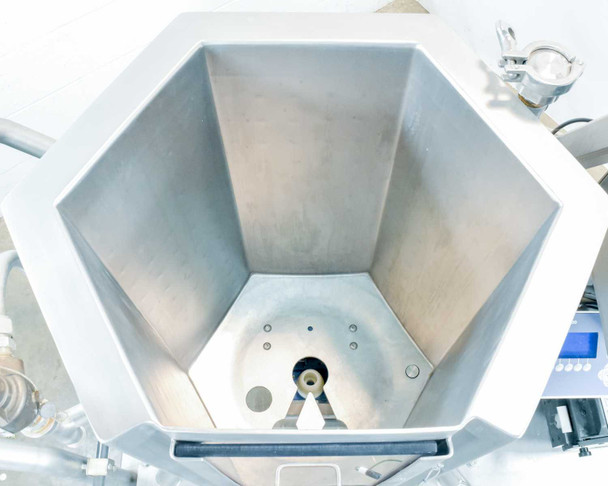

• Vessel Material: 304L Stainless Steel (shell and head)
• Shell wall: 0.187 in. | Head: 0.187 in.
• Jacket shell: 14 GA | Head: SCH 40

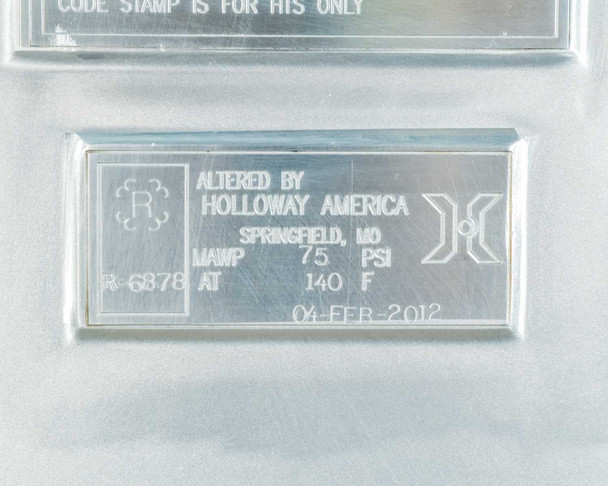

• Tank certification: Holloway America, Springfield, MO — ASME U/W stamp; altered R-6878, dated 04-FEB-2012
• Year Built: 2012

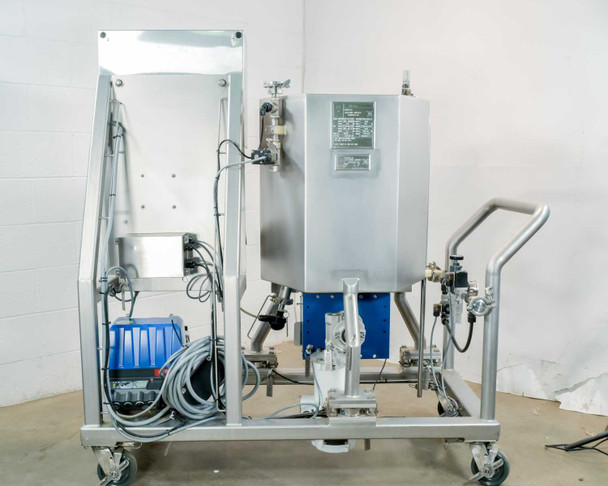

• Form Factor: Mobile cart / skid-mounted on heavy-duty locking casters
• Enclosure Rating: NEMA-4X / IP-65
• GES Automation Technology Control Panel — Control Panel #: 100-LMS-CP; Drawing: 1062-100LMS-020; Enclosure: NEMA-4X; Full load current: 19.0 A; Voltage: 120VAC; Phase/Freq: 1-Ph / 60Hz; SCCR: 5 kA

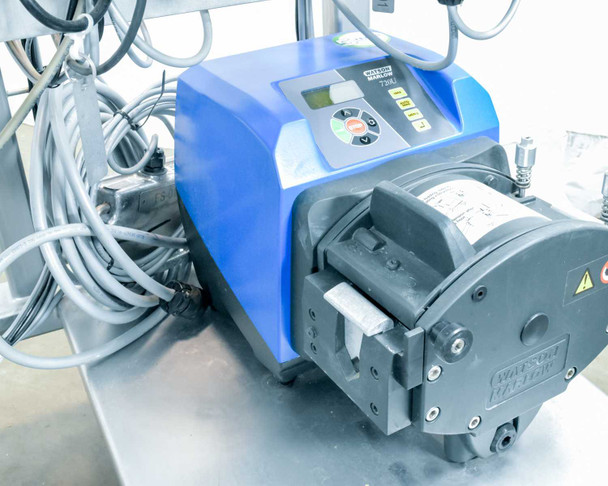

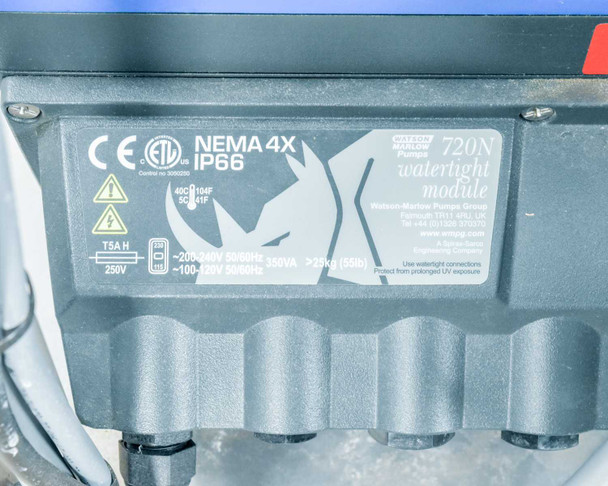

• Watson Marlow 720U Watertight Pump Module — peristaltic pump integrated on system
• Polestar DSP4000 MC Optical Process Monitor — multi-channel (4-channel) optical sensor monitor with blue LCD display, ESC/ENTER/AUX/MODE controls

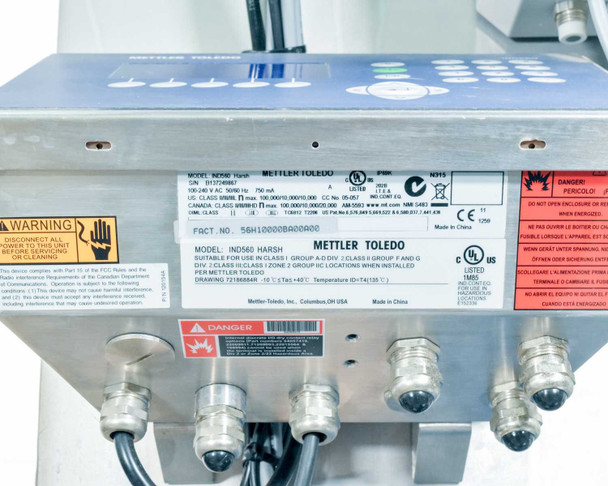

• Mettler Toledo IND560 HARSH Scale Terminal — Class I/II/III rated; 100–240V AC, 50/60Hz; suitable for Class I/II hazardous locations when properly installed

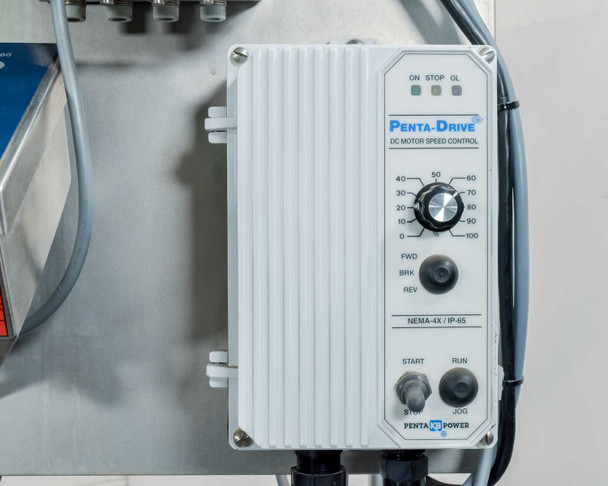

• Penta-Drive NEMA-4X / IP-65 DC Motor Speed Control — ON/STOP/OL indicators, speed range dial, FWD/BRK/REV switch, START/RUN/JOG controls

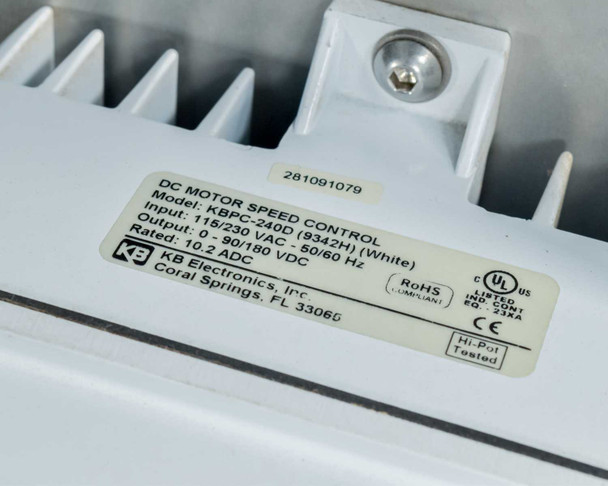

• KB Electronics KBPC-240D (9342H) DC Motor Speed Control — Input: 115/230 VAC, 50/60 Hz; Output: 0–90/180 VDC; Rated: 10.2 ADC; UL/CE/RoHS compliant; Coral Springs, FL
• Allen-Bradley 1606-XLS Power Supply — 24V DC / 5A output; Input: AC 100–240V

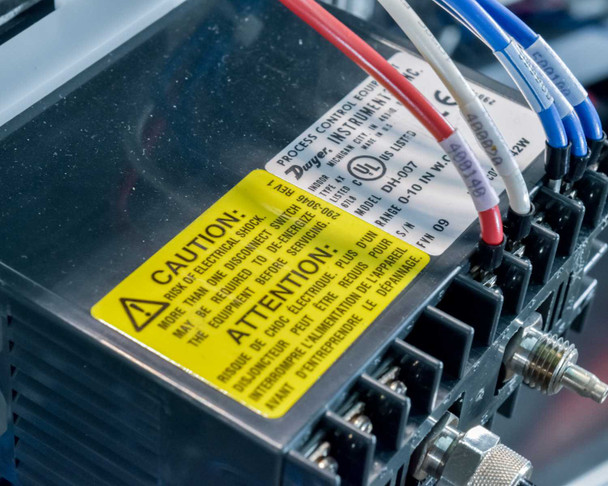

• Digi-Helic Differential Pressure Controller — Panel ID: PC400160
• Red Lion Mixer Speed Panel Meter — SI501160
• Red Lion Process Temp Panel Meter — TI501080

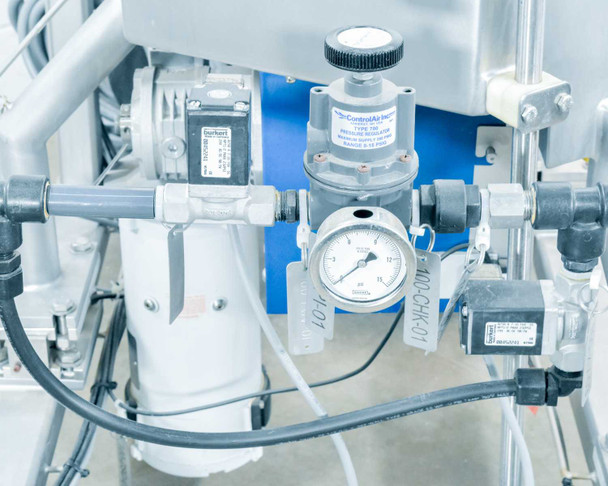

• Chalmers & Kubeck Inc. Flow Control — 2x 3/4 in. flow control valves
• Emergency stop (E-stop) mushroom button — visible on control panel
• System Power On / Off-Purge-Inflate selector knob on panel
• Patents: US 6,908,223 | US 6,923,567 | US 6,981,794
• UL listed

Applications

The ASI imPULSE single-use mixing system is used in biopharmaceutical and pharmaceutical manufacturing for buffer preparation, media preparation, and upstream bioprocess operations where single-use bags are employed instead of cleaned stainless steel vessels. Single-use mixing eliminates the cleaning validation burden associated with traditional fixed tanks, making these systems common in GMP biologics production facilities, contract development and manufacturing organizations (CDMOs), and vaccine manufacturing. The 100-liter scale is well suited to pilot-scale and small commercial-scale operations. The integrated optical process monitoring (Polestar DSP4000), gravimetric control (Mettler Toledo IND560), and GES automation panel allow operators to monitor and control critical process parameters — dissolved oxygen, turbidity, weight, temperature, and agitation speed — in a single skid footprint. The mobile cart design allows the system to be repositioned within a manufacturing suite, which is a key advantage in flexible multi-product facilities. These systems are used widely with single-use bag suppliers in regulated pharmaceutical manufacturing environments.
