Ascom Timeplex LR29607 TIME/LAN Access Router 1-Port Ethernet 100-240V

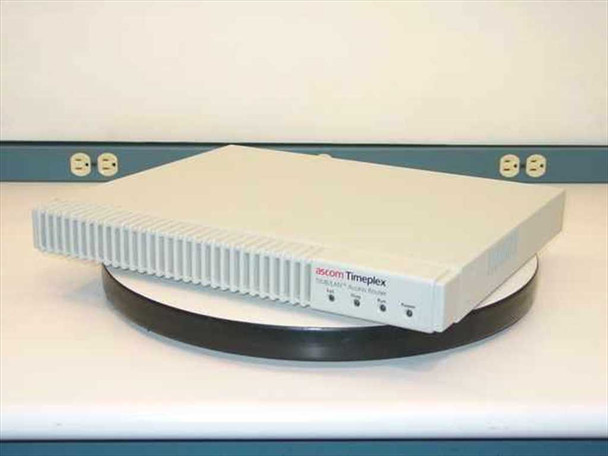

The Ascom Timeplex LR29607 is a TIME/LAN Access Router designed to integrate LAN and WAN networking functions in a single compact unit. Manufactured by Ascom Timeplex in Hackensack, NJ, USA, the LR29607 provides one Ethernet port for LAN connectivity along with serial console and remote management ports for configuration and monitoring. Front-panel LED indicators — Fail, Diag, Run, and Power — give at-a-glance status information, while rear-panel OP, TX, and RX LEDs report interface activity.
Specifications & What's Included
- Model: LR29607 (TIME/LAN Access Router)
- Manufacturer: Ascom Timeplex, Hackensack, NJ — Made in USA
- LAN Interface: 1-Port Ethernet (Interface 1, DB-15 connector)
- Console Port: DB-9 serial (rear panel)
- Remote Port: DB-9 serial (rear panel)
- Front-panel status LEDs: Fail, Diag, Run, Power
- Rear-panel interface LEDs: OP, TX, RX, RUN
- Power Input: 100–120V / 200–240V AC, 2A / 1A, 50/60 Hz (universal input)
- Power connector: IEC C14 inlet with rocker on/off switch
- Certifications: UL Listed 416F (EDP Equipment), CSA
- Form Factor: Desktop (also suitable for rackmounting)
- Unit only — no cables or accessories included
Applications
The Ascom Timeplex TIME/LAN Access Router was part of Timeplex's enterprise WAN access product line, designed to connect LAN segments across wide-area networks in corporate and campus environments during the 1990s. Timeplex, later acquired by Ascom, was a well-regarded manufacturer of multiplexers and WAN access equipment used in private corporate networks, financial institutions, and telecommunications-intensive organizations. The LR29607 was used in environments where LAN-to-WAN bridging or routing was needed alongside integrated management via serial console, making it suitable for branch-office WAN connectivity. These units are sought today by organizations maintaining legacy Timeplex network infrastructure, as well as collectors and engineers working with 1990s-era WAN networking equipment.
This Ascom Timeplex LR29607 TIME/LAN Access Router has been inspected and appears to be in good used condition. The chassis is clean with only light shelf wear. The front panel LEDs and rear port connectors appear intact and undamaged. The unit was pulled from a working environment. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Ascom Timeplex |
Model: |
LR29607 |
MPN: |
LR29607 |
Type: |
TIME/LAN Access Router |
SKU: |
14857 |
Number of Ports: |
1-Port Ethernet |
Interface Type: |
Ethernet, Console (DB-9), Remote (DB-9) |
Console Port: |
DB-9 Serial |
Remote Port: |
DB-9 Serial |
Interface 1 Connector: |
DB-15 (Interface 1) |
Status Indicators: |
Fail, Diag, Run, Power (front); OP, TX, RX, RUN (rear) |
Power Requirements: |
100-120 / 200-240V AC, 2A/1A, 50/60Hz |
Form Factor: |
Desktop / Rackmountable |
Country/Region of Manufacture: |
United States |
Certifications: |
UL Listed 416F EDP Equipment, CSA |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; no accessories included. Console and Remote ports present on rear. |
Condition Notes: |
Ascom Timeplex LR29607 TIME/LAN Access Router. Used, inspected, in good condition. Pulled from a working environment. Chassis is clean with light shelf wear. Ports and LEDs intact. Please contact us with any questions. |
