Description
ASCO Pneumatic 10900001 4-Solenoid Valve Manifold 110VAC IP65 400125-087

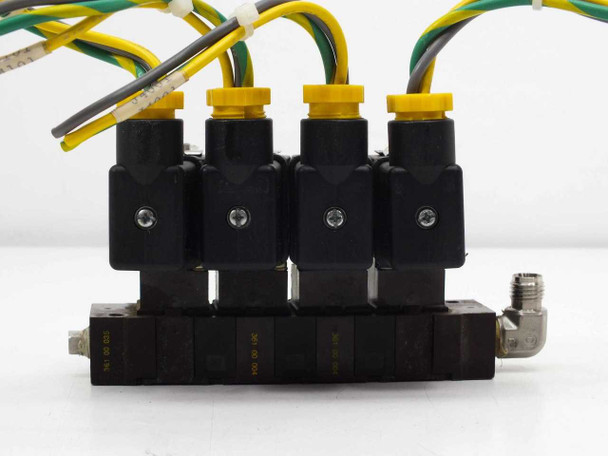

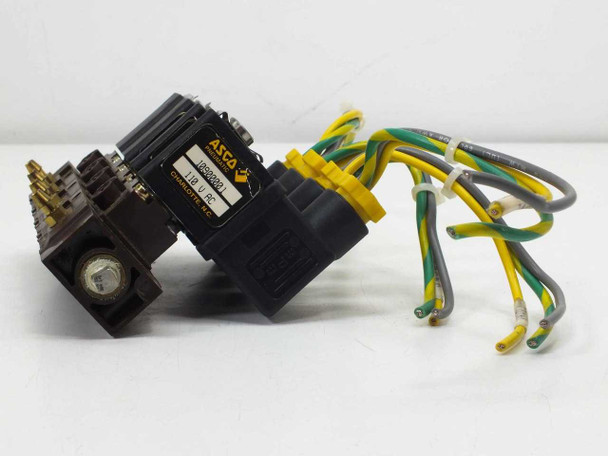

This is an ASCO Pneumatic 4-solenoid valve manifold assembly, part number 10900001 (reference 400125-087). The assembly consists of four individual solenoid valve coils mounted on a common manifold block, wired through a shared harness with yellow push-to-connect pneumatic fittings on each coil. ASCO (Automatic Switch Company) solenoid valves are a widely used standard in industrial pneumatic and fluid control systems, and this manifold configuration allows multiple pneumatic circuits to be controlled from a single compact assembly.
Specifications & What's Included

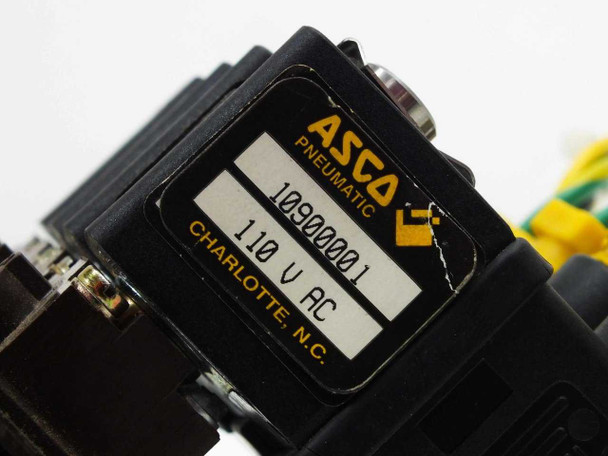

- Manufacturer: ASCO Pneumatic (Charlotte, NC, USA)
- Part Number: 10900001
- Reference Number: 400125-087
- Coil Model: 430 04419
- Number of Solenoid Valves: 4, mounted on common manifold block
- Supply Voltage: 110V AC (115V/50Hz or 120V/60Hz)
- Power Consumption: 2.5W per coil
- Duty Cycle: 100% continuous
- Enclosure Rating: IP65
- CE marked

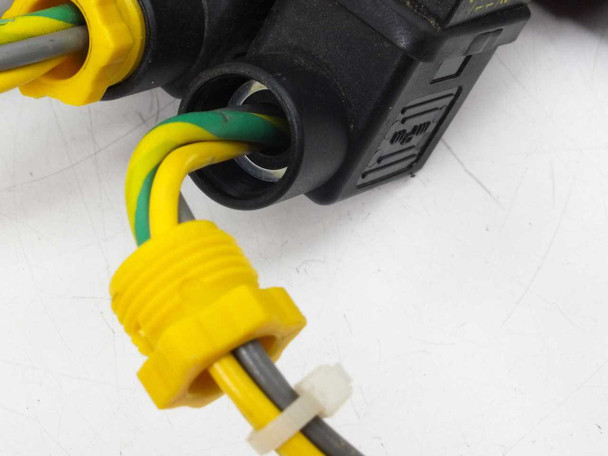

- Pneumatic connections: yellow push-to-connect fittings on each coil body
- Manifold port: elbow-style pneumatic fitting on manifold end
- Wiring: hardwired leads — green/yellow, gray, and yellow conductors visible in harness
- Includes: manifold assembly with all four coils, wiring harness, and push-to-connect fittings as shown
Applications
ASCO solenoid valve manifolds are standard components in industrial pneumatic control systems, used wherever multiple pneumatic actuators, cylinders, or process lines need to be switched from a single control point. Manifold-mounted configurations like this are common in automated assembly equipment, semiconductor process tools, packaging machinery, robotics, and general factory automation — anywhere a compact, multi-circuit pneumatic control block saves installation space over individual valve stations. The IP65 rating makes this assembly suitable for wash-down or dusty industrial environments. ASCO has been a leading supplier of solenoid valves to North American industry for decades, and their valve coils and manifold bodies are widely used in OEM equipment across chemical processing, food and beverage, automotive manufacturing, and laboratory automation.
This ASCO Pneumatic 10900001 4-solenoid valve manifold has been inspected and appears to be in good used condition. It was pulled from a working environment where it was in active service. The coil bodies, manifold block, and push-to-connect pneumatic fittings all appear intact. The wiring harness shows normal wear consistent with field use. The port fitting on the manifold end shows minor surface oxidation, as visible in the photos. No cracks, breaks, or missing components are noted. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ASCO |
Model: |
10900001 |
MPN: |
10900001 |
Secondary Model: |
400125-087 |
Type: |
Pneumatic Solenoid Valve Manifold Assembly |
SKU: |
47690 |
Number of Valves: |
4 |
Voltage: |
110V AC |
Voltage Rating: |
115V 50Hz / 120V 60Hz AC |
Power Consumption: |
2.5W per coil |
Enclosure Rating: |
IP65 |
Coil Part Number: |
430 04419 |
Duty Cycle: |
100% |
Frequency: |
50Hz / 60Hz |
Manufacturer Location: |
Charlotte, NC, USA |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
4-solenoid manifold assembly with wiring harness; includes yellow push-to-connect fittings |
Application: |
Pneumatic control, industrial automation, fluid control systems |
Connector Type: |
Hardwired leads with yellow push-to-connect pneumatic fittings |
Form Factor: |
Manifold Block Assembly |
Condition Notes: |
ASCO Pneumatic 10900001 4-solenoid valve manifold. Inspected and in good used condition; pulled from a working environment. Coils, manifold, fittings, and wiring harness intact. Minor oxidation on port fitting. No missing parts. |
