Description

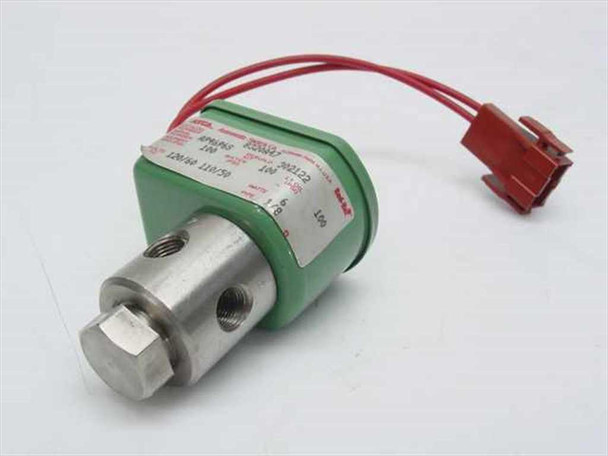

ASCO 8320A47 Solenoid Valve 1/8" 3-Way Normally Closed 120V AC BRZ Body
The ASCO 8320A47 is a 3-way, normally closed solenoid valve with a 1/8-inch NPT port and a bronze valve body, rated for general service applications. Designed and manufactured by ASCO Automatic Switch Co. (Florham Park, NJ), this valve uses a 120V AC / 60Hz coil (also rated 110V / 50Hz) and is pressure-rated at 100 PSI for both air/inert gas and water service. It connects via a standard red DIN-style plug connector.
Specifications & What's Included
- Manufacturer: ASCO Automatic Switch Co. (ASCO)
- Catalog / Model Number: 8320A47
- Valve Type: 3-Way, Normally Closed
- Port Size: 1/8 inch NPT
- Body Material: Bronze
- Service Type: General Service
- Coil Voltage: 120V AC (60 Hz) / 110V AC (50 Hz)
- Max Pressure — Air / Inert Gas: 100 PSI
- Max Pressure — Water: 100 PSI
- Electrical Connection: Red DIN-style plug connector with leads
- Rebuild Kit Reference: 302
- Includes: Valve with attached DIN wiring connector — no additional accessories
Applications
ASCO 8320-series solenoid valves are widely used in industrial fluid and pneumatic control systems to direct, stop, or divert the flow of air, water, inert gases, and light oils. A 3-way normally closed configuration means the valve blocks flow when the coil is de-energized and opens when power is applied — a common and safe default in process automation, machine control, and safety interlock circuits. These valves are found in manufacturing equipment, compressed-air systems, test benches, packaging machinery, and general industrial automation wherever reliable electrically-actuated flow control is needed. The 1/8-inch port size makes this unit suitable for smaller-diameter lines and instrumentation-scale pneumatic circuits. ASCO (Automatic Switch Company) has been a leading manufacturer of solenoid valves since the early twentieth century, and the 8320 series is one of their long-running general-service product lines.
This ASCO 8320A47 3-Way Solenoid Valve has been inspected and appears to be in good used condition. The bronze valve body and green coil housing show normal handling wear consistent with prior service use. The red DIN-style wiring connector is present and the leads are intact. It has not been powered up or tested at our facility, but it was pulled from a working environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ASCO |
Model: |
8320A47 |
MPN: |
8320A47 |
Type: |
3-Way Solenoid Valve |
SKU: |
26195 |
Valve Configuration: |
3-Way, Normally Closed |
Port Size: |
1/8 inch NPT |
Body Material: |
Bronze |
Voltage: |
120V AC / 110V AC |
Frequency: |
60 Hz / 50 Hz |
Max Pressure - Air/Inert Gas: |
100 PSI |
Max Pressure - Water: |
100 PSI |
Service Type: |
General Service |
Rebuild Kit: |
302 |
Electrical Connector: |
Red DIN-style plug connector |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Valve with attached red DIN-style wiring connector — no additional accessories included. |
Condition Notes: |
This ASCO 8320A47 3-Way Solenoid Valve is in good used condition with normal wear. Not powered or tested at our facility, but pulled from a working environment. DIN connector and leads intact. Please contact us with any questions. |
