Description
Asante MacCon CS 09-00098-12 Rev D ISA Ethernet NIC RJ-45 SMC Mac 10Base-T

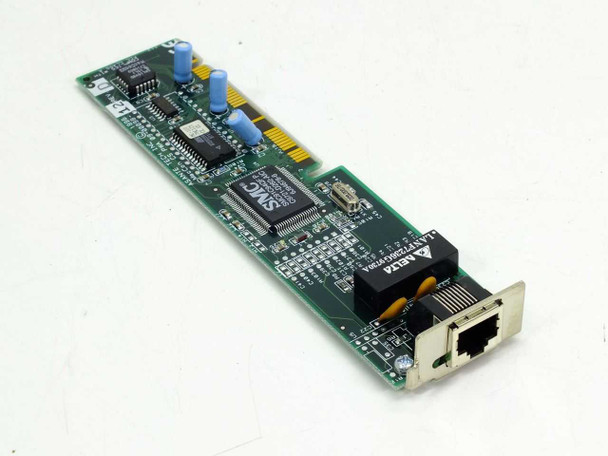

The Asante MacCon CS is an ISA-bus 10Base-T Ethernet network interface card designed for Apple Macintosh systems with ISA expansion slots. Manufactured by Asante Technologies in 1996, it provides a single RJ-45 10 Mbps Ethernet port and connects via the ISA edge connector. The board is built around an SMC Ethernet controller with an Atmel AT27C256 BIOS/firmware ROM and a GAL16V8D logic device.
Specifications & What's Included
- Manufacturer: Asante Technologies (Asante Tech Inc)
- Product Line: MacCon CS
- Part Number: 09-00098-12
- Revision: Rev D
- Year: 1996
- Bus Interface: ISA
- Ethernet Standard: 10Base-T (10 Mbps)

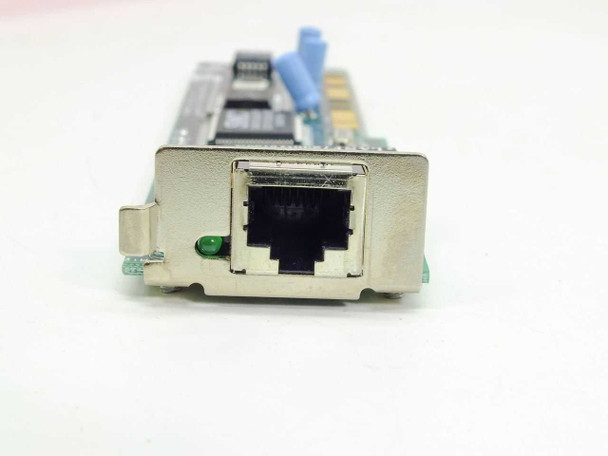

- Network Port: 1x RJ-45
- Main Chipset: SMC Ethernet controller
- BIOS/Firmware: Atmel AT27C256 (MC-10T, 9711)
- Logic Device: GAL16V8D
- Form Factor: ISA expansion card
- Included: Card only — no cables or accessories
Applications
The Asante MacCon CS was part of Asante's MacCon line of networking cards aimed at bringing Ethernet connectivity to Macintosh computers in the mid-1990s. It was designed for Mac models equipped with ISA expansion slots — typically LC-series and some Performa models that used the LC PDS or processor-direct slots with ISA compatibility bridges. In that era, 10Base-T over twisted-pair cabling was replacing older coaxial Ethernet (10Base-2/Thin Ethernet) as the standard for office and workgroup networking, and cards like the MacCon CS allowed Macs to connect to standard RJ-45 Ethernet hubs and switches. Today these cards are primarily sought by collectors and by users maintaining vintage Mac systems from the early-to-mid 1990s.
This Asante MacCon CS 09-00098-12 Rev D ISA Ethernet NIC has been visually inspected and appears to be in good used condition. The PCB is clean with no obvious damage, and the RJ-45 port and ISA edge connector both look intact. Some light handling wear is typical on pulled cards of this age. Note that NICs are not bench-tested at our facility, so functionality is not verified — please review all photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Asante |
Model: |
MacCon CS |
MPN: |
09-00098-12 |
Secondary Model: |
09-00098-12 Rev D |
Type: |
ISA Ethernet Network Interface Card (NIC) |
SKU: |
45755 |
Seller Notes: |
Card only — no cables or accessories included. |
Network Chipset: |
SMC |
BIOS/Firmware Chip: |
Atmel AT27C256 |
Interface: |
ISA |
Connector Type: |
RJ-45 |
Ethernet Standard: |
10Base-T |
Data Rate: |
10 Mbps |
Number of Ports: |
1x RJ-45 |
Compatible With: |
Apple Macintosh with ISA expansion (LC, Performa) |
Form Factor: |
ISA Card |
Hardware Revision: |
Rev D |
Country/Region of Manufacture: |
United States |
Year Manufactured: |
1996 |
Condition Notes: |
This Asante MacCon CS 09-00098-12 Rev D ISA Ethernet NIC has been visually inspected and appears to be in good used condition. PCB is clean; RJ-45 and ISA edge connector look intact. Not bench-tested. Please contact us with questions. |
